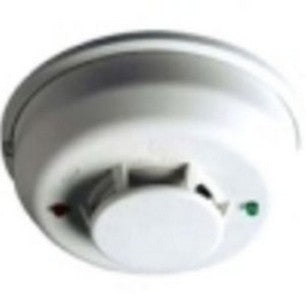

System Sensor 4WTR-B - Detector - I3 Series Detector, 4-Wire,
System Sensor 4WTR-B - Detector - I3 Series Detector, 4-Wire,

System Sensor 4WTR-B - Detector - I3 Series Detector, 4-Wire,

System Sensor System I3 W/Plug-In Base,12/24
Part Number: 674102
0 Review(s)
Write a Review
Availability:
$80.52
Retail Price:$88.57
Your Savings:$8.05(9%)
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

System Sensor 4WTR-B | i3 Series Detector, 4-wire, 12/24 V DC, Thermal, Relay, with Base

Installation ease: Throughout the i3 series, installation is simple with its installer-friendly base and plug-in design. The base accommodates a broad range of back box and direct mounting options and provides ample space for pre-wiring the device. To complete the installation, the i3 detector plugs into its base with a simple Stop-Drop ’N Lock action.

Intelligence: To reduce the likelihood of nuisance alarms, all i3 detectors are equipped with both drift compensation and smoothing algorithms. These capabilities minimize both short- and long-term causes of nuisance alarms, such as RF interference and dust accumulation. When connected to the 2W-MOD2 loop test/ maintenance module or an i3 Ready(TM) panel, 2 wire i3 detectors can generate a remote maintenance signal when in a maintenance or freeze trouble condition. To measure the sensitivity of any i3 detector, the SENS-RDR displays the reading, in terms of percent-per-foot obscuration, within seconds.

Instant inspection: i3 has red and green LEDs to simplify local status indication during power-up, standby, alarm, maintenance, and freeze trouble conditions. When in alarm, i3 sounder models generate an 85 dB temporal tone. If connected to the RRS-MOD reversing relay/synchronization module , all i3 sounders on the loop will activate when one detector is in alarm. The RRS-MOD also synchronizes i3 sounder output to ensure a clear audible signal.

Should the application call for differentiating between a local and a general alarm, the i3 line offers an isolated thermal model, which initiates a local alarm when smoke is detected, and a general alarm when the thermal sensor is activated.

System Sensor i3 sounder and relay smoke detectors apply the guiding principles of installation ease, intelligence, and instant inspection in a series of specialty conventional devices. Throughout the i3 series, installation is simple with its installer-friendly base and plug-in design. The base accommodates a broad range of back box and direct mounting options and provides ample space for pre-wiring the device. To complete the installation, the i3 detector plugs into its base with a simple Stop-Drop 'N Lock action.




https://www.alldataresource.com/assets/images_commscope/features.jpg

System Sensor - 4WTR-B - Features

  • 85 dB sounder
  • Form C relay
  • Isolated thermal sensor
  • Plug-in design (base included)
  • In-line terminals
  • Flexible mounting options
  • Stop-Drop ’N Lock(TM) attachment to the base
  • Removable cover and chamber
  • Remote maintenance signaling
  • Drift compensatiomoothing algorithms
  • Simplified sensitivity measurement
  • Dual-color LEDs
  • 85 dB sounder
  • Form C relay
  • Isolated thermal sensor
  • Plug-in design (base included)
  • In-line terminals
  • Simplified sensitivity measurement
  • Stop-Drop 'N Lock attachment to the base
  • Removable cover and chamber
  • Remote maintenance signaling
  • Drift compensation and smoothing algorithms
  • General Information
  • Name: System Sensor 4WTR-B Photoelectric i3 Series Smoke Detector, 4-Wire, Thermal Sensor, Form C Relay, White, Honeywell International, Inc, System Sensor
  • Category: System Sensor, Fire, Intrusion, Fire Detection Devices, Life Safety Devices, Smoke & Heat Detectors, Smoke & Heat Detectors
  • UPC Code: 783863019999
  • Country of Origin: Mexico. Country of origin is subject to change.



https://www.alldataresource.com/assets/images_commscope/product_classification.jpg

System Sensor - 4WTR-B - Product Categories

  • Security
  • Fire Alarm Systems
  • Smoke and Heat Detection



https://www.alldataresource.com/assets/images_commscope/specs.jpg

System Sensor - 4WTR-B - Specifications

UNSPSC Code46171600
Brand NameSystem Sensor
Connectivity TechnologyWired
ManufacturerHoneywell International, Inc
Manufacturer Part Number4WTR-B
Product Model4WTR-B
Product Namei3 4WTR-B Smoke Detector
Product Seriesi3
Product TypeSmoke Detector
Weight (Approximate) (g)200



https://www.alldataresource.com/assets/images_tripplite/physical_specifications.jpg

System Sensor - 4WTR-B - Physical Characteristics

ColorWhite
Diameter (mm)134
Form FactorCeiling Mount
Height2"
Height (mm)50.8
Technical Information-
Detectable MediumSmoke
Sensing TechnologyPhotoelectric
Sensor TypePhotoelectric



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

System Sensor - 4WTR-B - Documents and Downloads

System Sensor 4WTR-B Specification SheetClick to View
System Sensor 4WTR-B Product Data SheetClick to View
System Sensor 4WTR-B User ManualClick to View
System Sensor 4WTR-B Manufacturer BrochureClick to View
