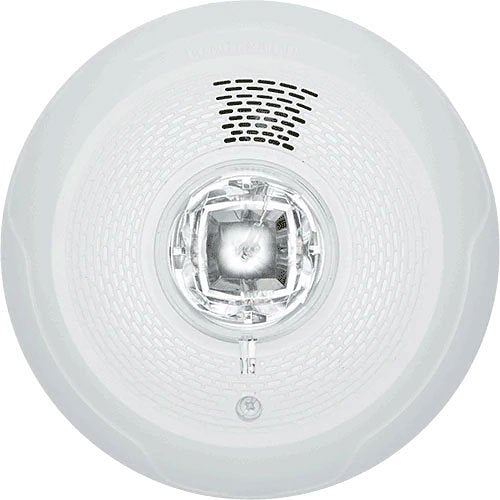

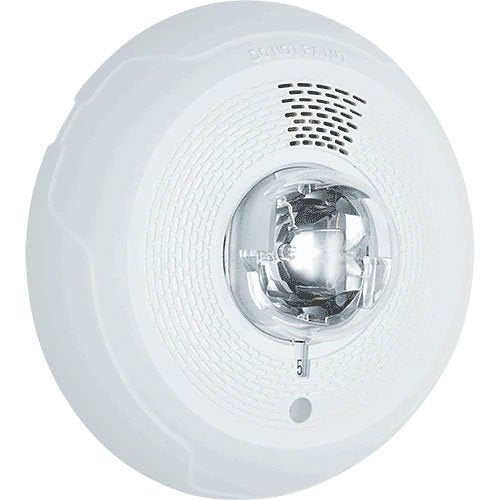

System Sensor CHSCWL - Fire Signal - L-Series Chime Strobe White
Description
Description
The System Sensor L-Series product line of wall and ceilingmount chimes and chime strobes include a variety of features that increase their application versatility while simplifying the installation. With white and red plastic housings, System Sensor L-Series can meet virtually any application requirement.
Selectable-output chimes and chime/strobes are private mode notification appliances used to alert trained personnel to investigate possible emergency situations and to take appropriate action. Security guard and nurse workstations are ideal locations for chime products.
All devices feature plug-in design with minimal intrusion into the back box, making the installation fast and foolproof while virtually eliminating costly and time-consuming ground faults. Installers can easily adapt devices to a wide range of application requirements using field-selectable candela settings, automatic selection of 12-or-24 volt operation, and a rotary switch for chime tones and two volume selections.
L-Series, white, ceiling-mountable, clear lens, chime strobe that is unmarked. Selectable strobe settings: 15, 30, 75, 95, 115, 150, and 177 cd.
System Sensor - CHSCWL - Features
- Updated Modern Aesthetics
- Plug-In Design with Minimal Intrusion into the Back Box
- Mounting Plate Shorting Spring Feature Checks Wiring Continuity Before Device Installation
- Captive Mounting Screwtamper-Resistant Construction
- Automatic Selection of 12r 2
- Updated modern aesthetics
- Plug-in design with minimal intrusion into the backbox
- Mounting plate shorting spring feature checks wiring continuity before device installation
- Captive mounting screw
- Tamper-resistant construction
- Field-selectable candela settings for ceiling-mount devices: 15, 30, 75, 95, 115, 150, 177
- Automatic selection of 12 or 24V operation at 15 and 30 candela
- Rotary switch for tone and volume selections
- Five selectable tones with high and low volume settings
- Electrically compatible with legacy SpectrAlert and SpectrAlert
- General Information
- Name: System Sensor CHSCWL L-Series Selectable Output Chime Strobe, Ceiling Mount, White, Honeywell International, Inc, System Sensor
- Category: System Sensor, Fire, Fire Notification Appliances, Chime Strobes
- UPC Code: 783863047671
- Country of Origin: Mexico. Country of origin is subject to change.
Specifications
Specifications
System Sensor - CHSCWL - Product Categories
- Security
- Fire Alarm Systems
- Fire Notification
System Sensor - CHSCWL - Specifications
| Device Type | Horn / Strobe |
|---|---|
| UNSPSC Code | 46171600 |
| Brand Name | System Sensor |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | CHSCWL |
| Product Functions | Alarm |
| Product Model | CHSCWL |
| Product Name | L CHSCWL Security Strobe Light |
| Product Series | L |
| Product Type | Chime Strobe |
System Sensor - CHSCWL - Physical Characteristics
| Application/Usage | Indoor |
|---|---|
| Color | White |
| Form Factor | Ceiling Mount |
| Height | 2.5" |
| Height (mm) | 63.5 |
| Product Color | White |
| Technical Information | - |
| Alarm Type | Audible, Visual |
