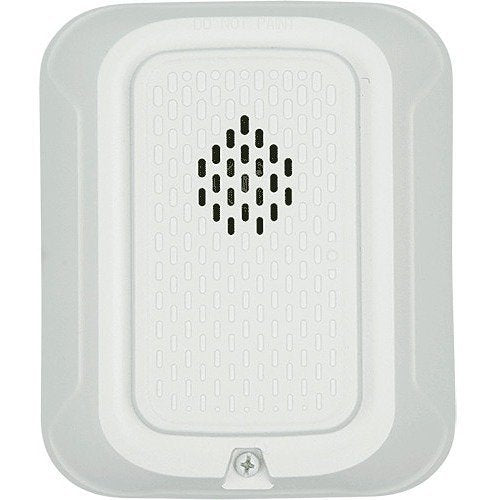

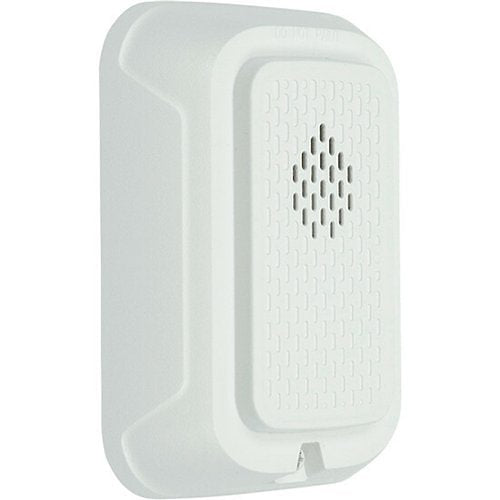

System Sensor CHWL | L-Series Selectable Output Chime, Wall Mount, White

The System Sensor L-Series product line of wall and ceilingmount chimes and chime strobes include a variety of features that increase their application versatility while simplifying the installation. With white and red plastic housings, System Sensor L-Series can meet virtually any application requirement.

Selectable-output chimes and chime/strobes are private mode notification appliances used to alert trained personnel to investigate possible emergency situations and to take appropriate action. Security guard and nurse workstations are ideal locations for chime products.

All devices feature plug-in design with minimal intrusion into the back box, making the installation fast and foolproof while virtually eliminating costly and time-consuming ground faults. Installers can easily adapt devices to a wide range of application requirements using field-selectable candela settings, automatic selection of 12-or-24 volt operation, and a rotary switch for chime tones and two volume selections

L-Series, white, wall-mountable, chime that is unmarked.




https://www.alldataresource.com/assets/images_commscope/features.jpg

System Sensor - CHWL - Features

  • Updated Modern Aesthetics
  • Plug-In Design with Minimal Intrusion into the Back Box
  • Mounting Plate Shorting Spring Feature Checks Wiring Continuity Before Device Installation
  • Captive Mounting Screwtamper-Resistant Construction
  • Automatic Selection of 12r 2
  • Plug-in design with minimal intrusion into the back box
  • Tamper-resistant construction
  • Updated modern aesthetics
  • before device installation
  • Captive mounting screw
  • Tamper-resistant construction
  • Field-selectable candela settings:
  • Wall: 15, 30, 75, 95, 110, 135, 185
  • Ceiling: 15, 30, 75, 95, 115, 150, 177
  • Automatic selection of 12- or 24-volt operation
  • General Information
  • Name: System Sensor CHWL L-Series Selectable Output Chime, Wall Mount, White, Honeywell International, Inc, System Sensor
  • Category: System Sensor, Fire, Fire Notification Appliances, Chimes
  • UPC Code: 783863047626
  • Country of Origin: Mexico. Country of origin is subject to change.



https://www.alldataresource.com/assets/images_commscope/product_classification.jpg

System Sensor - CHWL - Product Categories

  • Security
  • Fire Alarm Systems
  • Fire Notification



https://www.alldataresource.com/assets/images_commscope/specs.jpg

System Sensor - CHWL - Specifications

Device TypeBell
UNSPSC Code46171600
Brand NameSystem Sensor
ManufacturerHoneywell International, Inc
Manufacturer Part NumberCHWL
Product ModelCHWL
Product NameL CHWL Doorbell
Product SeriesL
Product TypeDoorbell



https://www.alldataresource.com/assets/images_tripplite/physical_specifications.jpg

System Sensor - CHWL - Physical Characteristics

Depth1.3"
Depth (mm)31.75
Height5.6"
Height (mm)142.24
Product ColorWhite
Width4.7"
Width (mm)119.38



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

System Sensor - CHWL - Documents and Downloads

System Sensor CHWL Specification SheetClick to View
System Sensor CHWL Product Data SheetClick to View
System Sensor CHWL Installation InstructionsClick to View
System Sensor CHWL Manufacturer BrochureClick to View
