System Sensor COSMO-4W | Carbon Monoxide Smoke Detector 4W
Integration: The i4 Series combines CO and smoke detection into one device, requiring less wiring and fewer back boxes than two separate devices. The i4 Series is compatible with i3 (2WTA-B or 4WTA-B), so an attractive CO monitoring solution can easily be retrofitted into existing i3 installations. The i4 Series CO cell can be easily replaced at end-of-life, resulting in a much lower life cost than having to replace the entire detector.
Installation ease: The i4 Series Combination CO/Smoke detector requires less wiring than two separate CO and smoke devices. Installers can pre-wire its plug-in base, while its large wire-entry port and in-line terminals provide ample room for neatly routing wiring. The base accommodates several back box options and also direct mounts using drywall anchors. The i4 head plugs into the base with a simple Stop-Drop ’N Lock(TM) action. When the detector’s CO cell reaches end-of-life, it can be easily replaced in the field without a tool.
Intelligence: With the help of the module, the i4 Series transmits distinct CO and smoke signals, allowing appropriate response from the central monitoring station. Intelligent features, such as drift compensation and smoothing algorithms, reduce nuisance alarms.
Instant inspection: The i4 Series LEDs enable instant inspection of detector status signaling normal/standby condition, alarm condition, maintenance/trouble condition or functional test mode. 2-wire devices allow loop testing via the EZ Walk feature where wiring can easily be verified by checking the LED status at each detector. Smoke sensitivity can be easily measured using the wireless SENSRDR device. CO cell functionality can also be quickly validated in the field with canned CO per NFPA 720: 2009 requirem ents using the detector’s RealTest functionality.

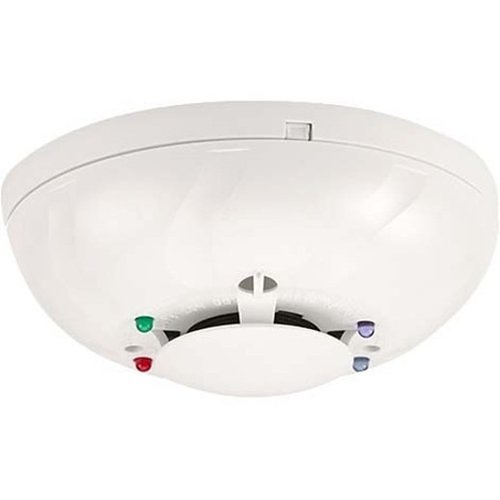

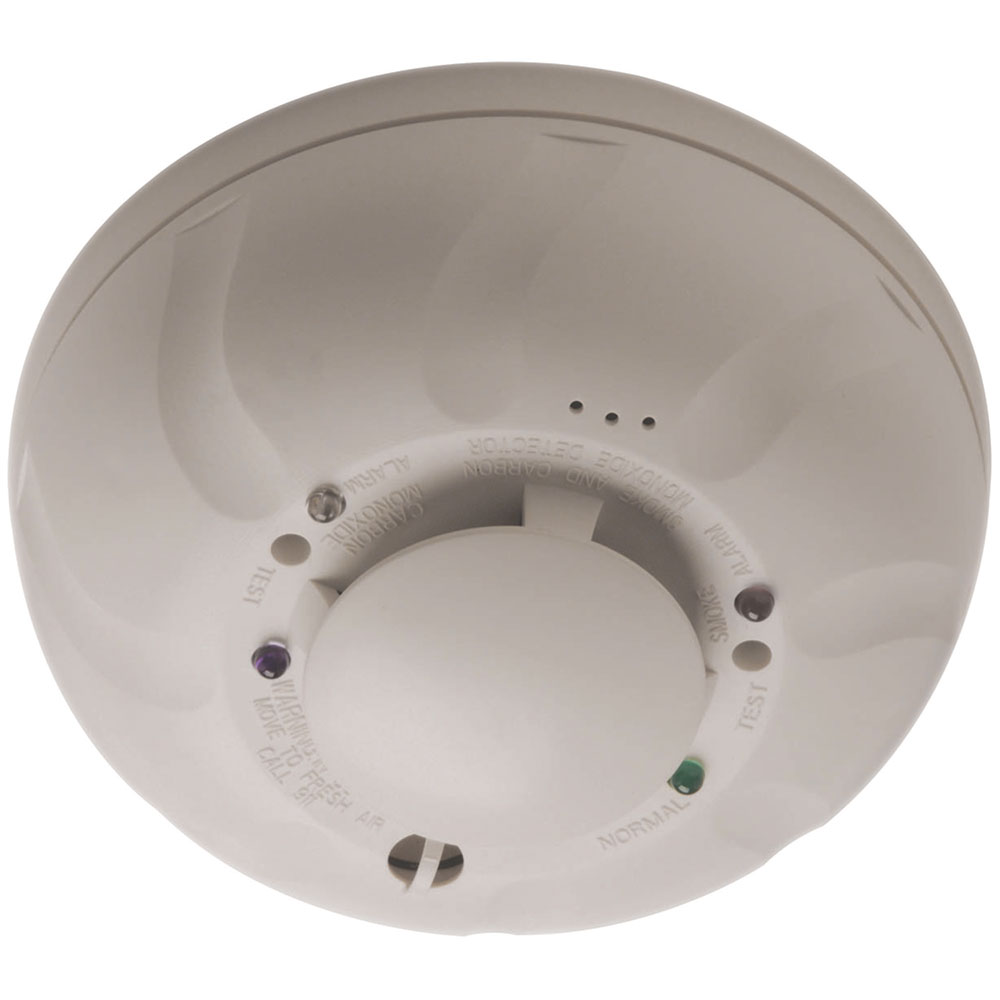

The best-in-class System Sensor COSMO-4W i4 Series combination CO/Smoke Detector is a 4-Wire carbon monoxide (CO) and smoke detection technology in a single, system-connected device.
The i4 Series LEDs enable instant inspection of detector status signaling normal/standby condition, alarm condition, maintenance/trouble condition or functional test mode. 2-wire devices allow loop testing via the EZ Walk feature where wiring can easily be verified by checking the LED status at each detector.
Smoke sensitivity can be easily measured using the wireless SENSRDR device. CO cell functionality can also be quickly validated in the field with canned CO per NFPA 720: 2009 requirements using the detectors RealTest functionality
The i4 Interface Module connects up to 12 detectors to a wide range of control panels using only 2 to 3 zones. It also interconnects the devices, so when one device alarms, they all sound.
The i4 module allows up to 12 i4 Series or compatible i 3 Series smoke detector models to be integrated into a fire alarm panel using only 2 to 3 zones: a smoke zone, a CO zone and an optional trouble zone. Detectors sound Temp 3 for smoke and Temp 4 for CO events. The i4 module can be used to alarm all sounders in compatible detectors for smoke and CO events. When one detector detects smoke or CO and goes into alarm, all connected detectors alarm, offering the highest level of warning to the homeowner.
The i4 Series Interface Module mounts to a 411/16-inch square back box for quick and easy installation. Terminal blocks with durable SEMS screws ensure a reliable connection. It also has pre-drilled holes for easy mounting inside a metal enclosure.
System Sensor - COSMO-4W - Features
- Single device for CO and smoke detection that uses less wiring and fewer junction boxes
- Compatible with a wide range of control panels with the use of the required i4 Interface Module.
- Sends distinct smoke and CO signals to the panel
- Sounds Temporal 3for smoke and Temporal 4 for CO
- Built-in 85dB sounder
- LEDs display both CO and smoke status
- External IR LED provides extended range sensitivity testing
- Versatile mounting allows for wall or ceiling placement
- Easily replaceable electrochemical CO celith 6-year end-of-life timer that signals the panel and chirps to alert the homeowner
- RealTest enables functional test using canned CO
- Drift compensation and smoothing algorithms provide false alarm immunity
- Compatible with SENS-RDR sensitivity teste
- Full agency compliance with UL 268 and UL 2075
- Technical Specifications:
- System Voltage: 12/24 VDC
- Minimum/Maximum Voltage: 8.5V/35V
- Maxmum Current: Startup - 200 uA, Standby - 40 uA
- Maximum Alarm Current: 50 uA
- Operating Temperature Range: 0 - 50 C (32 - 122 F)
- Operating Humidity Range: 20-95% RH
- Dimensions: 5.5" D x 2.5" H
- Weight: 9.2 oz (261 g)
- Wire Gauge Acceptance: Min: 22 AWG Max: 14 AWG
- 4-wire module is compatible with COSMO-4W combination detectors and 4WTA-B smoke detectors
- Easily integrates up to 12 compatible detectors to a wide range of control panels
- Sends distinct smoke and CO signals from i4 detectors to the panel
- LED indication shows when a detector on the loop requires cleaning or maintenance (2-wire detectors only)
- Initiates the EZ Walk loop test (2-wire detectors only)
- Module interconnects the sounders of all devices connected to it. No RSS-MOD is required. Optional trigger inputs are provided to sound multiple modules.
- General Information
- Name: System Sensor COSMO-4W i4 Series, 4-Wire CO and Smoke Combination Detector, Honeywell International, Inc, System Sensor
- Category: System Sensor, Fire, Intrusion, Fire Detection Devices, Life Safety Devices, Smoke & CO Detectors, Smoke & CO Detectors
- UPC Code: 783863044380
- Country of Origin: Montserrat. Country of origin is subject to change.
- The i4 Interface Module allows i4 and compatible i3 smoke detector models (2WTA-B and 4WTA-B) to communicate with any listed fire alarm control panel capable of utilizing this module.
- The i4 Interface Module provides LED status indication for the loop, displaying normal operation, loop wiring fault, smoke events, smoke maintenance (2-wire only), CO events, and CO maintenance/end-of-life.
System Sensor - COSMO-4W - Product Categories
- Security
- Fire Alarm Systems
- Smoke and Heat Detection
System Sensor - COSMO-4W - Specifications
| UNSPSC Code | 46171600 |
| Brand Name | System Sensor |
| Connectivity Technology | Wired |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | COSMO4W |
| Product Name | Carbon Monoxide (CO)/Smoke Detector |
| Product Series | i4 |
| Product Type | Gas/Smoke Detector |
| Weight (Approximate) (g) | 260.816 |
System Sensor - COSMO-4W - Physical Characteristics
| Color | White |
| Diameter (mm) | 139.7 |
| Form Factor | Ceiling Mount |
| Height | 2.5" |
| Technical Information | - |
| Detectable Gas | Carbon Monoxide |
| Detectable Medium | Fire, Gas |
| Sensing Technology | Electrochemical, Photoelectric |
| Sensor Type | Photoelectric |
