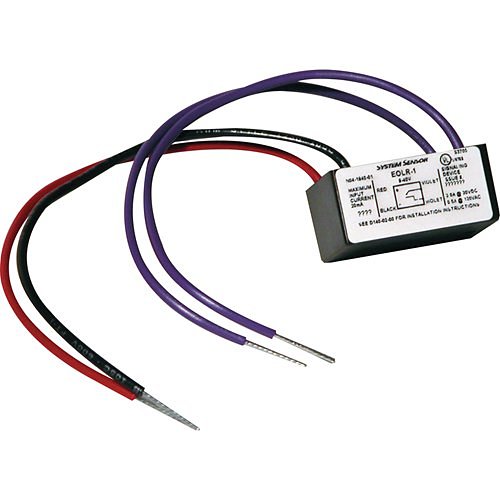

System Sensor EOLR-1 - Relay - Relay, Spst End Of Line
Description
Description
Model EOLR-1 is an epoxy encapsulated, single-pole single-throw, normally open relay that can be used as an end of line device in fire alarm systems, e.g. to supervise power supplies.
System Sensor’s multi-voltage conventional relays are used for high-current switching applications such as fan and damper assembly control, door control, air handling unit controls, and other types of system interfacing.
Model EOLR-1 is an epoxy encapsulated single pull single throw (SPST) normally open relay that is activated by 9 to 40 VDC. This relay can be used as an end of line device in fire alarm systems, e.g., to supervise power supplies.
System Sensor - EOLR-1 - Features
- Multi-voltage operation
- Activation LEDs
- Easy and flexible installation
- Reliable and robust design
- Multipurpose field installations
- Multi-voltage relays with terminal strip field wiring connections, mounting track, and hardware for R-10T/20T and R-144T
- Removable front cover on steel enclosure for R-10E/R-20E and R-14/R-24E, which mount inside the enclosure
- LED viewing hole on top of the steel enclosure’s cover
- Extra pair of wires for redundant power input on PR-3
- Terminal strip field wiring conntions, mounting track, and hardware
- Potted with pigtail
- Epoxy encapsulated
- Single-pole single-throw
- Humidity Range 10 – 93% RH
- Wire Length 8? minimum
- Contact Ratings 120 VAC: 0.5 A max. (resistive load)
- 30 VDC: 3 A max. (resistive load)
- General Information
- Name: System Sensor EOLR-1 End-of-Line Epoxy Encapsulated (SPST) Relay, Honeywell International, Inc, System Sensor
- Category: System Sensor, Fire, Batteries & Power Supplies, Fire Relays & Power, Circuit Breakers, Fuses & Relays, Relays, Relays
- UPC Code: 783863024597
- Country of Origin: Mexico. Country of origin is subject to change.
Specifications
Specifications
System Sensor - EOLR-1 - Product Categories
- Hardware
- Tools and Supplies
- Miscellaneous
System Sensor - EOLR-1 - Specifications
| UNSPSC Code | 46171600 |
|---|---|
| Brand Name | Fire-Lite |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | EOLR-1 |
| Product Model | EOLR-1 |
| Product Name | EOLR-1 Power Supervison Relay |
| Product Type | Relay |
System Sensor - EOLR-1 - Physical Characteristics
| Depth | 1.2" |
|---|---|
| Depth (mm) | 30.988 |
| Height | 0.9" |
| Height (mm) | 23.114 |
| Width | 1.7" |
| Width (mm) | 41.91 |
