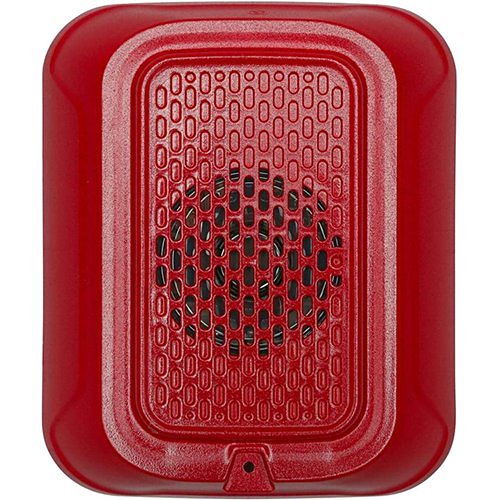

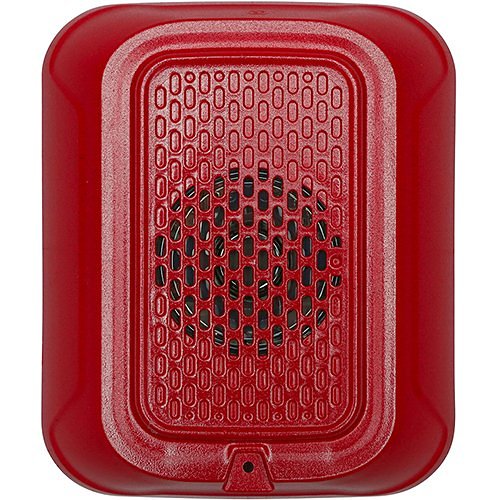

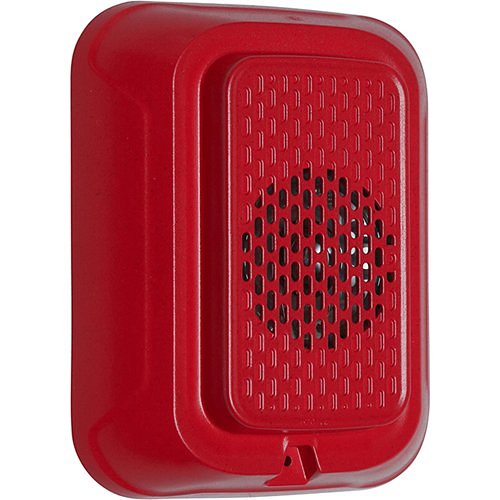

System Sensor HRL-LF - Horn/Strobe - Lf Sounder, Wall Mount, Red
Description
Description
The L-Series offers the most versatile and easy-to-use line of low frequency sounder and low frequency sounder strobes in the industry. With white and red plastic housings, listed for wall and ceiling mounting, L-Series Low Frequency can meet virtually any application requirement.
The low frequency sounder and low frequency sounder strobes were designed to address the NFPA 72 sleeping space requirements that require a low frequency notification appliance that operates within frequency range of 520 Hz ± 10% and is of a square wave tone.
Like the entire L-Series product line they include a variety of features that increase their application versatility while simplifying installation. All devices feature plug-in designs with minimal intrusion into the back box, making installations fast and foolproof while virtually eliminating costly and time-consuming ground faults. To further simplify installation and protect devices from construction damage, L-Series uses a universal mounting plate with an onboard shorting spring, so installers can test wiring continuity before the device is installed.
System Sensor - HRL-LF - Features
- 520 Hz ± 10% square wave tone, NFPA compliance
- Full candela range plus High/low tone options to optimize current draw for a wide variety of applications
- Compact and standard, and round ceiling options
- Field-selectable candela settings on wall units: 15, 30, 75, 95, 110, 135, and 185
- Rotary switch for high and low, temp 3 and temp 4 settings
- Plug-in design with minimal intrusion into the backbox
- Mounting plate shorting spring checks wiring continuity before device installation
- Electrically compatible with legacy SpectrAlert and SpectrAlert Advance devices
- Updated modern aesthetics
- Compatible with MDL3 sync module
- General Information
- Name: System Sensor HRL-LF L-Series Indoor Selectable Output Low Frequency Sounder, 2-Wire, Wall Mount, No Marking, Red (Replaces HR-LF), Honeywell International, Inc, System Sensor
- Category: System Sensor, Fire, Fire Notification Appliances, Sounders
- UPC Code: 783863054631
- Country of Origin: Mexico. Country of origin is subject to change.
Specifications
Specifications
System Sensor - HRL-LF - Product Categories
- Security
- Fire Alarm Systems
- Fire Notification
System Sensor - HRL-LF - Specifications
| Device Type | Horn / Strobe |
|---|---|
| UNSPSC Code | 46171600 |
| Brand Name | System Sensor |
| Connectivity Technology | Wired |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | HRL-LF |
| Product Functions | Alarm |
| Product Model | HRL-LF |
| Product Name | HRL-LF Security Alarm |
| Product Series | L |
| Product Type | Security Alarm |
System Sensor - HRL-LF - Physical Characteristics
| Application/Usage | Alarm, Security |
|---|---|
| Color | Red |
| Depth | 1.5" |
| Depth (mm) | 38.1 |
| Form Factor | Wall Mount |
| Height | 5.6" |
| Height (mm) | 142.24 |
| Product Color | Red |
| Width | 4.7" |
| Technical Information | - |
| Alarm Type | Audible |
