System Sensor MP120KL - Fire Signal - L-Series 120 Vac Adapter
Description
Description
System Sensor L-Series offers a wide range of Audible Visible (AV) accessories to enable you to meet a variety of application requirements.

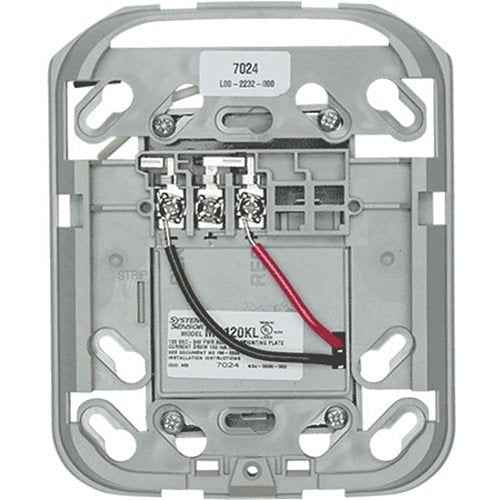

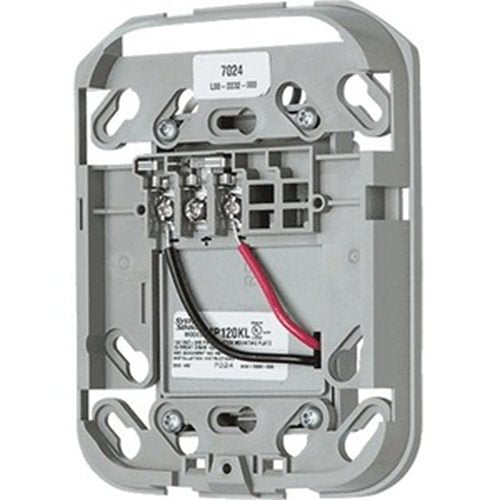

The MP120KL Mounting Plate is designed to use 120 VAC to power SpectrAlert Advance horns, strobes, horn strobes, chimes, and chime strobes.
120 VAC mounting plate model MP120KL shall be listed to UL 464 for fire protective signaling systems. The mounting plate shall power a twowire L-Series horn, strobe, horn strobe, chime or chime strobe from a 120 VAC supply converted to nominal 24 V FWR. For indoor applications, the mounting plate shall be installed in a 4x4x21/8 -inch junction box.
System Sensor - MP120KL - Features
- Designed for Both Indoor and Outdoor Use
- Plug-In Design Eliminates Ground Faults
- Power Supply That Converts 120 VAC To Nominal 24 Volt FWR
- Compatible With All Two-Wire L-Series Devices
- Designed for both indoor and outdoor use
- Plug-in design eliminates ground faults
- Power supply that converts 120 VAC to nominal 24 V FWR
- Compatible with all two-wire L-Series devices
- General Information
- Name: System Sensor MP120KL L-Series 120V AC Adapter Mounting Plate, Honeywell International, Inc, System Sensor
- Category: System Sensor, Fire, Fire Accessories, Mounting Devices
- UPC Code: 783863048319
- Country of Origin: China. Country of origin is subject to change.
Specifications
Specifications
System Sensor - MP120KL - Product Categories
- Security
- Fire Alarm Systems
- Fire Alarm Accessories
System Sensor - MP120KL - Specifications
| Type | Fire Signal Mounts And Plates |
|---|---|
| UNSPSC Code | 46171600 |
| Brand Name | System Sensor |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | MP120KL |
| Product Model | MP120KL |
| Product Name | 120 VAC Adapter Mounting Plate |
| Product Series | L |
| Product Type | Mounting Plate |
System Sensor - MP120KL - Physical Characteristics
| Color | White |
|---|---|
| Technical Information | - |
| Device Supported | Chime, Horn, Strobe |
| Material | Metal |
