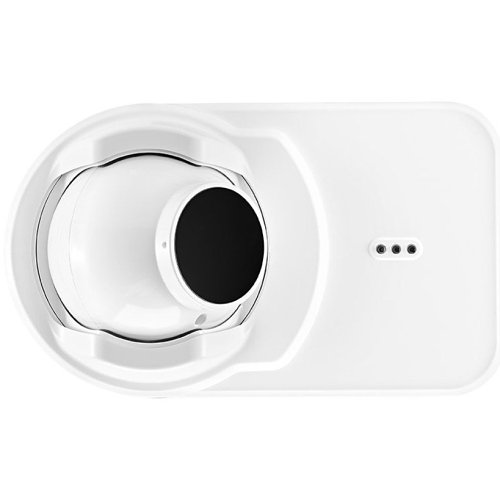

System Sensor OSI-R-SS - Detector - Conventional Beam Detector
Description
Description
OSI-R-SS is a 4-wire conventional reflector-type linear optical beam smoke detector for use in fire alarm systems. The beam operates primarily on the principle of light obscuration using an infrared beam. Optical beam smoke detectors are uniquely suited to protecting buildings with large open areas with high ceilings such as a warehouse or atrium. The OSI-R-SS detector is a combined transmitter/receiver unit that can be directly connected to a conventional detector circuit.
This conventional, single-ended beam smoke detector is easy to install – only one side needs to be wired.
System Sensor - OSI-R-SS - Features
- Combined transmitter/receiver unit
- Wide 12° field of view
- Fast, easy, and intuitive beam alignment indicated by directional LED cross-hair arrows
- Long range coverage of 5-100 m (16-328 ft) is standard; no separate long-range kit required
- Highly resistant to building movement; tolerates +/- 1° movement
- Resistant to strong light sources; does not alarm when saturated by sunlight
- Resistant to solid object intrusion
- Automatic sensitivity threshold level setting
- 50° horizontal and 20° vertical beam adjustment
- Built-in imager heater is standard
- General Information
- Name: System Sensor OSI-R-SS Reflected Type Beam Smoke Detector, 4-Wire, Single-Ended, 8" Reflector and Integral Sensitivity Test, (Replaces BEAM1224), Honeywell International, Inc, System Sensor
- Category: System Sensor, Fire, Fire Detection Devices, Beam Smoke Detectors
- UPC Code: 783863052828
- Country of Origin: United States. Country of origin is subject to change.
Specifications
Specifications
System Sensor - OSI-R-SS - Product Categories
- Security
- Fire Alarm Systems
- Smoke and Heat Detection
System Sensor - OSI-R-SS - Specifications
| Device Type | Smoke Detector |
|---|---|
| Property | Projected Beam |
| Ul Listed | Ul Listed |
| Mount | Ceiling |
| Range | 300 Feet |
| UNSPSC Code | 46171600 |
| Brand Name | System Sensor |
| Connectivity Technology | Wired |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | OSI-R-SS |
| Product Line | Conventional |
| Product Model | OSI-R-SS |
| Product Name | Conventional Reflective Imaging Beam Smoke Detector |
System Sensor - OSI-R-SS - Physical Characteristics
| Color | White |
|---|---|
| Depth | 4.5" |
| Depth (mm) | 114.3 |
| Form Factor | Ceiling Mount, Wall Mount |
| Height | 6" |
| Technical Information | - |
| Detectable Medium | Smoke |
| Material | Metal |
| Sensing Technology | Optical |
