System Sensor R-14E - Relay - Relay, 4-Gang, Spdt,

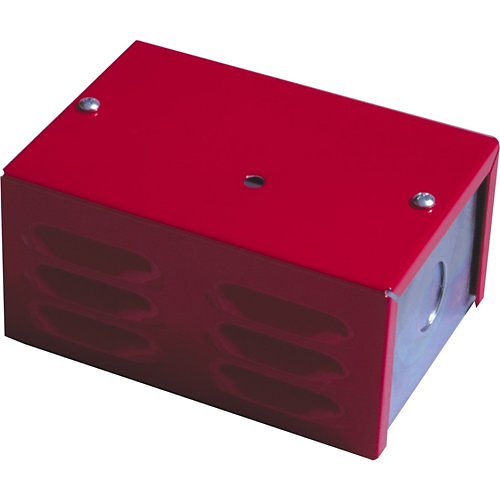

The R-10E/R-20E and R-14E/R-24E are similar to the T-series track mount relays, but they are mounted into a steel enclosure. The enclosure has a removable front cover that provides easy access and an LED viewing hole on the top of the cover.

Models R-10E/R-20E and R-14E/R-24E are multi voltage relays with terminal strip field wiring connections, mounting track and hardware mounted in a steel enclosure. The closure has a removable front cover that provides easy access and a LED viewing hole on the top of the cover.

System Sensor - R-14E - Features

• Multi-voltage operation
• Activation LEDs
• Easy and flexible installation
• Reliable and robust design
• Multipurpose field installations
• Multi-voltage relays with terminal strip field wiring connections, mounting track, and hardware for R-10T/20T and R-144T
• Removable front cover on steel enclosure for R-10E/R-20E and R-14/R-24E, which mount inside the enclosure
• LED viewing hole on top of the steel enclosure’s cover
• Extra pair of wires for redundant power input on PR-3
• Terminal strip field wiring conntions, mounting track, and hardware
• Multi-voltage operation
• Activation LEDs
• Easy and flexible installation
• Expanded color options
• Reliable and robust design
• Multipurpose field installations
• Multi-voltage relays with terminal strip field wiring connections, mounting track, and hardware for R-10T/20T and R-14T/24T
• Removable front cover on steel enclosure for R-10E/R-20E and R-14/R-24E, which mount inside the enclosure
• LED viewing hole on top of the steel enclosure’s cover
• Extra pair of wires for redundant power input on PR-3 and PR-3A
• General Information
• Name: System Sensor R-14E Multi-Voltage Conventional Relay, 4-Gang (SPDT) Relay with 4 Activation LEDs, Honeywell International, Inc, System Sensor
• Category: System Sensor, Fire, Batteries & Power Supplies, Fire Relays & Power, Circuit Breakers, Fuses & Relays, Relays, Relays
• UPC Code: 783863026362
• Country of Origin: Mexico. Country of origin is subject to change.

System Sensor - R-14E - Product Categories

• Hardware
• Tools and Supplies
• Miscellaneous

System Sensor - R-14E - Specifications

UNSPSC Code	46171600
Brand Name	System Sensor
Manufacturer	Honeywell International, Inc
Manufacturer Part Number	R-14E
Product Model	R-14E
Product Name	R-14E Multi-Voltage Conventional Relay
Product Type	Multi-Voltage Conventional Relay

System Sensor - R-14E - Physical Characteristics

Depth	2.7"
Depth (mm)	68.58
Height	5.4"
Height (mm)	137.16
Width	10.9"
Width (mm)	276.86

System Sensor - R-14E - Documents and Downloads

System Sensor R-14E Specification Sheet	Click to View
System Sensor R-14E Product Data Sheet	Click to View
System Sensor R-14E Installation Instructions	Click to View
