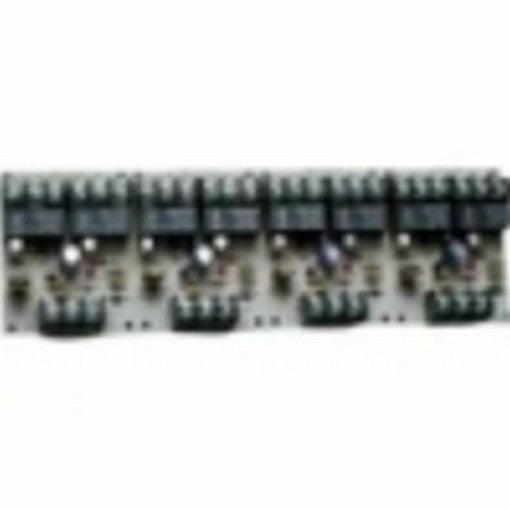

System Sensor R-24T - Relay - Relay, 4-Gang, Dpdt,

The R-10T, R-20T, R-14T, and the R-24T models are multivoltage relays with terminal strip field wiring connections, mounting track, and hardware. The R-10T is a single FORM-C (SPDT) relay with a red activation LED, and the R-14T is a four-gang 1 FORM-C (SPDT) relay with four red activation LEDs. The R-20T is a single 2 FORM-C (DPDT) relay with a red activation LED, and the R-24T is a four-gang 2 FORM-C (DPDT) relay with four red activation LEDs.

System Sensor - R-24T - Features

• Multi-voltage operation
• Activation LEDs
• Easy and flexible installation
• Reliable and robust design
• Multipurpose field installations
• Multi-voltage relays with terminal strip field wiring connections, mounting track, and hardware for R-10T/20T and R-144T
• Removable front cover on steel enclosure for R-10E/R-20E and R-14/R-24E, which mount inside the enclosure
• LED viewing hole on top of the steel enclosure’s cover
• Extra pair of wires for redundant power input on PR-3
• Terminal strip field wiring conntions, mounting track, and hardware

System Sensor - R-24T - Product Categories

• Security
• Fire Alarm Systems
• Fire Notification

System Sensor - R-24T - Specifications

UNSPSC Code	46171600
Brand Name	System Sensor
Manufacturer Part Number	R-24T
