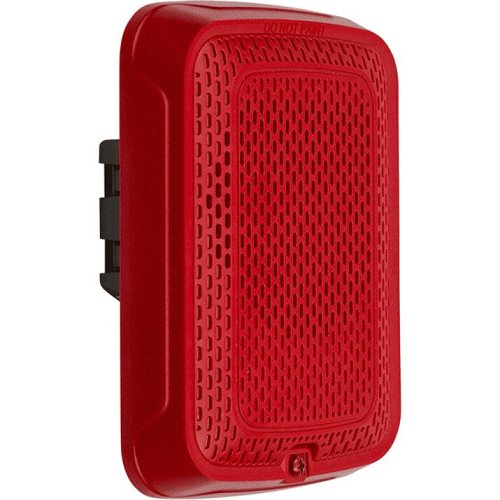

System Sensor SPRL - Fire Signal - L-Series Speaker Red Wall
Description
Description
The System Sensor L-Series of speakers and speaker strobes reduce costly ground faults using a plug-in design and universal mounting plate that allow the installer to pre-wire mounting plates, dress the wires, and confirm wiring continuity before plugging in the speakers.
In addition, a protective plastic cover prevents nicked wires by covering exposed speaker components. These devices also enable faster installations by providing instant feedback to ensure that wiring is properly connected, rotary switches to select voltage and power settings, and 7 field-selectable candela settings for wall speaker strobes.
The low total harmonic distortion of the speaker offers high fidelity sound output while still offering high volume sound output for use in high ambient noise applications.
System Sensor - SPRL - Features
- Plug-In Design and Protective Cover Reduce Ground Faults
- Universal Mounting Plate with an Onboard Shorting Spring Tests Wiring Continuity Before Installation
- No Extension Ring Required
- Automatic Selection of 12 or 24 Volt Operation at 15 and 30 Candel
- Plug-in design and protective cover reduce ground faults
- Universal mounting plate with an onboard shorting spring tests wiring continuity before installation
- No extension ring required
- Field selectable candela settings on wall units: 15, 30, 75, 95, 110, 135, 185
- Automatic selection of 12- or 24-volt operation at 15 and 30 candela
- Rotary switch simplifies field selection of speaker voltage (25 and 70.7 Vrms) and power settings (1?4, 1?2, 1 and 2 watts)
- Seakers offer high fidelity and high volume sound output
- Compatible with System Sensor synchronization protocol
- Electrical compatibility with existing SpectrAlert and SpectrAlert Advance products
- Tamper-resistant construction
- General Information
- Name: System Sensor SPRL L-Series Indoor Selectable Output Speaker, High Fidelity, Wall Mount, No Marking, Red, Honeywell International, Inc, System Sensor
- Category: System Sensor, Fire, Fire Notification Appliances, Speakers
- UPC Code: 783863048364
- Country of Origin: Mexico. Country of origin is subject to change.
Specifications
Specifications
System Sensor - SPRL - Product Categories
- Security
- Fire Alarm Systems
- Fire Notification
System Sensor - SPRL - Specifications
| Device Type | Speaker |
|---|---|
| UNSPSC Code | 46171600 |
| Brand Name | System Sensor |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | SPRL |
| Product Model | SPRL |
| Product Name | L SPRL Doorbell |
| Product Series | L |
| Product Type | Speaker |
System Sensor - SPRL - Physical Characteristics
| Color | Red |
|---|---|
| Depth | 0.97" |
| Depth (mm) | 24.638 |
| Form Factor | Wall Mount |
| Height | 6.5" |
| Technical Information | - |
| Maximum Frequency Response (Hz) | 4000 |
| Minimum Frequency Response (Hz) | 400 |
| PMPO Output Power (W) | 2 |
