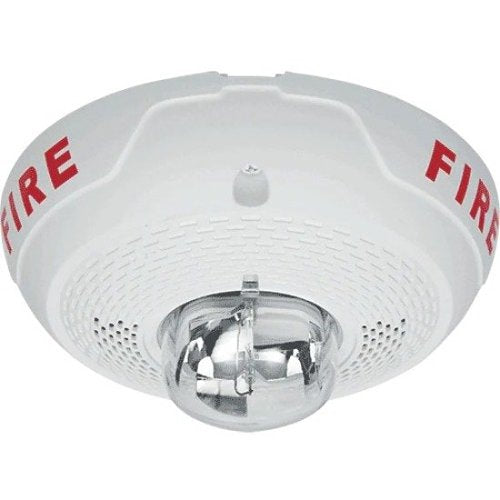

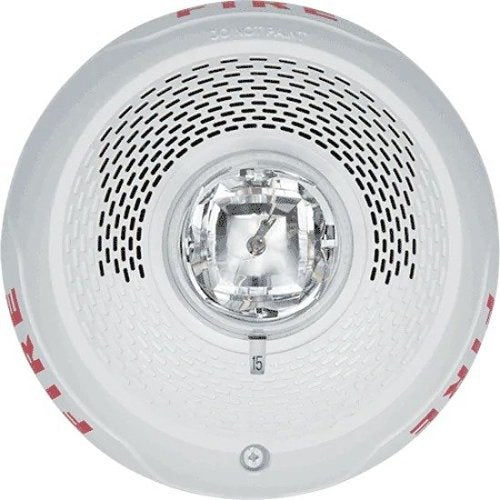

System Sensor SPSCWL - Fire Signal - L-Series Speaker Strobe White
Description
Description
System Sensor L-Series
of speakers and speaker strobes reduce costly ground faults using a plug-in design and universal mounting plate that allow the installer to pre-wire mounting plates, dress the wires, and confirm wiring continuity before plugging in the speakers. In addition, a protective plastic cover prevents nicked wires by covering exposed speaker components.
These devices also enable faster installations by providing instant feedback to ensure that wiring is properly connected, rotary switches to select voltage and power settings, and 7 field-selectable candela settings for both wall and ceiling speaker strobes.
The low total harmonic distortion of the SP speaker offers high fidelity sound output while still offering high volume sound output for use in high ambient noise applications.
System Sensor - SPSCWL - Features
- Plug-In Design and Protective Cover Reduce Ground Faults
- Universal Mounting Plate with an Onboard Shorting Spring Tests Wiring Continuity Before Installation
- No Extension Ring Required
- Automatic Selection of 12 or 24 Volt Operation at 15 and 30 Candel
- Ro
- Plug-in design and protective cover reduce ground faults
- Universal mounting plate with an onboard shorting spring tests wiring continuity before installation
- No extension ring required
- Field selectable candela settings on ceiling units: 15, 30, 75, 95, 115, 150, and 177
- Automatic selection of 12- or 24-volt operation at 15 and 30 candela
- Rotary switch simplifies field selection of speaker voltage (25 and 70.7 Vrms) and power settings (1/4, 1/2, 1 and 2 watts)
- Speakers offer high fidelity and high volume sound output
- 520 Hz capable with compatible FACP
- Compatible with System Sensor synchronization protocol
- Tamper-resistant construction
- General Information
- Name: System Sensor SPSCWL L-Series Indoor Speaker Strobe, Ceiling Mount, "FIRE" Marking, White, Honeywell International, Inc, System Sensor
- Category: System Sensor, Fire, Fire Notification Appliances, Speaker Strobes
- UPC Code: 783863048357
- Country of Origin: Mexico. Country of origin is subject to change.
Specifications
Specifications
System Sensor - SPSCWL - Product Categories
- Security
- Fire Alarm Systems
- Fire Notification
System Sensor - SPSCWL - Specifications
| Device Type | Speaker |
|---|---|
| UNSPSC Code | 46171600 |
| Brand Name | System Sensor |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | SPSCWL |
| Product Functions | Alarm |
| Product Model | SPSCWL |
| Product Name | L SPSCWL Speaker Strobe |
| Product Series | L |
| Product Type | Speaker Strobe |
System Sensor - SPSCWL - Physical Characteristics
| Application/Usage | Alarm, Evacuation, Fire, Indoor |
|---|---|
| Color | White |
| Depth | 4.5" |
| Depth (mm) | 114.3 |
| Durability | Tamper Proof |
| Form Factor | Ceiling Mount |
| Lens Color | Clear |
| Technical Information | - |
| Alarm Type | Audible, Visual |
| Sound Emission (dB(A)) | 86 |
