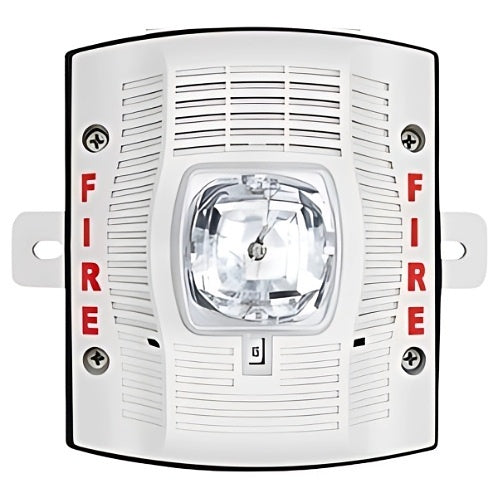

System Sensor SPSWKLED Outdoor Speaker Strobe LED White Wall

System Sensor L-Series Outdoor Speakers and L-Series with LED Outdoor Speaker Strobes offer the most versatile and easy-to-use line of weatherproof speakers and speaker strobes that can meet virtually any application requirement, including outdoor, indoor, wet, dry, and washdown environment applications in temperatures from ?40°F to 151°F. The speakers provide a broad frequency response range, low harmonic distortion offering a highfi delity sound output while offering a high-volume sound output for use in high ambient noise applications.

System Sensor - SPSWKLED - Features

• Weatherproof per NEMA 4X, IP56 as a standalone device
• Rated from -40°F to 151°F LED technology provides lower current draw
• Field-selectable candela settings on wall units: 15, 30, 75, 95, 110, 135, and 185
• Field-selectable candela settings on ceiling units: 15, 30, 75, 95, 115, 150, and 177
• Rotary switches for candela, speaker voltage (25 and 70.7 Vrms) and power settings (¼, ½, 1, and 2 watts)
• Mounting plates with wirenuts are provided to make the connection between the field wiring and the mounting plates
• Synchronization through use of UL approved power supplies that support System Sensor Sync protocol or System Sensor MDL Sync Module
• Electrically compatible with legacy SpectrAlert, SpectrAlert Advance and L-series devices at 16-33 VDC

System Sensor - SPSWKLED - Documents and Downloads

System Sensor SPSWKLED Data Sheet	Click to View
System Sensor SPSWKLED Installation Manual	Click to View
