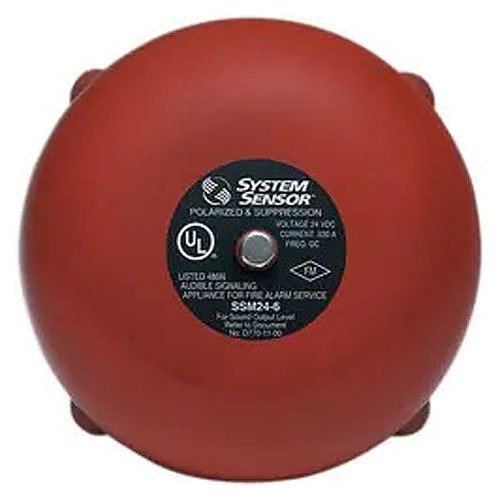

System Sensor SSM24-10 - Alarm - Alarm Bell, 24 Vdc, 10"

The SSM and SSV series provide loud resonant tones. The SSM series operates on 24 V DC and are motor driven, while the SSV series operates on 120 V AC utilizing a vibrating mechanism.

For indoor use, the SSM and SSV series mount to a standard four-inch square electrical box. For outdoor applications, weatherproof back box, model number WBB, is used.

The SSM and SSV series come pre-wired, to reduce installation time. The SSM series incorporates a polarized electrical design for use with supervision circuitry.

System Sensor’s SSM and SSV series alarm bells are low current, high decibel notification appliances for use in fire and burglary systems or other signaling applications.

Reliable Performance.The SSM and SSV series provide loud resonant tones. The SSM series operate on 24VDC and are motor driven, while the SSV series operate on 120VAC utilizing a vibrating mechanism.

Simplified Installation.For indoor use, the SSM and SSV series mount to a standard 4 inch square electrical box. For outdoor applications, weatherproof back box, model number WBB, is used.

System Sensor - SSM24-10 - Features

• Approved for indoor and outdoor use
• Low current draw
• High dB output
• Available in six-inch, eight-inch, and ten-inch sizes
• AC and DC models
• DC models polarized for use with supervision circuitry
• Mount directly to standard four-inch square electrical indoors
• SSM and SSV series come pre-wired
• Approved for indoor and outdoor use
• Low current draw
• High dB output
• Available in six-inch, eight-inch, and ten-inch sizes
• AC and DC models
• DC models polarized for use with supervision circuitry
• Mount directly to standard four-inch square electrical box indoors
• SSM and SSV series come pre-wired
• General Information
• Name: System Sensor SSM24-10 SSM Series Alarm Bell 10", 24VDC, Polarized, 82dBA, Red, Honeywell International, Inc, System Sensor
• Category: System Sensor, Fire, Fire Notification Appliances, Signaling Bells
• UPC Code: 783863025914
• Country of Origin: China. Country of origin is subject to change.

System Sensor - SSM24-10 - Product Categories

• Security
• Fire Alarm Systems
• Fire Notification

System Sensor - SSM24-10 - Specifications

UNSPSC Code	46171600
Brand Name	System Sensor
Manufacturer	Honeywell International, Inc
Manufacturer Part Number	SSM24-10
Product Functions	Alarm
Product Model	SSM24-10
Product Name	SSM24-10 Alarm Bell
Product Series	SSM
Product Type	Alarm Bell

System Sensor - SSM24-10 - Physical Characteristics

Application/Usage	Outdoor
Color	Red
Form Factor	Box
Technical Information	-
Alarm Type	Audible

System Sensor - SSM24-10 - Documents and Downloads

System Sensor SSM24-10 Specification Sheet	Click to View
System Sensor SSM24-10 Product Data Sheet	Click to View
System Sensor SSM24-10 User Manual	Click to View
System Sensor SSM24-10 Installation Instructions	Click to View
