Brand: Toa Electronics Inc. | SKU: 397545

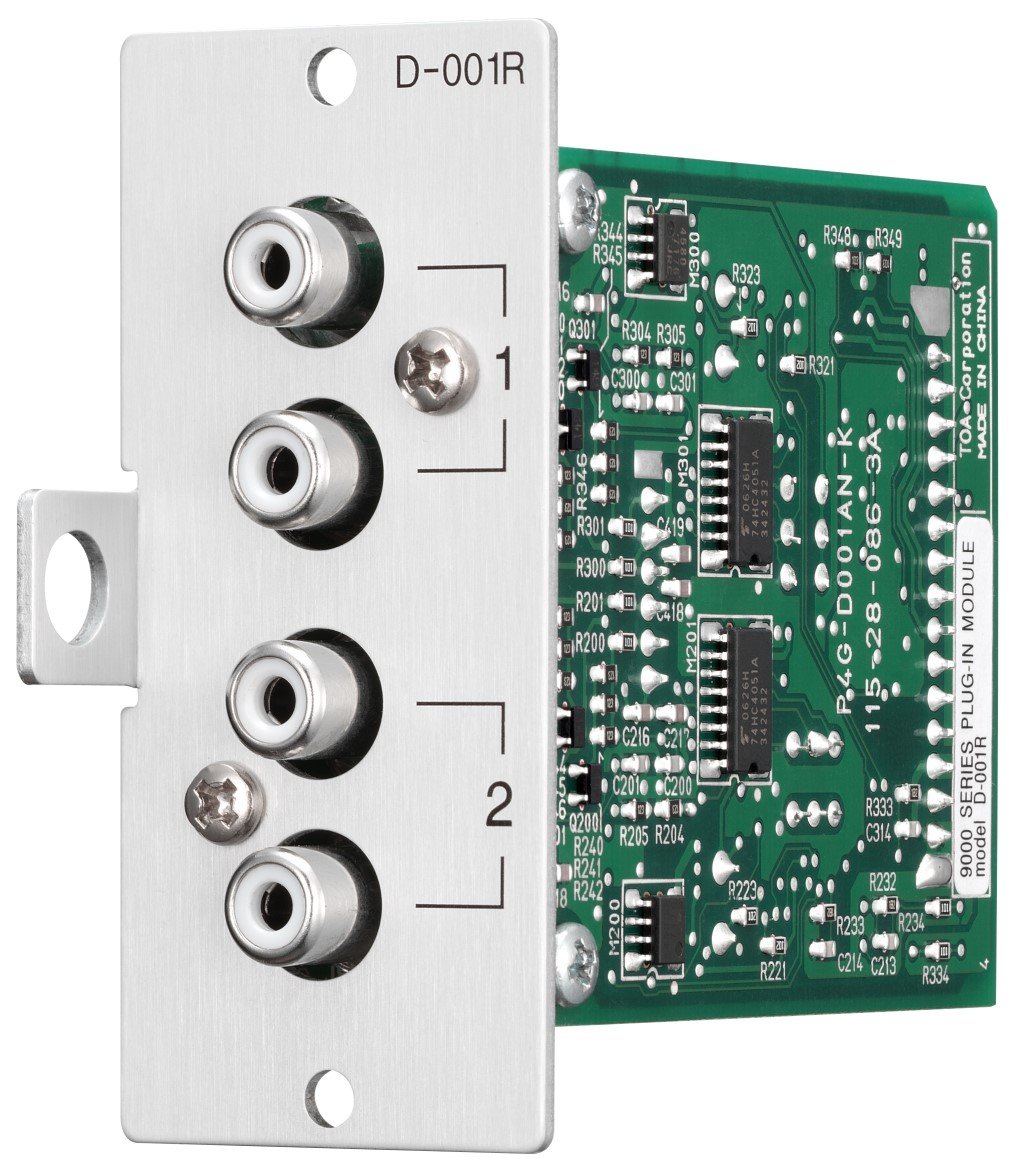

TOA Electronics D-001R | Dual-Channel Unbalanced Line Input Module with DSP and Dual RCA Jacks per Input

$228.27

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

The D001R is a dual line input module with RCA connectors. Designed for use with the TOA M9000 digital matrix mixer.

The D-001R is a line input plug-in module designed for use with the 9000 Series amplifiers. It has 2-channel unbalanced inputs of RCA jacks. Input signals to both channels are mixed together. The D-001R can process effect for TONE/EQ/COMPRESSOR to two inputs independently.

Includes

Module mounting screw x2

Specifications

0dB = 1V
Power Source: +24VDC, -24VDC, +6VDC
Current Consumption: 20mA (@ +24VDC), 20mA (@ -24VDC), 60mA (@ +6VDC)
Input: 2 channels, 2x RCA / ch mixed, 10k?, unbalanced, RCA pin jack
Input Sensitivity: -60, -54, -48, -42, -36, -30, -24, -18, -10dB* (selectable)
Frequency Response: 20Hz - 20kHz, +1, -3dB
Total Harmonic Distortion + N: 0.008% (@ 1kHz, 20Hz - 20kHz BPF, Input sensitivity: -10dB)
S/N Ratio: Over 70dB (@ 20Hz - 20kHz BPF, Input short, Input sensitivity: -10dB)
Cross-Talk: Over 75dB (@ 20kHz, Input sensitivity: -10dB)
A/D Converter: 24-bit ADC
Sampling Frequency: 48kHz
Tone Controls
Bass: ±12dB (@ 100Hz)
Treble: ±12dB (@ 10kHz)
Parametric Equalizer: 10 bands, Frequency: 20Hz - 20kHz, 31 points, Variable range: ±12dB, Q: 0.3 - 5
High-pass Filter: -12dB / oct, Variable frequency range: 20Hz - 20kHz, 31 points
Low-pass Filter: -12dB / oct, Variable frequency range: 20Hz - 20kHz, 31 points
Compressor Depth: 1 - 5
Operating Temperature: -10? to +40? (14°F to 104°F)
Finish Panel: Aluminum, hair-line
Dimensions: 35 (W) × 78 (H) × 91.5mm (D) - (1.38" × 3.07" × 3.6")
Weight: 82g (0.18lbs)

Specifications

Includes

Module mounting screw x2

Specifications

0dB = 1V
Power Source: +24VDC, -24VDC, +6VDC
Current Consumption: 20mA (@ +24VDC), 20mA (@ -24VDC), 60mA (@ +6VDC)
Input: 2 channels, 2x RCA / ch mixed, 10k?, unbalanced, RCA pin jack
Input Sensitivity: -60, -54, -48, -42, -36, -30, -24, -18, -10dB* (selectable)
Frequency Response: 20Hz - 20kHz, +1, -3dB
Total Harmonic Distortion + N: 0.008% (@ 1kHz, 20Hz - 20kHz BPF, Input sensitivity: -10dB)
S/N Ratio: Over 70dB (@ 20Hz - 20kHz BPF, Input short, Input sensitivity: -10dB)
Cross-Talk: Over 75dB (@ 20kHz, Input sensitivity: -10dB)
A/D Converter: 24-bit ADC
Sampling Frequency: 48kHz
Tone Controls
Bass: ±12dB (@ 100Hz)
Treble: ±12dB (@ 10kHz)
Parametric Equalizer: 10 bands, Frequency: 20Hz - 20kHz, 31 points, Variable range: ±12dB, Q: 0.3 - 5
High-pass Filter: -12dB / oct, Variable frequency range: 20Hz - 20kHz, 31 points
Low-pass Filter: -12dB / oct, Variable frequency range: 20Hz - 20kHz, 31 points
Compressor Depth: 1 - 5
Operating Temperature: -10? to +40? (14°F to 104°F)
Finish Panel: Aluminum, hair-line
Dimensions: 35 (W) × 78 (H) × 91.5mm (D) - (1.38" × 3.07" × 3.6")
Weight: 82g (0.18lbs)

Additional Specifications

Type	AUDIO AMPLIFIER
UNSPSC Code	52161600
