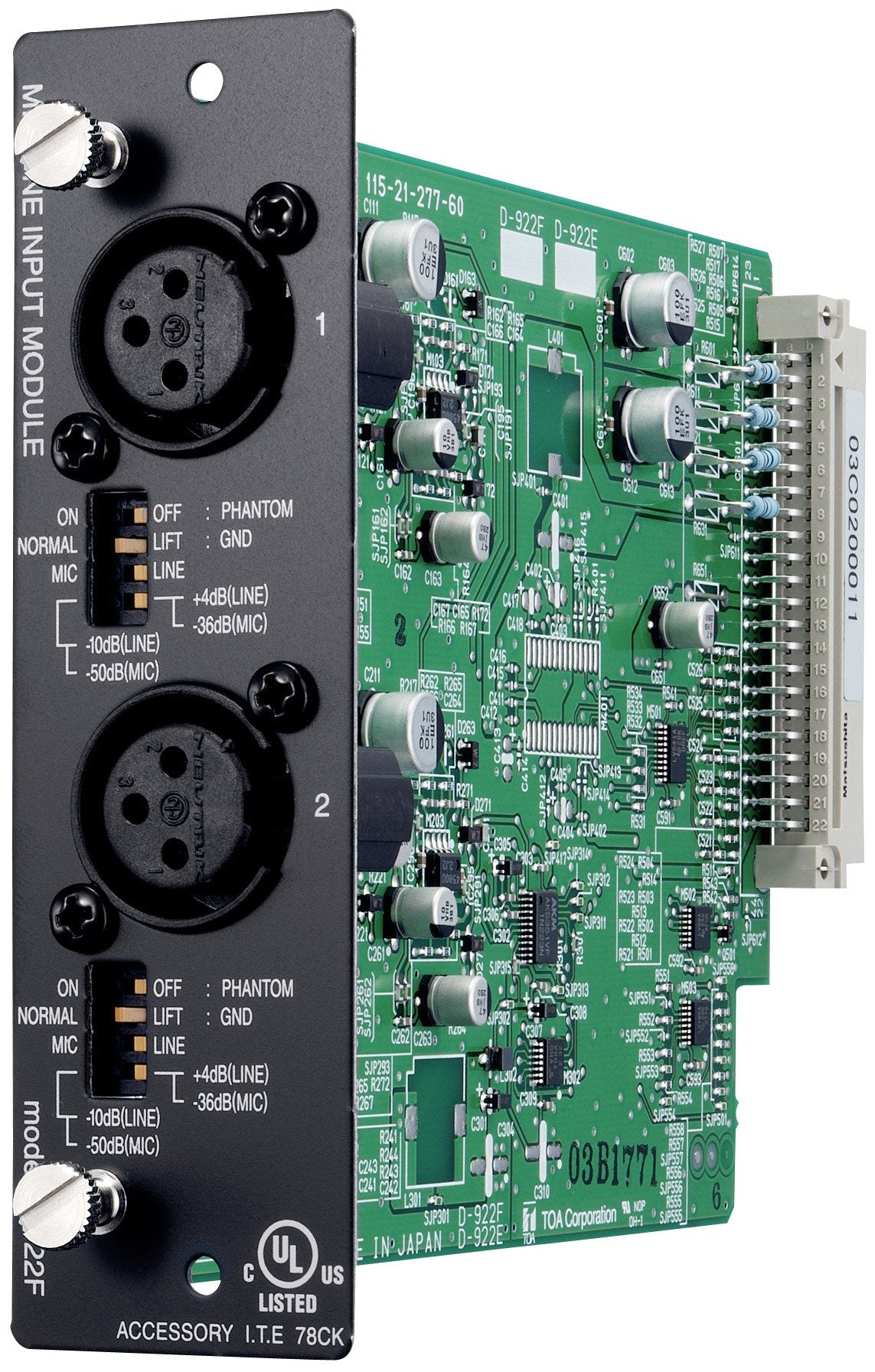

TOA Electronics D-922F | 2-Channel XLR Input Module for D-901 Mixer

$224.38

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

The D-922F is a 2-channel input module for the TOA D-901 modular digital mixer that accepts mic and line level inputs (selectable). It is equipped with XLR connectors and DIP switches to adjust input sensitivity, phantom power and ground lifting.

Specifications

Input: 2 channels, –50 / –36 / –10 / +4dB (Selectable with the DIP switch)
4.7k? electronically-balanced
Phantom power supply (15V, can be set with the DIP switch)
Ground lift switch (can be set with the DIP switch)
Connector Type: XLR-3-31
A/D Converter: 20 bits
Frequency Response: 20 – 20,000Hz, ±1dB (+4dB input)
Sampling Frequency: 48kHz
Dynamic Range: Over 85dB (IHF-A weighted) (+4dB input)
Total Harmonic Distortion: Under 0.2% (+4dB input)
Finish, Panel: Pre-coated steel plate, black, 30% gloss
Dimensions (W x H x D): 35 x 119.5 x 178.4mm
Weight: 135g

Additional Specifications

UNSPSC Code	46171600
