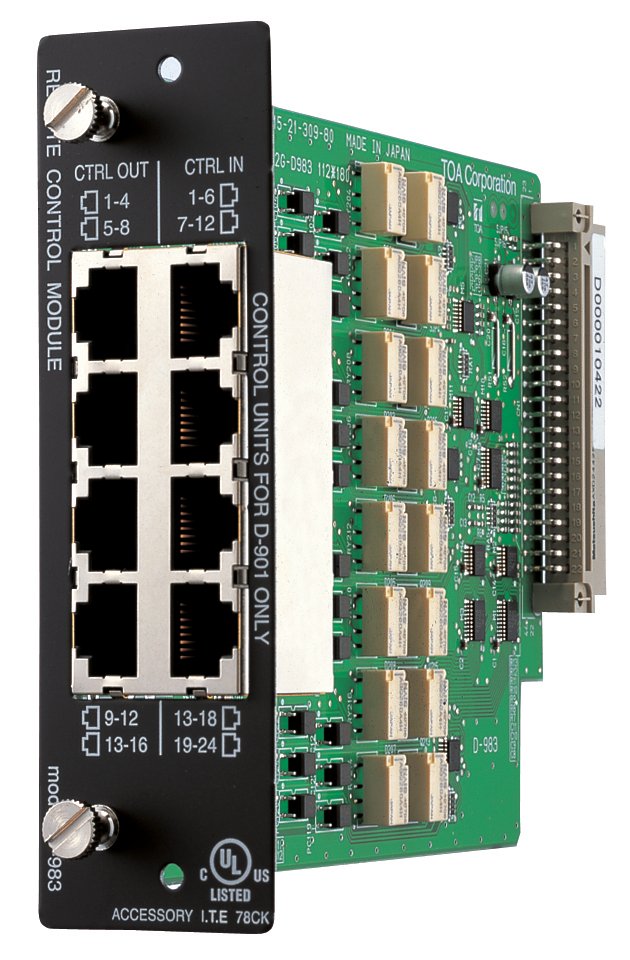

TOA Electronics D-983 | Remote Control Module for D-901 Digital Mixer

Specifications

• COM + Terminal 1 - 24: Open voltage: 5 V DC,
• short-circuit current: 5 mA, RJ45 connector × 4
• Preset Memory Selection Any preset memory can be recalled.
• Control method: No-voltage make of over 100 ms/
• No-voltage make single pulse of over 100 ms
• Any input / output channel volume can be turned UP or DOWN.
• Control method: 1 step variation for no-voltage make single pulse of over 100 ms
• 1 step continuous operation for every 70ms for no-voltage
• make of over 100ms. Can be reset when at break.
• Variable Range: -8 dB to +10 dB
• Any input/output channel can be turned ON and OFF.
• Control method: No-voltage make of over 100ms/
• No-voltage make single pulse of over 100ms
• Stereo Selection
• Input channel lines of the D-936R (optional), or the D-937SP (optional)
• (4 stereo input module) can be selected.
• Control method: No-voltage make of over 100ms/
• No-voltage make single pulse of over 100ms
• COM + Terminals 1 - 16: No-voltage make contact,
• contact capacity: 24VDC, 100mA,
• RJ-45 connector × 4
• Finish Panel: Pre-coated steel plate, black, 30% gloss
• Dimensions: 35 (W) × 119.5 (H) × 178.4 (D) mm
• Weight: 170g

Additional Specifications

• TOA D-983 Data Sheet
