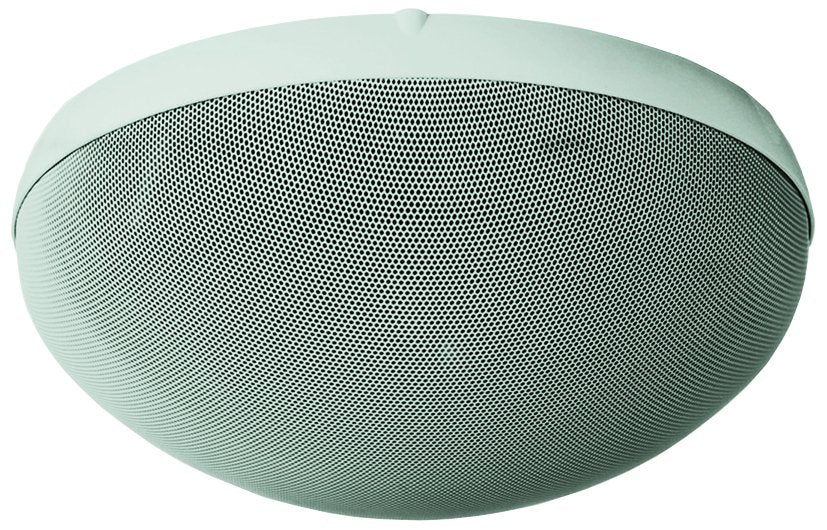

TOA Electronics H-2 EX | Coaxial Interior Design Ceiling Speaker, Dome-Shaped
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
TOA Electronics H-2 EX | Coaxial Interior Design Ceiling Speaker, D...
Description
Description
THE H SERIES INTERIOR DESIGN SPEAKERS are the latest example of TOA’s modern, innovative approach to commercial speaker design. The unique, stylish appearance and superb sound quality of the H-2 provides a welcome alternative to conventional wall-and ceiling-mount speakers. Applications include speaker systems for houses of worship, hotels, offices, museums, restaurants, retail stores, residential spaces and many others.
The H Series Minimum Reflection design significantly reduces sound wave reflections and the resulting sound coloration that occurs with conventional bracket-mounted "box" type speakers. Wall- or ceiling-mount installation is fast and easy using standard electrical gang-boxes, and you can rotate and aim the loudspeaker components without altering the enclosure’s external appearance. Each H Series speaker has a paintable grille and features a high quality Ferrofluid-cooled dome tweeter, Neodymium woofer, 70.7 / 100V matching transformer and removable terminal block.
Key Features
- Sleek, Stylish Appearance: blends well with modern architecture for background/foreground music and paging systems
- Wide Variety of Applications: including wall or ceiling-mount speaker systems for houses of worship, hotels, museums, offices,restaurants, retail stores and residential spaces
- Minimum Reflection Design: reduces sound wave reflections typical of conventional bracket-mounted “box” type speakers
- Loudspeaker components rotate to allow flexible aiming without altering the enclosure's external appearance
- Two-Way, Sealed Enclosure with High-Quality Components
- 1" balanced-dome tweeter, Ferrofluid-cooled
- 4" cone woofer with Neodymium magnets for improved low frequency response
- Built-In 70.7 / 100V Matching Transformer (12W max.)for distributed speaker systems
- Protection Circuit: to prevent loudspeaker damage from excessive input
- Built-In Passive Crossover with optimized filter slopes
- High Power Handling: 120W (Continuous Program)
- Fast and easy installation using supplied mounting hardware
- Push-On Grilles with Paint-able Finish allow custom-matching to any environment
- Removable Terminal Block accepts up to AWG #14 wire with loop-through terminations for distributed speaker systems
- Convenient System Equalization with 900MK2 Series Modules, and E-05R. Equalization parameters for DACsys II or similar digital signal processors also available
- Fire-Rated ABS Enclosure
- Five-Year Warranty
Specifications
Specifications
Includes
- Base frame x1
- Electrical box mounting screw - 1 set
Additional Specifications
| Type | SPEAKER |
|---|---|
| UNSPSC Code | 52161600 |
