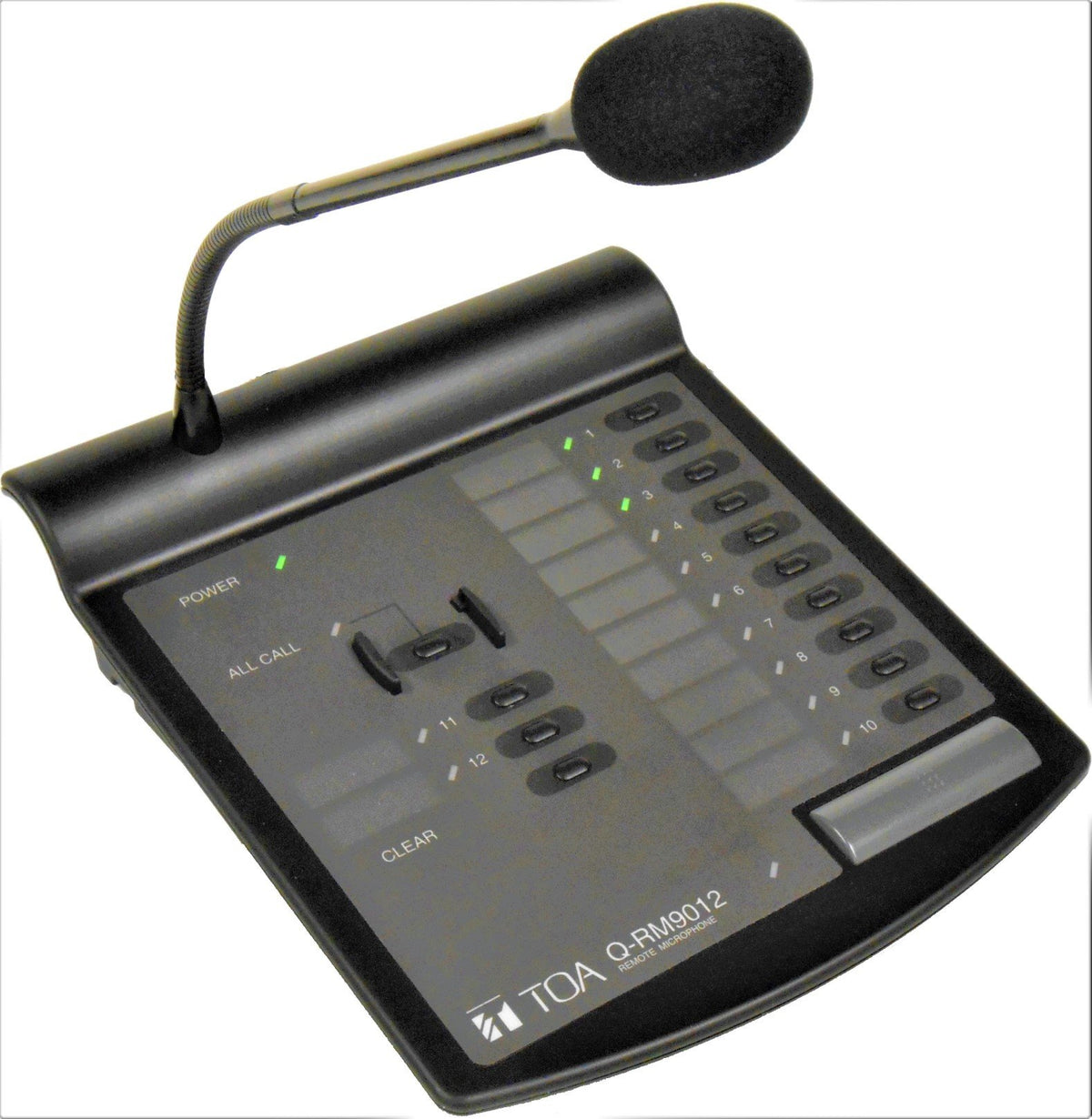

TOA Electronics Q-RM9012PS | Remote Paging Microphone with Power Su...
Description
Description
The TOA Q-SS9012PS Multi-Zone Speaker Selector is a remote microphone used in conjunction with 9000M2 series mixer amplifiers or other paging equipment. Output is up to 12 contact closures together with balanced audio signal in order to initiate/terminate the paging.
This unit has 2 amplifier inputs and 12 individual relay switches to select the amplifier connected to each 12 speaker line/zone. This allows up to 12 zones for paging and BGM distribution with a dual-channel amplifier or simple paging system with only a one-channel amplifier. This concept offers a real cost effective multi-zone paging system. The unit requires 24VDC power supply (AC Adapter, AD-246 or equivalent)
Key Features
- Simple, low-cost solution for multi-zone paging with minimal equipment
- Works with 9000M2 GUI software v2.0
- Speaker selector: Q-SS9012PS
- New 9000M2 Software
- In Paging Matrix: Paging sync function allows up to 12 synchronized contact-outputs along with each page event
- Each sync point controls an independent C-OUT connection, which in turn activates the independent speaker outputs on the Q-SS9012PS
- AD-246 24VDC Power Supply included with each unit
- High-sensitivity electret-condenser gooseneck mic for clear voice
- 12 zone select buttons, All Call, Clear
- 12 Contact Outs corresponding to buttons (RJ-45 connector for use with shielded Cat5 wiring)
- Connects to C-IN on 9000M2 (mainframe & equipped with C-001T)
Specifications
Specifications
Specifications
- Power Source: 24VDC from AC adapter AD-246 or the equivalent
- Power Consumption: 80mA or less
- Audio Output: 0dB , 600?, transformer balanced, RJ-45 connector
- Distortion: 1% or less
- Frequency Response: 100Hz - 20kHz
- S/N Ratio: 60dB or more
- Microphone: Unidirectional
- Control Output: 12 channels, open collector output, withstand voltage: 27V DC, control current: max 50mA
- (2) RJ-45 connectors
- Number of Keys: 12 zone selection keys, All call key, Cancel key, Talk key
- Volume Control: Microphone volume control
- Operating Temperature: -10°C to +40°C (14°F to 104°F)
- Finish: ABS resin, Black
- Dimensions: 190 (W) x 76.5 (H) x 215 (D) mm (Gooseneck microphone excluded)
- Weight: 750g
Additional Specifications
| Type | MICROPHONE |
|---|---|
| UNSPSC Code | 52161600 |
