Brand: Toa Electronics Inc. | SKU: 858862

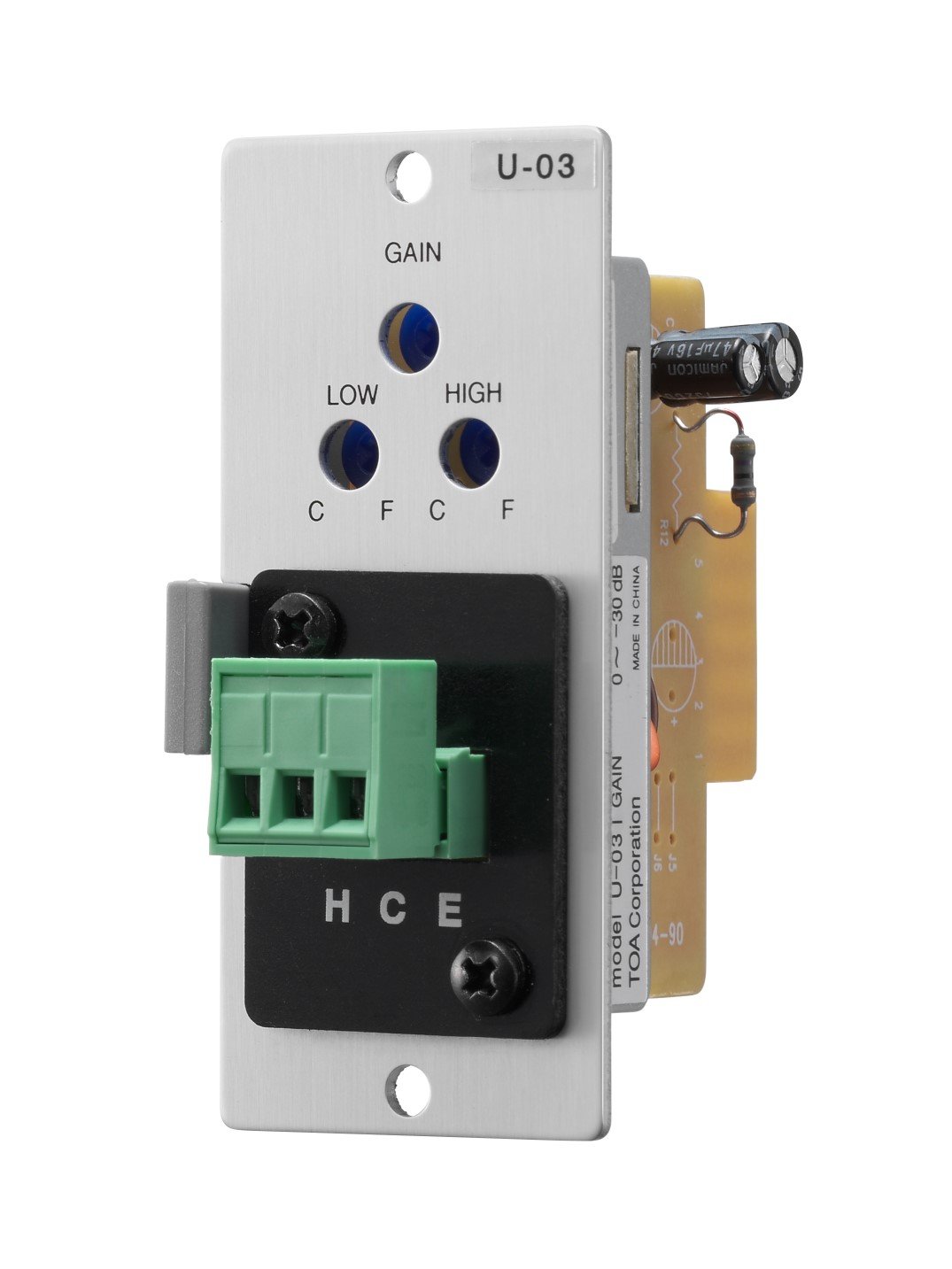

TOA Electronics U-03S | Unbalanced Line Input Module with High / Low-Cut Filters, Removable Terminal Block

$93.21

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

For unbalanced, line level equipment such as AM / FM tuners, tape decks and CD players. Choose from two connector types: dual RCA jacks with passive summing or removable terminal block.

Key Features

Controls / Functions: Gain Control; High and Low Cut Filters
Performance Input: 220k?
Input Sensitivity: -17 ~ +13dBu
Gain (Adjustable): -30 ~ -1dB
Signal to Noise (S/N): 85dBu
Physical Connector: U-03R: Dual RCA, U-03S: Removable Terminal Block
Power Source: 24VDC
Current Consumption: Less than 8mA
Input Sensitivity (Rated Output 100mV ): 100 - 3,600mV (adjustable)
Low Cut Filter (100Hz ): -5 - -15dB
High Cut Filter (10kHz ): -7 - -13dB
Noise Output (20Hz - 20kHz BPF): Less than 10µV
Distortion: Less than 0.05%
Frequency Response: 20Hz - 20kHz
Input Connector: 3-Pin terminal block
Output Connector: 6-Pin card edge-connector
Dimensions: 35 (W) × 78 (H) × 88 (D) mm
Weight: 50g

Specifications

Additional Specifications

UNSPSC Code	52161600

Documents and Downloads

TOA U-03S Data Sheet
