Brand: Toa Electronics Inc.
|
SKU:
320215

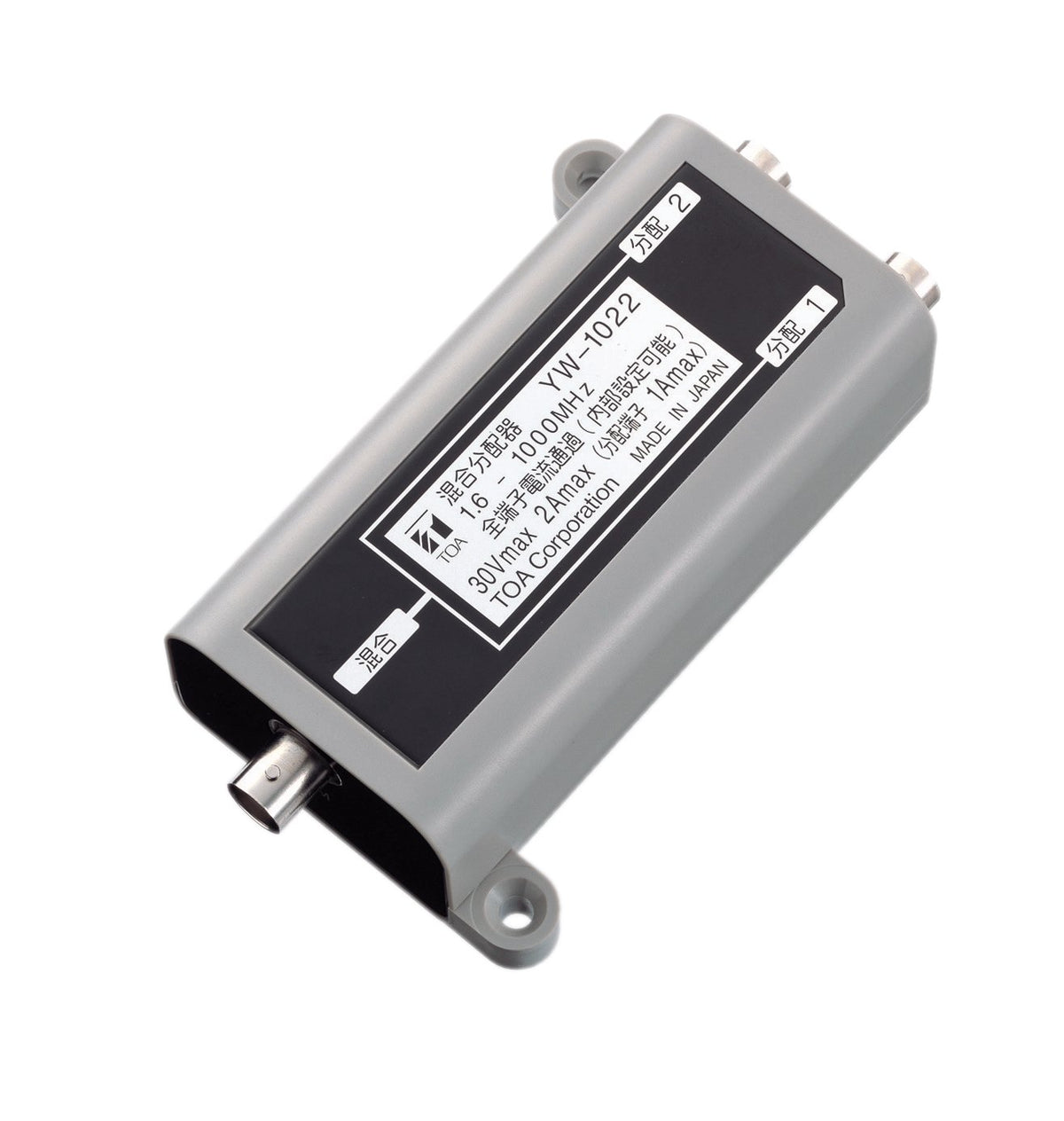

TOA Electronics YW-1022 Y | 2-Way Infrared Antenna Distributor for TS905 or TS907 Transceivers
Regular price
$226.99
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
TOA Electronics YW-1022 Y | 2-Way Infrared Antenna Distributor for ...
Regular price
$226.99
Unit price
Brand: Toa Electronics Inc.
|
SKU:
320215
Regular price
$226.99
Unit price
Shipping calculated at checkout.
Description
Description
Built for infrared conference systems, the YW-1022 is an infrared antenna distributor from TOA that enables signal flow between two TOA TS-905/TS-907 infrared transceivers. The YW-1022 is a distributor that can work in the frequency range of 1.6 to 1000MHz (except 50 to 70MHz bands). Power passing type permits easy power supply.
Key Features
- Secure, wireless infrared communication assures freedom from eavesdropping and interference
- Up to 96 chairperson/delegate stations each powered with rechargeable lithium-ion battery (ten hour operation) or AC power supply
- Convenient voting function (Yes, No, Abstain) (TS-900)
- Simultaneous translation channel (TS-900)
- External source inputs and PA/record outputs
- Five-year warranty
Specifications
Specifications
Includes
- Accessory: Unit fixing wood screw (4.1 × 25mm)
Specifications
- Frequency Range: 1.6 - 1000MHz (excluding 50 - 70MHz)
- Distribution Loss: 4.5dB ±3dB (between the Mixing and each Distribution terminals)
- Input/Output Impedance: 75?
- Coaxial Connector
- Mixing terminal: BNC jack, power passing type (30V DC or less, 2A or less)
- Distribution 1 and 2 terminals: BNC jack, power passing type (30VDC or less, 1A or less)
- Operating Temperature: 14°F to 122°F (-10°C to +50°C)
- Operating Humidity: 90% RH or less (no condensation)
- Finish: ABS resin, gray
- Dimensions (W x H x D): 2.95" × 4.8" × 1.34" (75 × 122 × 34mm)
- Weight: 0.23lbs (105g)
Additional Specifications
| Amplified | NO |
|---|---|
| UNSPSC Code | 43201500 |
