Brand: Toa Electronics Inc.
|
SKU:
801671

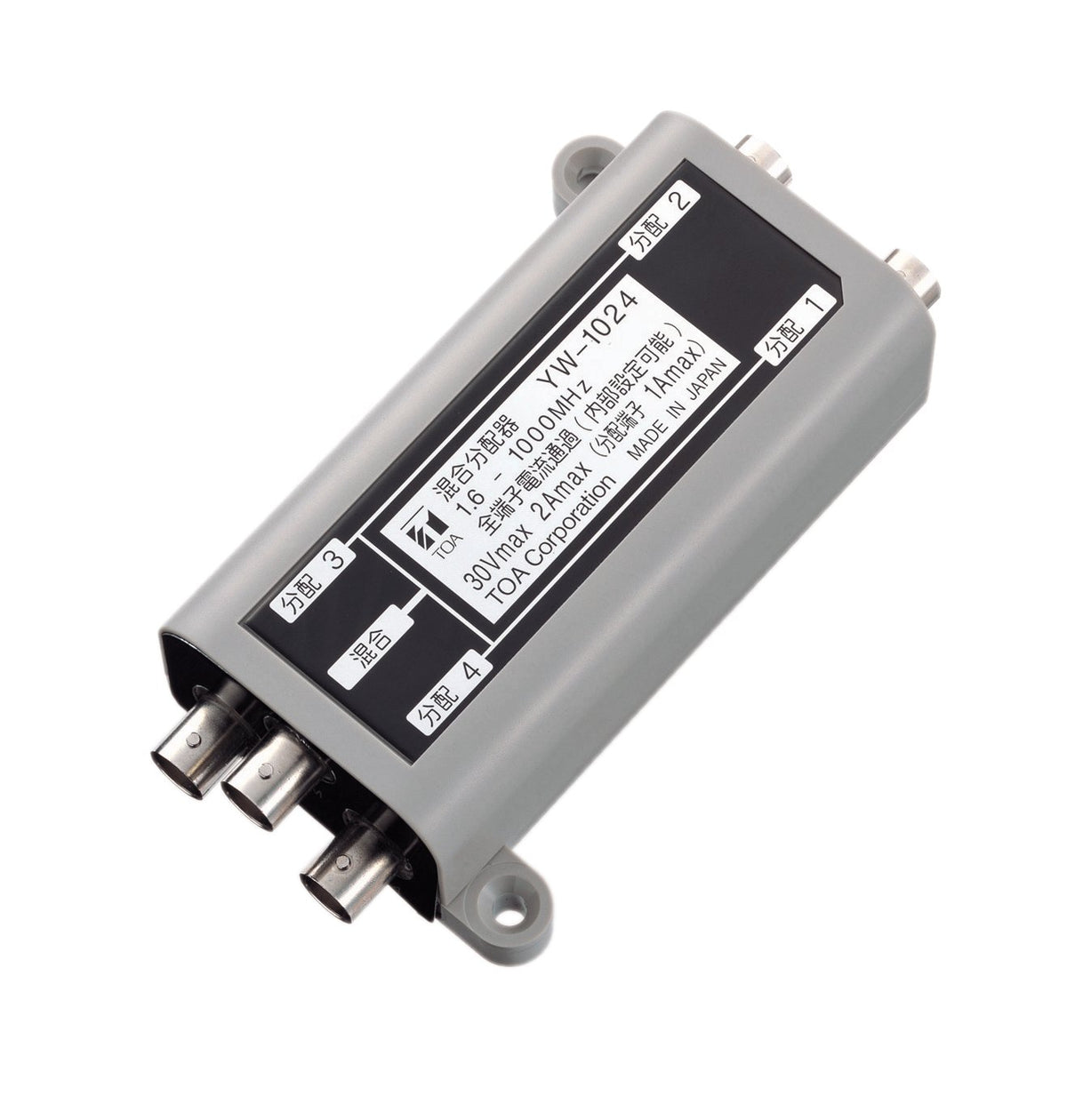

TOA Electronics YW-1024 Y | 4-Way Infrared Antenna Distributor for TS905 or TS907 Transceivers
Regular price
$380.03
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
TOA Electronics YW-1024 Y | 4-Way Infrared Antenna Distributor for ...
Regular price
$380.03
Unit price
Brand: Toa Electronics Inc.
|
SKU:
801671
Regular price
$380.03
Unit price
Shipping calculated at checkout.
Description
Description
Infrared Antenna Distributor that enables signal flow between up to four TOA TS-905 / TS-907 infrared transceivers. Designed for infrared conference systems.
The YW-1024 acts as a distributor that can work in the frequency range of 1.6 to 1000MHz (except 50 to 70MHZ bands). Power passing type permits easy power supply.
Specifications
Specifications
Includes
- ?xing wood screw (4.1 X 25) x2
Specifications
- Frequency Range: 1.6 — 1000MHz (excluding 50 — 70MHz)
- Distribution Loss: 8.5dB ± 3dB (between the Mixing and each Distribution terminals)
- Input / Output Impedance: 75?
- Coaxial Connector Mixing terminal: BNC jack, power passing type (30VDC or less, 2A or less)
- Distribution 1 — 4 terminals: BNC jack, power passing type (30VDC or less, 1A or less)
- Operating Temperature: —10°C to + 50°C
- Finish: ABS resin, gray
- Dimensions 75mm (W) X 122mm (H) X 34mm (D)
- Weight: 120g
Additional Specifications
| UNSPSC Code | 52161600 |
|---|
