Description
Description

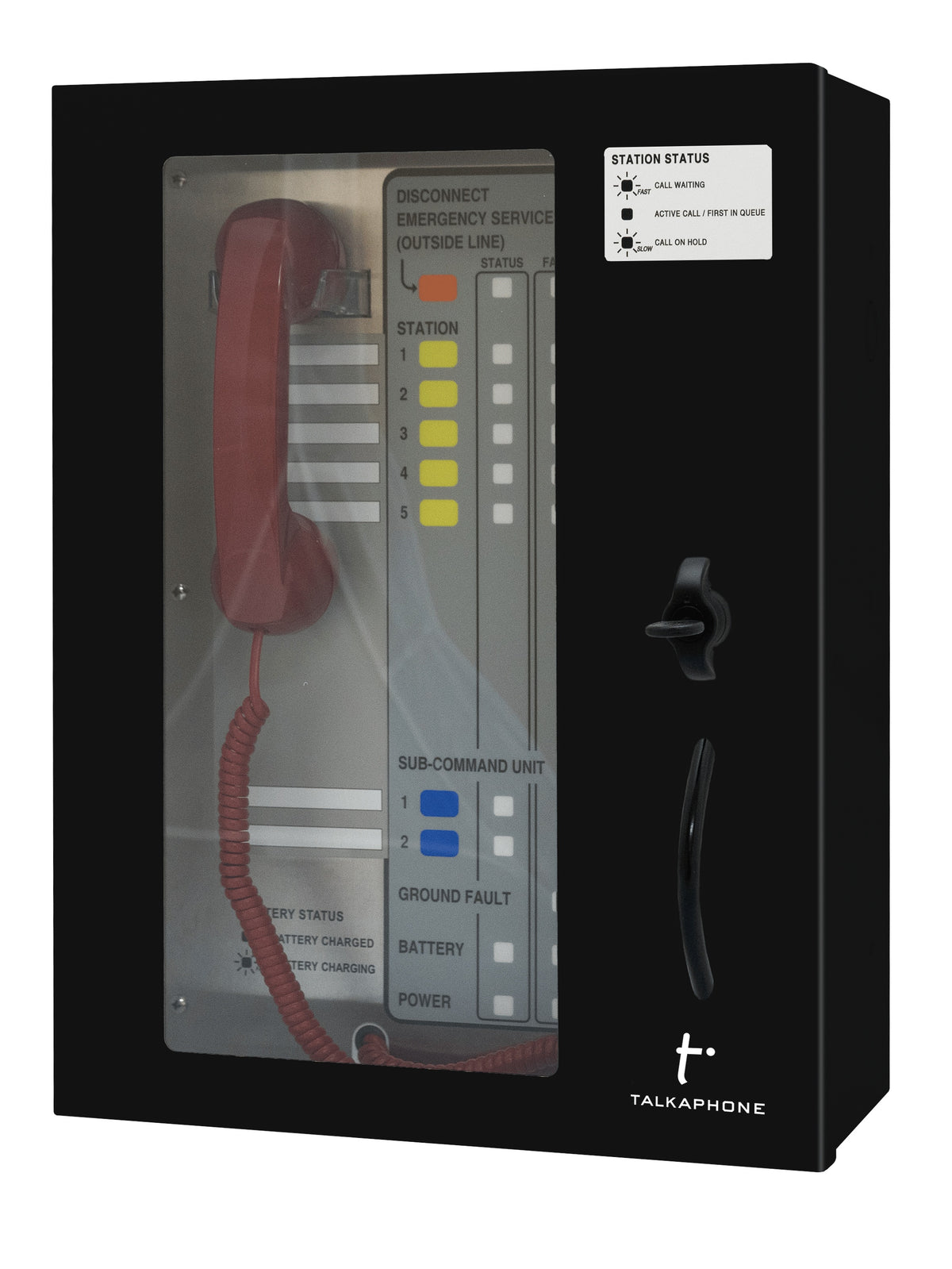

Talkaphone's new fully integrated fixed station analog command units accommodate up to five (5) ADA-compliant Area of Refuge stations. The units provide both audible and visual indications for an incoming call - LED lights indicate the calling location. AOR command units are fully compliant with the NFPA 72 (2022) §24.10, IBC (2021) §1009, ICC A117.1 (2017) Ch. 7, and ADAAG (2010) Ch. 7. This Command Unit is secured behind a door and keyed latch for use by authorized personnel.
Talk-A-Phone - AOR-5-DKL - Features
- Command Unit is secured behind a door and keyed latch for use by authorized personnel
- Automatically and continuously supervises for integrity (opens, shorts, and system ground fault), low battery backup, and 24VDC input power fail alerts by relay output to an addressable fire panel, LED, and sounder
- On-site calling requires no outside phone line
- Off-site calling requires one (1) analog phone line (PSTN line)
- Solid LED indicates active call. Flashing LEDs indicate stations that are waiting to be answered. When first call is completed, second call is automatically placed and Command Unit rings. Multiple calls are placed in queue on a "first-in, first-out (FIFO)" basis.
Specifications
Specifications
Talk-A-Phone - AOR-5-DKL - Specifications
| SKU | AOR-5-DKL |
|---|---|
| Manufacturer | Talk-A-Phone |
| Type | Area Of Refuge / Rescue Command Unit |
| UNSPSC Code | 43191500 |
Documents and Downloads
Documents and Downloads
