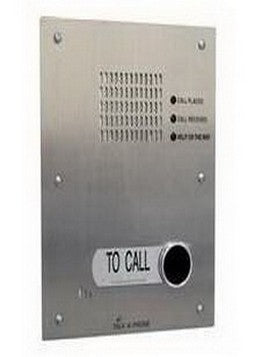

Talk-A-Phone VOIP-500C Single Button Native VoIP Assistance Phone

The VOIP-500C is an outdoor-rated, ADA-compliant hands-free Voice over IP (VoIP) Emergency Phone for use in locations such as: parking facilities, college campuses, medical centers, and industrial parks.

Features

Unit can be paged remotely by security as part of Talk-A-Phone's Wide-Area Emergency Broadcast System (requires WEBS Contact® software)

Ethernet connectivity and full IP compatibility with existing routers and LAN infrastructure

Embedded Layer 2 switch with two Ethernet ports

Supports standard SIP protocol

Configuration and firmware upgrades through Web GUI

Power over Ethernet (PoE, 802.3af), 12V DC, 24V AC/DC

Cast metal raised letter and Braille signage for ADA compliance

Vandal resistant stainless steel faceplate 1.5" diameter metal button painted with UV-resistant finish

Auxiliary inputs and outputs to integrate with CCTV, LED Blue Lights, Scream Alert®, Gates and other Access Points

Three LED indicators for hearing impaired (call placed, call received, help on the way)

Built-in auto-dialer can dial six numbers: if first number doesn't answer or is busy, dials next number

Auto-answer allows security to monitor and initiate calls with Emergency Phone

Automatically identify attendant of location of calling phone by recorded message

Specs

Manufacturer Talk-A-Phone

Condition New

Construction: 12 gauge (2.8mm) #4 brushed stainless steel faceplate

Dimensions: Front Panel: 9.5 (241) W x 11.75 (298) H in (mm) Back Box: 6.4 (163) W x 9.75 (248) H x 2.71 (69) D in (mm)

Storage Temperature: -40º F to +149º F (-40º C to +65º C)

Operating Temperature: -40º F to +131º F (-40º C to +55º C)

Relative Humidity: Up to 95% non-condensing

Protection: Circuit board conformal coated

Mounting: Flush mount (surface mount options available)

Communication: Full Duplex 2-way hands-free communication

Digit Capacity: Up to 30 digits, including pauses, for each of six phone numbers

Call Control Signaling: SIP (RFC3261 compliant)

Audio Codecs: G.711 PCM a-Law @ 64kbps, G.711 PCM u-Law @ 64kbps, G.729a, G.723.1a

Power Source: +12VDC (800mA), +24VAC/DC (500mA), or PoE (+36VDC to 57VDC, 250mA)

Auxiliary Contacts: 3 Aux Inputs: dry contact, 10mA @ 8VDC

3 Aux Outputs: dry contact, 120mA @ 120VAC/DC

Network: 10/100 BaseT Ethernet, RJ45 connectors

Programming: Non-volatile Flash Memory programming and configuration through Web GUI

Configuration: Static IP address provisioning and DHCP client. Monitoring via Syslog application

Wiring Requirements: Cat 5e or better
