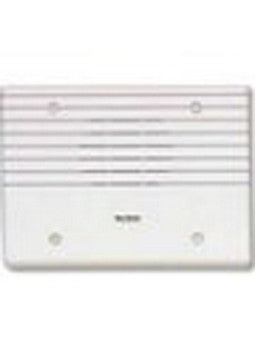

Tektone Sound & Signal IR300E | Multipurpose Station

The IR300E Multipurpose Station provides for audible, visual and digital communications to and from the Tek-CARE300II central equipment (CE) when receiving or sending signals to remotely connected devices.

The IR300E includes inputs for contact closures and all types of emergency call switches for these systems.

It also provides outputs to speakers or paging amplifiers, and dome or zone lamps.

It does not have the controls, LEDs, or speakers normally associated with patient, staff or duty stations.Some practical applications for the IR300E are as follows: provides input for code emergency call stations in an ICU; a PA amplifier interface for the nurse call master; a control point for exit/entry doors and narcotics cabinets; provides input for bath emergency call switches in public bath areas; provides input/output to a remote door intercom station for access control.

Tektone Sound & Signal - IR300E - Features

• UL 1069 Listed
• Supervised
• Microprocessor design
• Solid-state multiplex circuitry
• Simplified multiplex wiring using plug-in connectors
• Flame-retardant (UL 94V-0) plastic faceplate

Tektone Sound & Signal - IR300E - Specifications

Manufacturer	TekTone Sound & Signal Mfg., Inc
Manufacturer Part Number	IR300E
Product Model	IR300E
Product Name	IR300E Multipurpose Station
Product Type	Nurse Call Multipurpose Station
Connectivity Technology	Cable
Depth	2.8"
Height	4.5"
Width	6.4"
Application/Usage	Access Control, Door Entry, Emergency, Intercom Sub Station, Nurse Call System, Public Bath Area
UNSPSC Code	46171600
