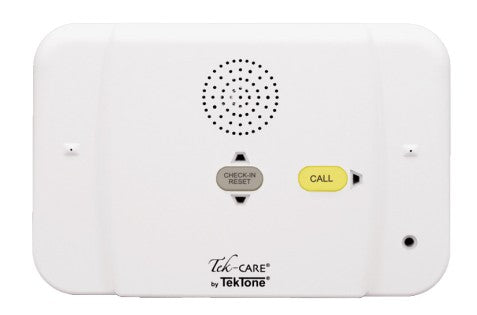

As a Staff Station, the IR330 provides reliable full-duplex, hands-free communication between the nurse master station and utility room, examination rooms, staff break rooms, or any location where staff members may need to originate calls or where call cords or pillow speakers are not required. Calls are placed using either the customizable staff emergency button or the staff call button. Multicoloured LEDs on the panel indicate that a call has been placed and that the intercom is in use. As an additional feature, the staff station is field programmable to function as a patient station, if desired.
Tektone Sound & Signal - IR330 - Features
- Two push buttons: Call and Reset
- Tri-color LEDs for call indication
- Master call tones for duty annunciation
- Program as a Staff or Duty Station
- No visible mounting screws
- Fully supervised wiring to the station hub
Specifications
Specifications
Tektone Sound & Signal - IR330 - Specifications
| Manufacturer Part Number (MPN) | IR330 |
|---|---|
| Brand Name | Tektone Sound & Signal |
| Item Description | IR330 Staff/Duty Station |
| Dimensions | (122 mm × 187 mm × 64 mm) |
| Construction | Flame-retardant (UL®94V-0 plastic faceplate |
| Speaker | 1.57" Diameter (40 mm) |
| Wiring | Control and power over CAT6 cable |
