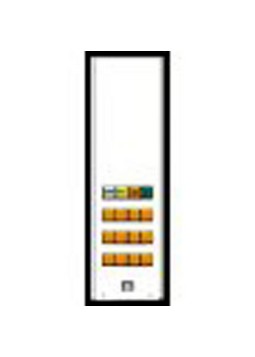

Tektone Sound & Signal NC110/12 | 12 Lite Panel

TekTone's Tek-CARE NC110 series Audible-Visual Nurse Call System provides audible and visual call indication without the use of intercom communications.

The basic system consists of a master annunciator/control panel, room call stations, emergency call stations, dome lights, zone lights, control unit, and power supply equipment.Emergency signals are identified at the master station by a rapid flashing of the associated station indicator light, call light, and emergency light; in addition to a rapid pulsating tone.

Routine calls are indicated by the steady illumination of the station selector light, call light, and a slow pulsating tone.

The tone may be canceled for normal calls by depressing the tone-off button.

Emergency calls take precedence over Routine calls.

Call signals can be canceled at point of origin only.Tone-Off and Tone-Test functions are push button selected from the control panel.

Indicator lights signal the presence of Emergency or Routine calls

Tektone Sound & Signal - NC110/12 - Features

• UL 1069 Listed
• Electronic DC buzzer
• Tone-Off and Tone-Test functions
• Emergency and Routine call signaling
• Modular design
• Protected markings

Tektone Sound & Signal - NC110/12 - Specifications

Manufacturer	TekTone Sound & Signal Mfg., Inc
Manufacturer Part Number	NC110/12
Product Name	NC110 Nurse Call Master Station
Product Series	NC110
Product Type	Nurse Call Master Station
Product Material	Extruded Aluminum
Application/Usage	Call Station, Control Panel, Emergency, Master Control Unit, Power Supply, Signaling System
UNSPSC Code	46171600
