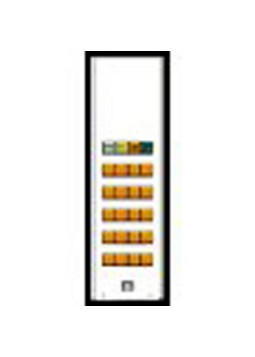

Tektone Sound & Signal NC110/20 | 20 Lite Panel
Description
Description
TekTone's Tek-CARENC110 series Audible-Visual Nurse Call System provides audible and visual call indication without the use of intercom communications.
The basic system consists of a master annunciator/control panel, room call stations, emergency call stations, dome lights, zone lights, control unit, and power supply equipment.Emergency signals are identified at the master station by a rapid flashing of the associated station indicator light, call light, and emergency light; in addition to a rapid pulsating tone.
Routine calls are indicated by the steady illumination of the station selector light, call light, and a slow pulsating tone.
The tone may be canceled for normal calls by depressing the tone-off button.
Emergency calls take precedence over Routine calls.
Call signals can be canceled at point of origin only.Tone-Off and Tone-Test functions are push button selected from the control panel.
Indicator lights signal the presence of Emergency or Routine calls
Tektone Sound & Signal - NC110/20 - Features
- UL 1069 Listed
- Electronic DC buzzer
- Tone-Off and Tone-Test functions
- Emergency and Routine call signaling
- Modular design
- Protected markings
Specifications
Specifications
Tektone Sound & Signal - NC110/20 - Specifications
| Manufacturer | TekTone Sound & Signal Mfg., Inc |
|---|---|
| Manufacturer Part Number | NC110/20 |
| Product Name | NC110 Nurse Call Master Station |
| Product Series | NC110 |
| Product Type | Nurse Call Master Station |
| Product Material | Extruded Aluminum |
| Application/Usage | Call Station, Control Panel, Emergency, Master Control Unit, Power Supply, Signaling System |
| UNSPSC Code | 46171600 |
