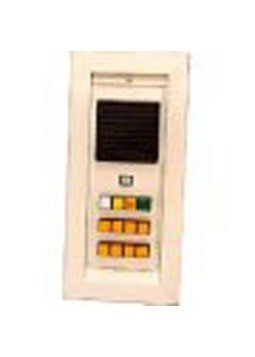

Tektone Sound & Signal NC150R | Master Station Panel, Screw Terminal Connection, Rugged Extruded Aluminum, For Rescue Assistance System

The Tek-SAFE NC150R Area of Rescue Assistance System provides communication between areas of rescue assistance (in protected stairwells) and the building lobby.

Calls are indicated at the NC150R master station by both visual and audible signals.

The master station also has talk, call and selector push buttons for two-way communication with up to eight IR150SS series remote call stations.(Larger masters are available.)

Tektone Sound & Signal - NC150R - Features

• Audible and Visual Annunciation
• Voice Communication and Monitoring
• Pushbutton Operation
• Sensitive Speaker/Microphone
• Solid-State Circuitry
• ADA Compliant
• Meets ADA requirements (check local codes for additional requirements)
• Audible and visual annunciation
• Voice communication and monitoring
• Push button operation
• Sensitive speaker/microphone
• Solid-state circuitry

Tektone Sound & Signal - NC150R - Specifications

Manufacturer	TekTone Sound & Signal Mfg., Inc
Manufacturer Part Number	NC150R
Product Line	Tek-SAFE
Product Name	NC150R Master Station Panel
Product Type	Area of Rescue Master Station
Depth	4.3"
Height	13.3"
Material Details	Rugged Extruded Aluminum: Construction
Width	6.3"
Product Material	Extruded Aluminum, Rugged Aluminum
Form Factor	Flush Mount
Application/Usage	Building, Lobby
Compatibility	TekTone IR150SS Series Remote Call Stations
UNSPSC Code	52161600

Tektone Sound & Signal - NC150R - Documents and Downloads

Tektone Sound & Signal NC150R Spec Sheet	Click to View
Tektone Sound & Signal NC150R Product Data Sheet	Click to View
