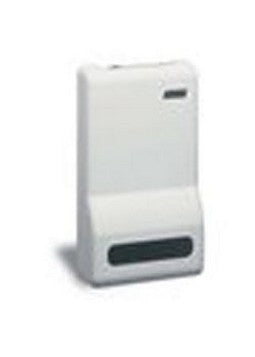

Tektone Sound & Signal NC377/32 | Paging Interface 32 Points
Description
Description
The NC377 Voltage Interface (Paging Interface Adapter) is used with TekTone NC110, NC150 and NC200 hardwired nurse call systems to add radio pocket paging.
The interface is connected between the nurse call system and the radio pocket pager transmitter.
The NC377 Voltage Interface detects calls, determines priority, and then sends information to the NC365B or NC369 Paging Transmitter.
Program call points so that calls are sent to the appropriate pager.
Information sent includes call type and room number.
The pager stamps )the time and date.
The NC377 Voltage Interface may also be used to connect a non-TekTone system or an NC110, NC150 or NC200 hard-wired nurse call system to TekTone's Tek-ALERT Integration Manager.
Specifications
Specifications
Tektone Sound & Signal - NC377/32 - Specifications
| Manufacturer | TekTone Sound & Signal Mfg., Inc |
|---|---|
| Manufacturer Part Number | NC377/32 |
| Product Name | NC377/32 Voltage Interface |
| Product Series | NC377 |
| Product Type | Paging Adapter |
| Package Contents | NC377-Series Voltage Interface Power Cord and Separate AC Adapter Mounting Hardware CA377 Gray Crossover cable with 8P8C Connectors CA132 Red Patch Cable With 8P8C Connectors (Used To Connect Slave To Slave) |
| Compatibility | TekTone: NC110 NC150 NC200 |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| UNSPSC Code | 39120000 |
