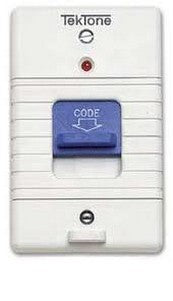

Tektone Sound & Signal SF156B | Code Station

The SF156B Code Station is used to operate all system code signals (except supervised code blue applications).

It may be used independently or connected with other call stations.

Placing a code call is accomplished by pulling the slideswitch located at the center of the panel to the down position.

Returning the slide-switch to the up position cancels the call.

Tektone Sound & Signal - SF156B - Specifications

Manufacturer	TekTone Sound & Signal Mfg., Inc
Manufacturer Part Number	SF156B
Product Model	SF156B
Product Name	SF156B Code Station
Product Type	Pull Station
Gang Type	Single Gang
Print/Message	Code
Depth	0.8"
Height	4.5"
Product Material	Plastic
Width	2.8"
Application/Usage	Nurse Call System
Compatibility	TekTone PK153 Third Priority Control Unit TekToneTek-CARE Nurse Call Systems: NC110 NC150 NC200
Certifications & Standards	UL 1069 Listed UL 94V-0 UL File Number E71599
UNSPSC Code	46171600
