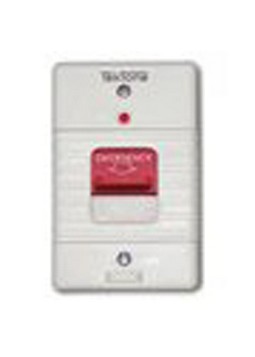

Tektone Sound & Signal SF340B | Emergency Switch, Single Gang

The SF340B Emergency Switch is for use in any location where activation of an emergency signal is required.

All electronic components are mounted on a circuit board.

The specially mounted LED is completely sealed in plastic.Due to the flexibility of its design, the SF340B may be used as a pull cord emergency switch, a pull down activated emergency switch, or a staff assist emergency call switch.

The pull cord supplied may be used for emergency call activation or, if desired, the large 1.1" (28 mm) red pulldown lever may be used.Dome light and system annunciation vary according to the manner in which the SF340B is connected.

Tektone Sound & Signal - SF340B - Features

• UL 1069 Listed
• Simple and flexible operation
• Call-placed indicator
• Call cancel at point of origin
• Flame-retardant (UL 94V-0) plastic faceplate
• 1.1" (28 mm) wide pull-down lever
• Washable TPU plastic pull cord kit is included

Tektone Sound & Signal - SF340B - Specifications

Manufacturer	TekTone Sound & Signal Mfg., Inc
Manufacturer Part Number	SF340B
Product Model	SF340B
Product Name	SF340B Emergency Switch
Product Type	Pull Station
Features	Surface Mount,Emergency
Print/Message	Pull Down
Gang Type	Single Gang
Depth	1.6"
Height	4.5"
Product Material	Plastic
Width	2.8"
Certifications & Standards	UL 1069 Listed cULUS
Package Contents	SF340B Emergency Switch Washable TPU Plastic Pull Cord Kit
Compatibility	Tek-CARE 400 P5 Nurse Call System Tek-CARE 300II Nurse Call System
UNSPSC Code	46171600

Tektone Sound & Signal - SF340B - Documents and Downloads

Tektone Sound & Signal SF340B Product Data Sheet

Click to View
