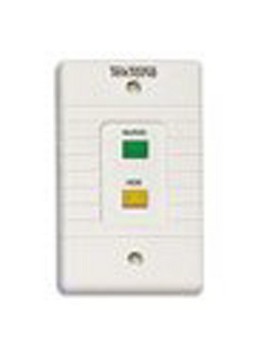

Tektone Sound & Signal SF350B | Presence Station

The SF350B Presence Station provides push button registration of nurse presence (green LED indication), or aide presence (yellow LED indication) at remote locations.

The nurse/aide presence indicator unit can also be used to transfer nurse follower feature from room to room as nursing staff proceeds with rounds.

Depressing the nurse presence registration button automatically transfers indication of all subsequent patient calls to the remote location of the nurse, as well as to the master station.

Plugin connectors provide for simple wiring.

Tektone Sound & Signal - SF350B - Features

• UL 1069 Listed
• Push button and green LED for nurse presence indication
• Push button and yellow LED for aide presence indication
• Automatic nurse follower transfer
• Flame retardant (UL 94V-0) plastic faceplat

Tektone Sound & Signal - SF350B - Specifications

Manufacturer	TekTone Sound & Signal Mfg., Inc
Manufacturer Part Number	SF350B
Product Model	SF350B
Product Name	SF350B Presence Station
Product Type	Push Button
Compatibility	Tek-CARE 400 P5 Nurse Call System Tek-CARE 300II Nurse Call System
Features	Surface Mount
Print/Message	Aide, Nurse
Gang Type	Single Gang
Depth	1.5"
Height	4.5"
Product Material	Plastic
Width	2.8"
Application/Usage	Nurse Call System
Certifications & Standards	UL 1069 Listed UL 94V-0
UNSPSC Code	46171600

Tektone Sound & Signal - SF350B - Documents and Downloads

Tektone Sound & Signal SF350B Product Data Sheet

Click to View
