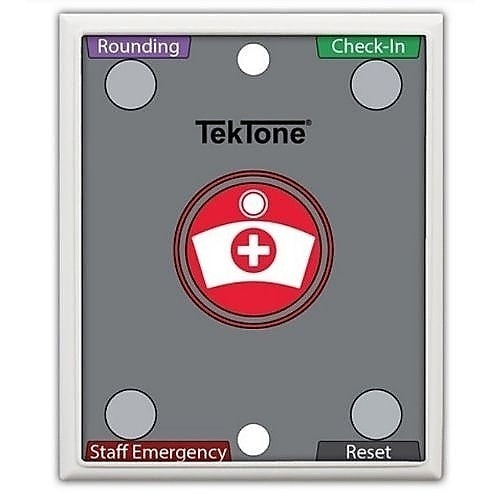

Tektone Sound & Signal SF573 | Sound & Signal Wireless Call Point

The SF573 is a wireless, surface-mountable station that includes a Call button, a pull cord, an LED for call indication, and a Reset button. The SF573 also has three additional call buttons for Staff Emergency, Check-In, and Rounding. When a call is placed, it annunciates on any master stations, duty stations, staff apps, and monitors installed on the TekCARE system zoned to display the call. The SF573 stations are configured using the LS450 Config Tool software. By default, the push button and handset place an "Emergency" call.

Tektone Sound & Signal - SF573 - Features

• Call and Reset button
• IP65 Water resistant
• In addition to the Call button, buttons are provided for Staff Emergency, Check-In, and Rounding
• Includes screws, anchors, and a wall-mount bracket
• Long-lasting and replaceable battery
• Low battery indication
• Optional pull cord (SF574) installed

Tektone Sound & Signal - SF573 - Specifications

Dimensions:	4.2"H × 3.4"W × 0.86"D, (106 mm × 87 mm × 22 mm)
Connections:	RJ12 4P4C jack for SF574
Battery:	BA007 ×2 (CA2477)
Mounting:	Surface-mounted; attach back plate to a standard plastic single-gang ring or single-gang box. Do not use the metal rings or boxes as it interferes with the wireless signal.
Construction:	PC board with quality electronic components.

Tektone Sound & Signal - SF573 - Documents and Downloads

Tektone Sound & Signal SF573 Data Sheet	Click to View
Tektone Sound & Signal SF573 User Manual	Click to View
