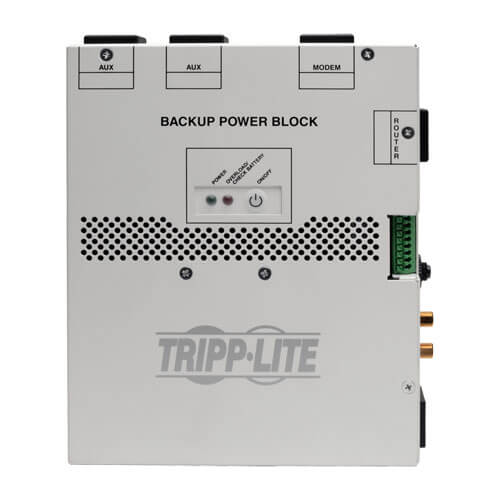

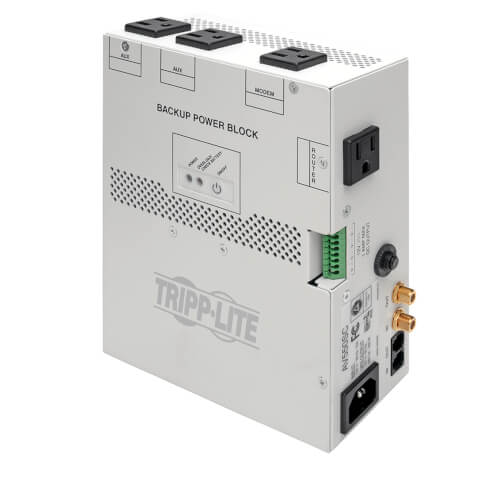

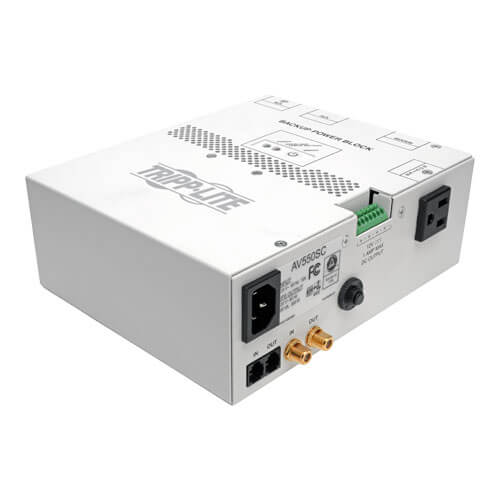

Tripp-Lite AV550SC | 550VA Audio/Video Backup Power Block - Exclusive UPS Protection for Structured Wiring Enclosure
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite AV550SC | 550VA Audio/Video Backup Power Block - Exclusi...
Description
Description
The AV550SC Backup Power Block provides the highest level of protection for structured cabling installations (ie. telephone, Internet and coax connections). With reliable battery backup, surge protection and EMI/RFI line noise filtering, the AV550SC provides a complete protection solution for audio/video distribution systems by supporting modems, routers, RF amplifiers, network interfaces, cameras, modulators and other equipment through all power problems. In the event of a power failure, the AV550SC includes an auto-restart feature that eliminates the need to perform an on-site restart. In addition, when a modem or router freeze-up occurs, the AV550SC features a recycle/reset button with sequential outlet startup for proper modem and router rebooting.
Features
- 3 widely-spaced AC outlets (2 Auxiliary, 1 Modem) power, reset or start up connected equipment during a blackout or system freeze-up (provide battery backup, surge protection and EMI/RFI filtering) - 4 outlets total
- Convenient installation designed to fit in the bottom left corner of structured wiring enclosures without the need for mounting screws or brackets
- 60-second delay-on AC outlet (router) powers and resets the router during a blackout or system freeze-up and delays router start-up for proper system rebooting (provides battery backup, surge protection and EMI/RFI filtering)
- 12V DC (1-Amp) output connector provides an additional output power source for 12V DC devices as well as battery backup protection for 4 devices
- Recycle/reset button resets connected equipment during system freeze-ups with sequential outlet startup
- HD-compatible 2.2GHz coax jacks protect connected coax lines against surge damage and filter disruptive EMI/RFI line noise.
- Tel/modem/DSL jacks protect connected telephone,modem or DSL lines against surge damage and filter disruptive EMI/RFI line noise
- IEC power input connector accepts included 6-inch power cord
- Diagnostic/Overload LEDs: Alert users to potential power problems before they affect connected equipment.
- Resettable circuit breaker prevents dangerous system overloads
- Auto-restart capability eliminates the need to perform an on-site restart
- 550VA/300 watts standby UPS system

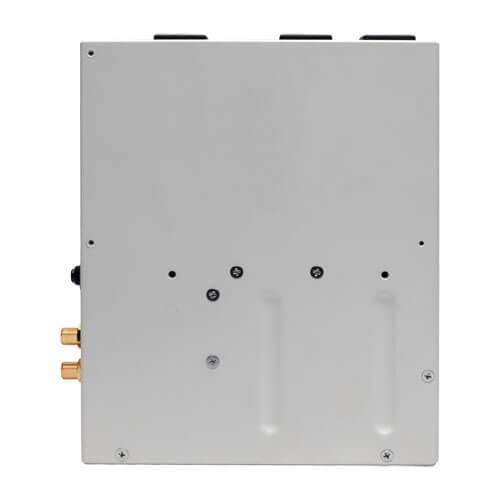

- Mounting screw holes are included on the back of the unit for convenient board, wall or ceiling mounting (for projectors)
- Customizable labels for easier cord/cable indentification and maintenance
Special Features
| High Availability UPS Features | Surge/noise protection |
|---|---|
| Green Energy-Saving Features | High efficiency economy mode operation; Greater than 95% efficiency - GREEN UPS |
Specifications
Specifications
Overview
| UPC Code | 37332138699 |
|---|---|
| UPS Type | Standby |
Input
| Rated input current (Maximum Load) | 10A |
|---|---|
| Nominal Input Voltage(s) Supported | 120V AC |
| UPS Input Connection Type | 5-15P; C14 inlet |
| UPS Input Connection Description | 5-15P input cable is detachable via C14 inlet on UPS |
| Input Circuit Breakers | 10A |
| UPS Input Cord Length (ft.) | 0.5 |
| Recommended Electrical Service | 15A 120V |
| Input Phase | Single-Phase |
| Right-Angle Plug | No |
Output
| Output Volt Amp Capacity (VA) | 550 |
|---|---|
| Output Watt Capacity (Watts) | 300 |
Battery
| Battery Type | Valve Regulated Lead Acid (VRLA) |
|---|---|
| Full Load Runtime (min.) | 3.1 min. (300w) |
| Half Load Runtime (min.) | 9.7 min. (150w) |
| Expandable Runtime | No |
| DC System Voltage (VDC) | 12 |
| Battery Recharge Rate (Included Batteries) | 1.5A Maximum; Less than 3 hours from 10% to 90% |
User Interface, Alerts & Controls
| Switches | Includes 1 on/off push button (also acts as recycle/reset button) |
|---|---|
| LED Indicators | 2 LEDs indicate power status and overload/low battery status |
Dataline Surge Suppression
| Telephone/DSL Protection | Yes |
|---|---|
| Cable (Coax) Protection | Yes |
| Network (Ethernet) Protection | No |
Physical
| Installation Form Factors Supported with Included Accessories | Wallmount |
|---|---|
| Primary Form Factor | Desktop |
| Primary UPS Depth (mm) | 76 |
Environmental
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
|---|---|
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Relative Humidity | 0 to 95%, non-condensing |
| AC Mode BTU / Hr. (Full Load) | 31 |
| AC Mode Efficiency Rating (100% Load) | 97% |
Communications
| Communications Interface | None |
|---|
Line / Battery Transfer
| Transfer Time | 4 milliseconds |
|---|---|
| Low Voltage Transfer to Battery Power (Setpoint) | 99V |
| High Voltage Transfer to Battery Power (Setpoint) | 139V |
Standards & Compliance
| UPS Certifications | Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI); Meets FCC Part 68 / Industrie Canada (telecommunications); ROHS (Restriction of Hazardous Substances) |
|---|---|
| Certification Details | Series Number (s) AGBC6650; Agency Standard Tested UL 1778: 2014 R8.15 (5TH EDITION); Canadian Approvals CAN/CSA-C22.2 NO. 107.3-14; EMI Approvals FCC CLASS B |
