Brand: Tripp-Lite
|
SKU:
565081

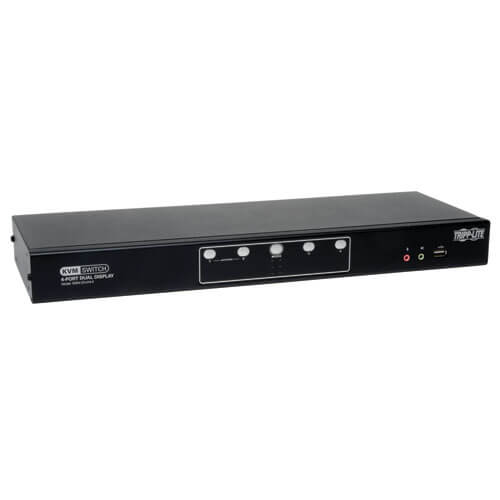

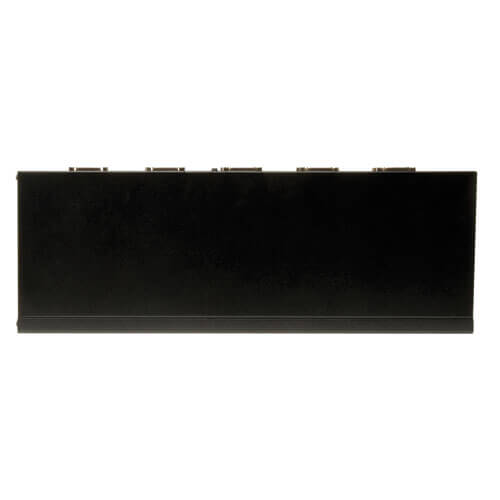

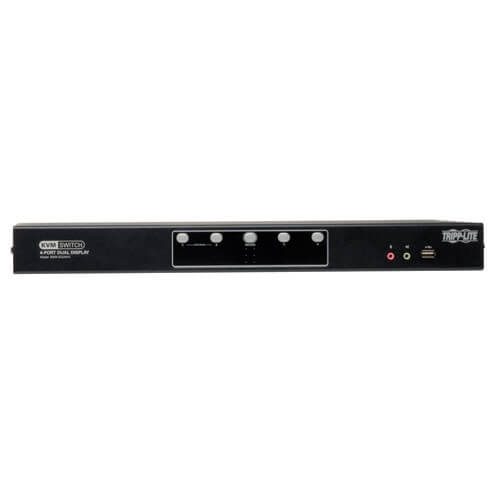

Tripp-Lite B004-2DUA4-K | 4-Port Dual Monitor DVI KVM Switch with Audio and USB 2.0 Hub, Cables included
Regular price
$670.25
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite B004-2DUA4-K | 4-Port Dual Monitor DVI KVM Switch with A...
Regular price
$670.25
Unit price
Brand: Tripp-Lite
|
SKU:
565081
Regular price
$670.25
Unit price
Description
Description
Control four computers with Dual Head DVI Video Cards via a single set of Keyboard, Mouse, and Dual Displays
Features
- 4-Port Dual Display DVI KVM switch with Audio and USB 2.0 Hub, Cables included
- Quad-View Mode allows computers with three- or four-head video cards to share KVM, audio and USB peripherals by connecting two Dual Display KVM switches together
- Built-in 2-Port USB 2.0 hub allows for the sharing of USB devices (flash drives, web cam, etc.) amongst the connected computers
- A powered USB hub may be connected to one of the USB ports to increase the number of connected peripherals
- 3.5 mm Mini Stereo jacks provide Speaker (2.1 stereo sound) and Microphone support to the connected computers
- Additional console audio jacks are conveniently located on the front panel of the KVM switch, making them ideal for use with IP phones
- Switch between connected computers via front panel pushbuttons, keyboard hotkeys, and a function that allows for switching via your mouse's scroll wheel
- Switch the KVM, USB, and Audio functionality all at the same time, or separately. KVM control can be fixed on one computer, while the USB 2.0 hub and/or Audio functionality is fixed on another
- Auto Scan mode allows you to scan the connected computers without having to manually switch between them
- DVI-I connectors support both Dual Link digital resolutions up to 2560 x 1600, and analog resolutions up to 2048 x 1536
- Connect a VGA monitor or computer port by using a P556-Series DVI to VGA adapter cable instead of the included DVI-D cables.
- Compatible with all major operating systems; Windows, Mac, Linux, Sun
- Supports 3D graphics and gaming
- Supports hot plugging – Computers and devices can be unplugged and re-plugged without having to shut down the KVM switch
- The KVM switch stores the EDID (Extended Display Identification Data) of the connected monitors, which ensures optimal display resolution and prevents any delay or change in video resolution when switching between or booting computers
- Full time DDC support provides the necessary EDID information for optimal video performance on Windows 7 and other operating systems
- Supports VESA DDC2B emulation and TMDS signal pass-through
- LEDs provide for easy monitoring of the connected computers
- Power-On-Detection recognizes when a connected computer has been powered-off and automatically switches to the next powered-on computer
- HDCP compliant
- Complete keyboard emulation for error-free booting
- Quick installation without the need for software
- Sun/Mac keyboard support and emulation
- Firmware upgradeable
- Compliant with CE, FCC, RoHS and REACH
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Features & Specifications
| Autoscan (Y,N) | Y |
|---|---|
| Autoscan Duration | 1-99 Seconds |
| Number of Users | 1 |
| NIAP-Certified Secure | No |
Specifications
Specifications
Overview
| UPC Code | 37332180339 |
|---|---|
| Max CPU | 4 |
| Technology | USB 2.0 (High Speed); DVI; USB; Stereo Audio |
Video
| Max Supported Video Resolution | 2560 X 1600 @60Hz (DIGITAL), 2048 X 1536 @60Hz (ANALOG) |
|---|
Input
| Voltage Compatibility (VAC) | 100; 110; 120; 127; 200; 208; 220; 230; 240 |
|---|---|
| External Power Supply Plug(s) | NEMA 1-15P North America |
Power
| External Power Supply Input Specs (V / Hz / A) | 100-240V~50/60Hz; 0.5A |
|---|---|
| External Power Supply Output Specs (V / A) | 5.3V/2.4A |
| External Power Supply Cord Length (ft.) | 5 |
| External Power Supply Certifications | FCC; PSE; TUV; UL; cUL |
User Interface, Alerts & Controls
| LED Indicators | (x4) KVM (Orange), (x4) Audio (Green), (x4) USB (Green), (x3) Mode (1 Orange, 2 Green) |
|---|
Environmental
| BTUs | 68.42 |
|---|
Communications
| Port Control | Push Buttons, Hotkeys, OSD Mouse Switching |
|---|---|
| IP Remote Access | No |

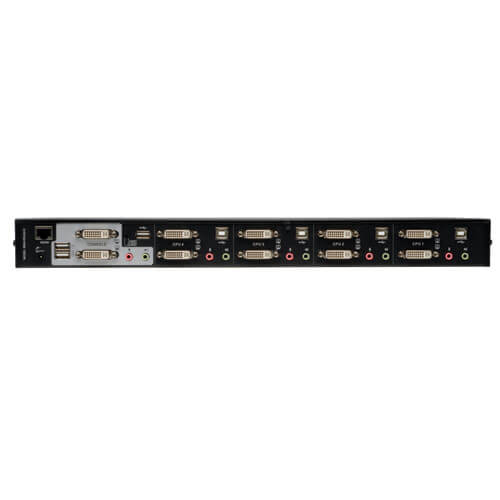

Connections
| Ports | 4 |
|---|---|
| PC/Server Connections | DVI; USB |
| Side A - Connector 1 | (8) DVI-I DUAL LINK (FEMALE) |
| Side A - Connector 2 | (4) USB B (FEMALE) |
| Side A - Connector 3 | (8) 3.5MM (FEMALE) |
| Side B - Connector 1 | (2) DVI-I DUAL LINK (FEMALE) |
Standards & Compliance
| Certifications | Compliant with CE, FCC, RoHS, REACH and the Federal Trade Agreements Act (TAA) for GSA Schedule purchases |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
