Tripp-Lite B072-008-1 | NetCommander 8-Port Cat5 KVM Switch 1U Rack...
Regular price
$506.04
Unit price
Brand: Tripp-Lite
|
SKU:
381666
Regular price
$506.04
Unit price
Description
Description

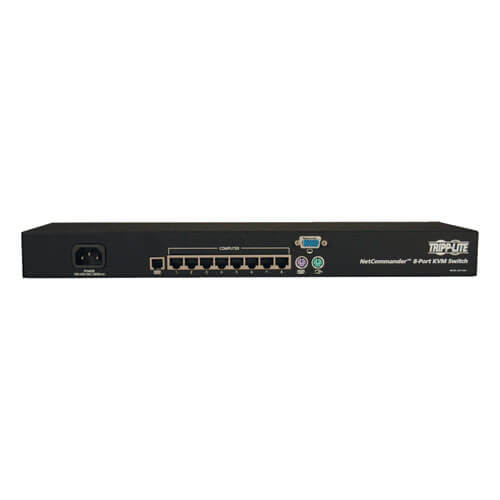

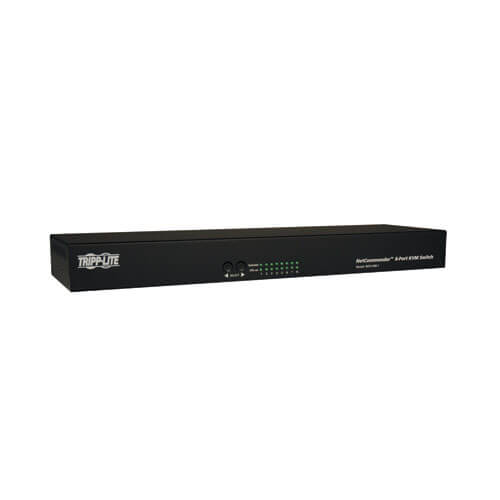

Tripp-Lite B072-008-1 | NetCommander 8-Port Cat5 KVM Switch 1U Rack-Mount
Features
- Expandable - Cascade a second level of KVM switches to control up to 128 servers from a single station
- Extend distance: between computer and switch up to 30 meters/100 ft.
- Rack mountable: sleek, 1U space saving KVM switches
- Innovative CAT5 technology: eliminate cable clutter at the rack
- Multi-layer security: protects your corporate data
- Easy server management: choice of On Screen Display, Hot-key,or push button control
- Multi-platform: PS/2 and USB support
- To convert DisplayPort or HDMI computers to VGA, use Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.
- Easily add IP functionality with Tripp Lite Model B051-000
- Add Tripp Lite Model B021-000-17 for space saving, in-the-rack, LCD, Keyboard and Mouse
- Compact Size: 17"W x 5"D x 1.75"H
- Video Resolution: 1600x1200@75Hz
- Internal Power Supply
- Compatible with all major operating systems
- Constructed of heavy-duty steel housing
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Features & Specifications
| Number of Users | 1 |
|---|---|
| NIAP-Certified Secure | No |
| On-Screen Display (OSD) | Yes |
| Port Selection | Pushbutton; Hotkey; OSD |
| Driver Required | No |
| Cat5 KVM Switch | Yes |
Specifications
Specifications
Overview
| UPC Code | 37332127532 |
|---|---|
| Console | No |
| Max CPU | 128 |
Video
| Max Supported Video Resolution | 1600 X 1200 @75 Hz |
|---|---|
| Max. Distance (Between any 2 Units) | 100 ft (30.5m) |
| Max Number of Ports (Entire Chain) | 128 |
Input
| Voltage Compatibility (VAC) | 100; 110; 120; 127; 200; 208; 220; 230; 240 |
|---|---|
| Input Frequency | 50/60Hz |
User Interface, Alerts & Controls
| LED Indicators | Green(CPU ON; SELECTED) |
|---|
Physical
| Color | Black |
|---|---|
| Material of Construction | Steel (Steel, Electrogalvanized, Cold Rolled, Coil) |
| Rackmountable | Yes |
Communications
| IP Remote Access | No |
|---|
Connections
| Ports | 8 |
|---|---|
| PC/Server Connections | VGA; USB; PS/2 |
| Side A - Connector 1 | (8) RJ45 (FEMALE) |
Standards & Compliance
| Certifications | Tested to UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1, RoHS, REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
