Tripp-Lite B114-002-R | 2-Port VGA/SVGA Video Splitter with Signal Booster, High Resolution Video, 350MHz, (HD15 M/2xF)
Tripp-Lite B114-002-R | 2-Port VGA/SVGA Video Splitter with Signal Booster, High Resolution Video, 350MHz, (HD15 M/2xF)

Tripp-Lite B114-002-R | 2-Port VGA/SVGA Video Splitter with Signal Booster, High Resolution Video, 350MHz, (HD15 M/2xF)

Tripp-Lite 2 Port Vga Splitter W/Amp
Part Number: 421047
0 Review(s)
Write a Review
Availability:
$36.00
Retail Price:$39.60
Your Savings:$3.60(9%)
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Tripp Lite's 2-Port VGA/SVGA Video Splitter provides bandwidth support at 350MHZ, allowing simultaneous display of video on 2 monitors. In addition, a built-in booster allows a video signal (up to 2048 x 1536 @ 60Hz) to be transmitted up to 210-ft. (64 m) from the source. Two standard HD15 female ports are used to connect the monitors, while the a third HD15 male port is used to connect the CPU. The splitter can be located up to 25-ft. (7.62 m) from the connected computer, and up to 185-ft. (56.38 m) from the connected monitors. The number of connected monitors can be expanded by cascading up to 3 levels of B114-002-R splitters together.


https://www.alldataresource.com/assets/images_commscope/features.jpg

Features

  • Simultaneously display video on 2 VGA/SVGA monitors
  • Ideal for video presentations or sharing information with multiple users
  • A built-in booster allows a video signal (up to 2048 x 1536 @ 60Hz) to be transmitted up to 210-ft. (64 m) from the source
  • The splitter can be located up to 25-ft. (7.62 m) from the connected computer, and up to 185-ft. (56.38 m) from the connected monitors
  • 350Mhz Bandwidth Support
  • Cascade up to 3 levels of B114-002-R splitters together to increase the number of connected monitors
  • Rugged, fully shielded metal housing



https://www.alldataresource.com/assets/images_tripplite/overview.jpg

Overview

UPC Code37332124890
Product TypeSignal Booster
AC AdapterInput: 100-240V, 50/60Hz, 0.4A; Output: 9V, 1A, 5 ft.



https://www.alldataresource.com/assets/images_tripplite/video.jpg

Video

Max Supported Video Resolution2048 x 1536 @ 60Hz
Max. Distance (Between any 2 Units)246ft (75m)
Max Number of Ports (Entire Chain)32



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Input

Voltage Compatibility (VAC)100; 110; 120; 125; 127; 200; 208; 220; 230; 240
External Power Supply Plug(s)NEMA 1-15P North America



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Power

External Power Supply Input Specs (V / Hz / A)100-240V / 50/60Hz / 0.4A
External Power Supply Output Specs (V / A)9V / 1A
External Power Supply Cord Length (ft.)5
External Power Supply Cord Length (m.)1.5
External Power Supply DC Barrel Connector SpecsOD: 5.5 x 2.1 x 12mm; Positive Pin; Negative Sleeve
External Power Supply CertificationsFCC; UL; cUL; RoHS



https://www.alldataresource.com/assets/images_commscope/specs.jpg

User Interface, Alerts & Controls

LED IndicatorsGreen (Power)



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Environmental

Operating Temperature Range32 to 122 °F (0 to 50 °C)
Storage Temperature Range-4 to 140 °F (-20 to 60 °C)
Relative Humidity0% to 80% RH, Non-Condensing
BTUs6.1 BTU/Hr
Power Consumption (Watts)1.8



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Communications

Signal Range (ft.)210
EDID CompatibleYes

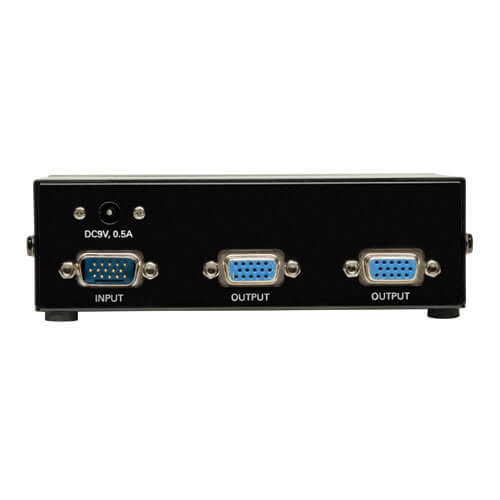

https://www.alldataresource.com/assets/images_tripplite/connections.jpg

Connections

Ports2
Side A - Connector 1HD15 (MALE)
Side B - Connector 1(2) HD15 (FEMALE)
Connector PlatingNickel



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Features & Specifications

Driver RequiredNo



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Standards & Compliance

CertificationsCE, FCC, RoHS, REACH



https://www.alldataresource.com/assets/images_tripplite/warranty.jpg

Warranty

Product Warranty Period (Worldwide)3-year limited warranty



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Owner's Manual for B114-Series Video Splitters (Multi-language)Click to View
Owner's Manual B114-002-R, B114-004-R (Multi-language)Click to View
Display Solutions Brochure 230V (English) GlobalClick to View
EC DeclarationClick to View
Download images for this productClick to View
