Brand: Tripp-Lite
|
SKU:
565171
Tripp-Lite B156-002-DVI | 2-Port DisplayPort to DVI Multi-Monitor Splitter, MST Hub, 3840 x 1200 @ 60Hz, DP1.2, TAA
Regular price
$110.06
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite B156-002-DVI | 2-Port DisplayPort to DVI Multi-Monitor S...
Regular price
$110.06
Unit price
Description
Description

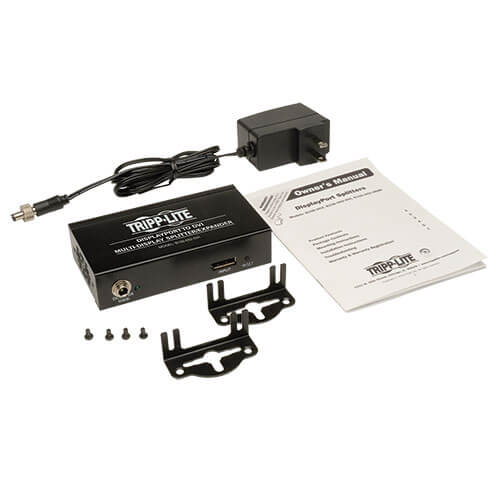

Get everyone’s attention by broadcasting awesome messages in high definition video! With Tripp Lite's B156-002-DVI 2-Port DisplayPort 1.2 to DVI MST Hub, you can split or expand a single DisplayPort signal into two separate signals and display them on two DVI monitors using standard DisplayPort (Tripp Lite P580-Series or P583-Series) and DVI (Tripp Lite P560-Series) cables. You can display the same image on each monitor, extend the desktop across them, or display in video wall mode where monitors are combined to display as one, enlarged monitor. The B156-002-DVI supports HD video resolutions up to 1920 x 1200 / 1080p @ 60Hz, 48-bit Deep Color (16 bits per channel), and is compatible with HDCP, EDID and DDC. When displaying in video wall mode, resolutions up to 1920 x 2400 (1x2) and 3840 x 1200 (2x1) are supported. It comes with an external power supply and brackets for wall-, rack- or pole-mounting. All mounting hardware is included. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Features
- Splitting, Extending, Multi-Display
- Splits or expands a DisplayPort video signal on two DVI monitors
- Display the same image on each monitor, extend the desktop across them, or display in video wall mode where monitors are combined to display as one, enlarged monitor
- Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p
- Allows for video resolutions up to 1920 x 2400 (1x2) and 3840 x 1200 (2x1) when in video wall mode
- Video Standards and Protocols
- Supports up to 48-bit Deep Color (16 bits per channel)
- Complies with HDCP, EDID and DDC
- Compatible with DisplayPort 1.2
- Compatible with Apple Thunderbolt connectors
- Installation
- Plug-and-play; no software or drivers required
- Easy to install; connect the DisplayPort video source to the hub's input port, connect the external power supply and finally connect the two DVI monitors to the output ports
- Mounting Options
- Wall-, rack- or pole-mounting; all mounting hardware is included
- TAA-Compliant for GSA Schedule Purchases
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Features & Specifications
| Displayport Specification | 1.2a |
|---|---|
| HDCP Specification | 1.3 |
| Driver Required | No |
Special Features
| MST Support | Yes |
|---|
Specifications
Specifications
Overview
| UPC Code | 37332175885 |
|---|---|
| AC Adapter | Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft. |
| Technology | DVI; DisplayPort |
Video
| Max Supported Video Resolution | 3840 x 1200 @ 60Hz |
|---|---|
| Max Supported Color Depth | 48-bit Deep Color |
| 3D Video Supported | Yes |
Input
| External Power Supply Plug(s) | NEMA 1-15P North America |
|---|
Power
| External Power Supply Input Specs (V / Hz / A) | 100-240V; 50/60Hz; 0.5A |
|---|---|
| External Power Supply Output Specs (V / A) | 5V; 2A |
| External Power Supply Cord Length (ft.) | 4.5 |
| External Power Supply DC Barrel Connector Specs | OD: 5.5 x 2.1 x 7.5mm; Positive Pin; Negative Sleeve |
| External Power Supply Certifications | FCC; UL; cUL |
User Interface, Alerts & Controls
| LED Indicators | (x2) Orange (Monitor Signal); (x1) Green (Power) |
|---|
Environmental
| Operating Temperature Range | 14 to 167 °F (-10 to 75 °C) |
|---|---|
| Storage Temperature Range | -4 to 176 °F (-20 to 80 °C) |
| Relative Humidity | 0% to 85%, Non-Condensing |
| BTUs | 14 BTU/Hr |
| Power Consumption (Watts) | 4.1 |
Communications
| EDID Compatible | Yes |
|---|
Connections
| Ports | 2 |
|---|---|

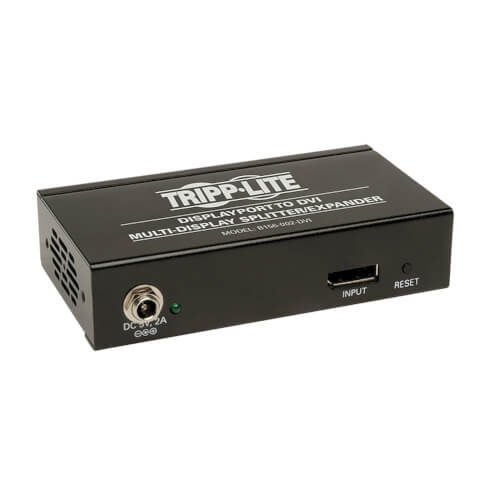

| Side A - Connector 1 | DISPLAYPORT (FEMALE) |

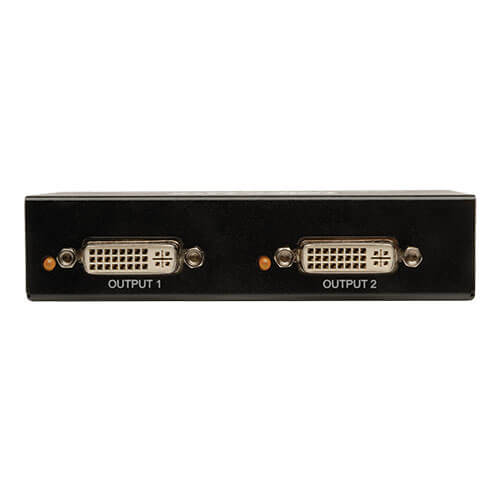

| Side B - Connector 1 | (2) DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK) |
| Connector Plating | Nickel |
| Contact Plating | Gold |
Standards & Compliance
| Certifications | FCC, RoHS, and REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
