Tripp-Lite B156-003-V2 | 3-Port DisplayPort Multi-Monitor Splitter, MST Hub, 4K 60Hz UHD, DP1.2, TAA
Regular price
$110.06
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite B156-003-V2 | 3-Port DisplayPort Multi-Monitor Splitter,...
Regular price
$110.06
Unit price
Brand: Tripp-Lite
|
SKU:
812298
Tripp-Lite B156-003-V2 | 3-Port DisplayPort Multi-Monitor Splitter, MST Hub, 4K 60Hz UHD, DP1.2, TAA
Regular price
$110.06
Unit price
Description
Description

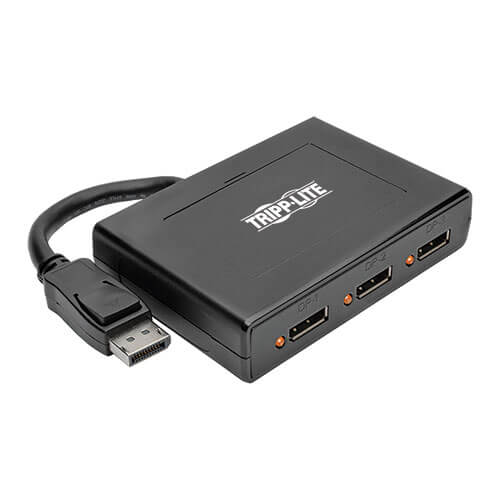

The B156-003-V2 3-Port DisplayPort 1.2 MST Hub connects up to three DisplayPort monitors to the DisplayPort output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on all three monitors, extend the desktop across them, or combine all three into one large monitor in video wall mode.
The B156-003-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports Ultra High Definition (UHD) video resolutions up to 4K @ 60Hz (3840 x 2160) with the number of 4K monitors limited according to your graphics card’s specifications. In video wall mode, this hub supports expanded resolutions, such as 5760 x 1080 in a horizontal 1 x 3 monitor configuration or 1920 x 3240 in a vertical 3 x 1 configuration.
This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It works with all operating systems. Plug-and-play convenience means no software or drivers are needed. A built-in six-inch cable connects directly to a DisplayPort source. LEDs indicate when the monitors are receiving a signal. The B156-003-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Features
- Connects Up to 3 DisplayPort Monitors to Your Computer’s DisplayPort Output
- Ideal for digital signs in schools, churches, conference rooms, trade shows and retail settings

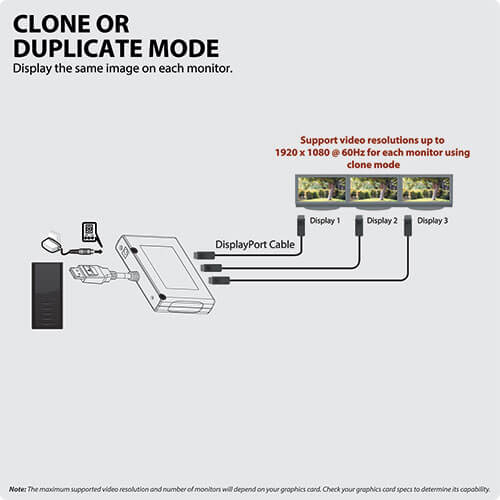

- Displays same image on 3 monitors simultaneously in mirror mode

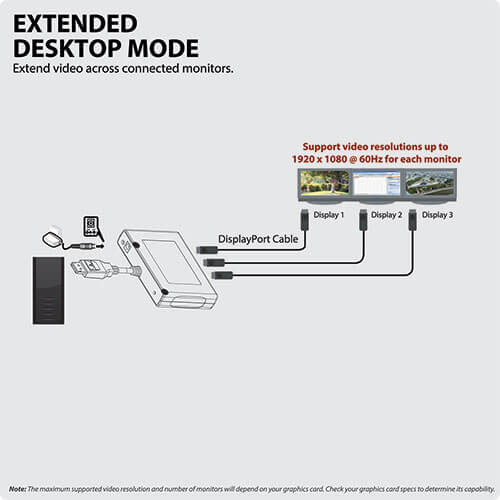

- Extends desktop across 3 monitors in extended mode

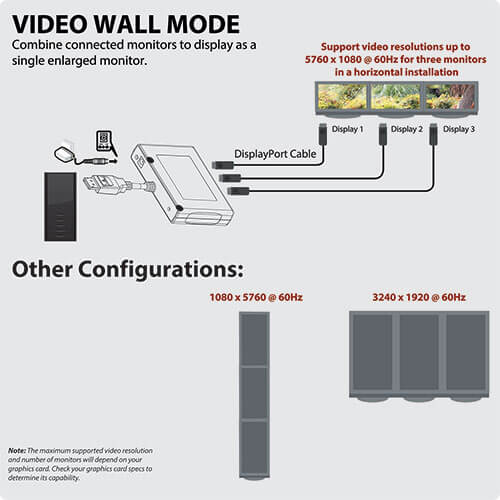

- Combines 3 monitors into one large monitor in video wall mode
- Built-in 6 in. cable connects directly to DisplayPort source
- LEDs indicate when monitors are receiving a signal
- Meets the Latest Performance Standards
- Supports UHD video resolutions up to 4K @ 60Hz (3840 x 2160)
- Supports expanded resolutions in video wall mode, such as 5760 x 1080 in horizontal 1 x 3 configuration
- Supports HDCP, EDID and DDC
- Supports 48-bit Deep Color (16 bits per channel)
- Supports DTS-HD, Dolby True HD and 7.1-channel surround sound audio
- Backward compatible with DisplayPort 1.1 and 1.1a
- Easy to Use Almost Anywhere
- Works with all operating systems
- Plug and play—no software or drivers required
- TAA Compliant
- Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Features & Specifications
| Displayport Specification | 1.2 |
|---|---|
| HDCP Specification | 1.3 |
| Driver Required | No |
Special Features
| MST Support | Yes |
|---|
Specifications
Specifications
Overview
| UPC Code | 37332193353 |
|---|---|
| AC Adapter | Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft. |
| Technology | DisplayPort |
Video
| Max Supported Video Resolution | 4K @ 60 Hz (3840 x 2160) |
|---|---|
| Max Supported Color Depth | 48-bit Deep Color |
| 3D Video Supported | Yes |
Audio
| Audio Specification | DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio |
|---|
Input
| External Power Supply Plug(s) | NEMA 1-15P North America |
|---|
Power
| External Power Supply Input Specs (V / Hz / A) | 100-240V, 50/60Hz, 0.5A |
|---|---|
| External Power Supply Output Specs (V / A) | 5V, 2A |
| External Power Supply Cord Length (ft.) | 4.5 |
Physical
| Color | Black |
|---|---|
| Material of Construction | Plastic |
| Rackmountable | No |
| Shipping Dimensions (hwd / in.) | 8.43 x 2.17 x 6.46 |
| Shipping Weight (lbs.) | 0.84 |
| Unit Dimensions (hwd / in.) | 4.3 x 3.0 x 0.9 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 0.2 |
Environmental
| Operating Temperature Range | 14 to 167 °F (-10 to 75 °C) |
|---|---|
| Storage Temperature Range | -4 to 176 °F (-20 to 80 °C) |
| Relative Humidity | 0% to 85%, Non-Condensing |
Communications
| EDID Compatible | Yes |
|---|
Connections
| Ports | 3 |
|---|---|
| Side A - Connector 1 | DISPLAYPORT (MALE) |
| Side B - Connector 1 | (3) DISPLAYPORT (FEMALE) |
| Connector Plating | Nickel |
Standards & Compliance
| Certifications | FCC, RoHS, and REACH |
|---|
