Tripp-Lite BP24V15RT2U | External 24V 2U Rack/Tower Battery Pack for select Tripp Lite UPS Systems (BP24V15RT2U)
Tripp-Lite BP24V15RT2U | External 24V 2U Rack/Tower Battery Pack for select Tripp Lite UPS Systems (BP24V15RT2U)

Tripp-Lite BP24V15RT2U | External 24V 2U Rack/Tower Battery Pack for select Tripp Lite UPS Systems (BP24V15RT2U)

Tripp-Lite 24V External Battery Pack Omni & Smart
Part Number: 565183
0 Review(s)
Write a Review
Availability:
$418.28
Retail Price:$448.80
Your Savings:$30.52(7%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

BP24V15RT2U rack/tower external battery pack offers extended battery runtime when used in conjunction with expandable 24V Tripp Lite rackmount and tower UPS systems. Includes heavy gauge cabling with high current DC connector for safe, simple installation. Included mounting accessories support 2U rackmount installation in 2 or 4 post racks, with additional support for upright tower placement. Wallmount installation option available.

Compatible with these UPS Systems - OMNIVS1500XL, OMNIVSINT1500XL, SMART1500LCDXL, SMART750RMXL2U, SMART750XLA, SU750RTXL2U, SU750RTXLCD2U, SU750XL, SU1000RTXL2UA, SU1000RTXLCD2U, SU1000XLA, SU1000XLCD, SUINT1000RTXL2UA and other Tripp Lite UPS systems that specify the use of this battery pack.


https://www.alldataresource.com/assets/images_commscope/features.jpg

Features

  • Offers extended-run UPS operation when used in conjunction with compatible 24V DC Tripp Lite UPS systems
  • Includes heavy gauge cabling with high current DC connectors for simple installation

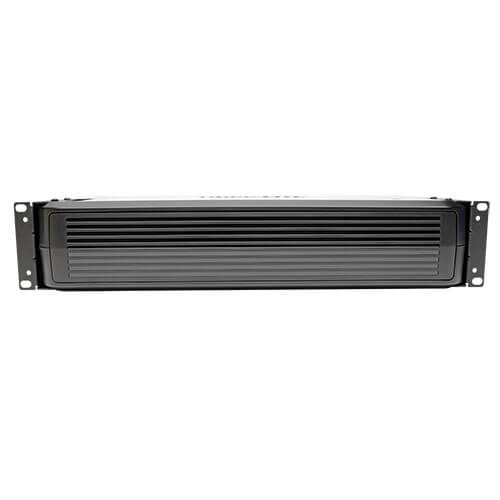

  • Included mounting brackets support upright tower and 2U rackmount installation in 2 or 4 post racks

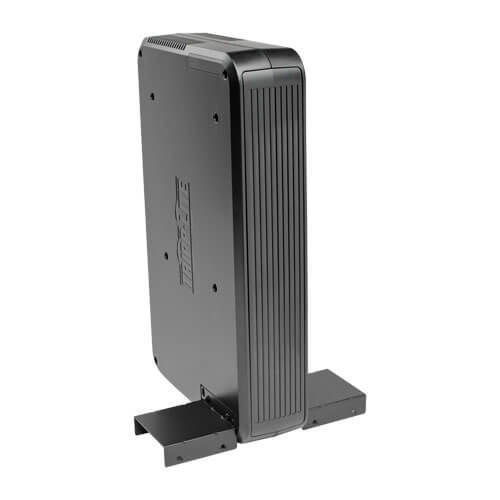

  • Included brackets also support upright tower installation
  • 2POSTRMKITWM option enables wallmount installation
  • NOTE: LIMIT OF 1 BP24V15RT2U PER UPS, SEE BP24V70-3U or BP24V36-2US FOR MULTI-PACK COMPATIBILITY



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Overview

UPC Code37332141538



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Input

Input PhaseSingle-Phase



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Battery

DC System Voltage (VDC)24
UPS ConnectionAttached 24VDC 75amp connector



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Physical

External Battery Pack Form FactorRack/Tower
Installation Form Factors Supported with Included Accessories4 post 19 inch rackmount; 2 post 19 inch rackmount; Tower
Installation Form Factors Supported with Optional AccessoriesWallmount ( 2POSTRMKITWM )
Minimum Required Rack Depth (inches)13.5
Optional Mounting Accessory Notes2POSTRMKITWM  enables wall-mount installation
Rack Height2U
Shipping Dimensions (hwd / in.)7.20 x 21.26 x 14.96
Shipping Weight (lbs.)27.02
Unit Dimensions (hwd / in.)3.49 x 17.33 x 10.68
Unit Weight (lbs.)24.31



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Standards & Compliance

CertificationsCE; RoHS



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Owner's Manual for BP Battery (Multi-language)Click to View
UPS Systems 230V Brochure (Chinese)Click to View
UPS 230V Brochure (English)Click to View
Integrated Solutions Brochure (English)Click to View
Tripp Lite UPS Battery Backup for Security Systems Flyer (English)Click to View
EC DeclarationClick to View
Elcam Inc. Case Study (English)Click to View
