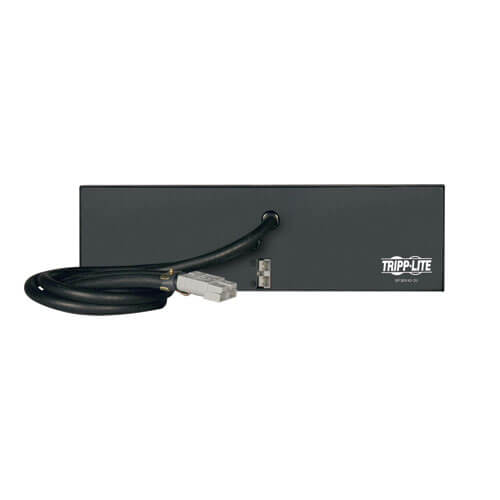

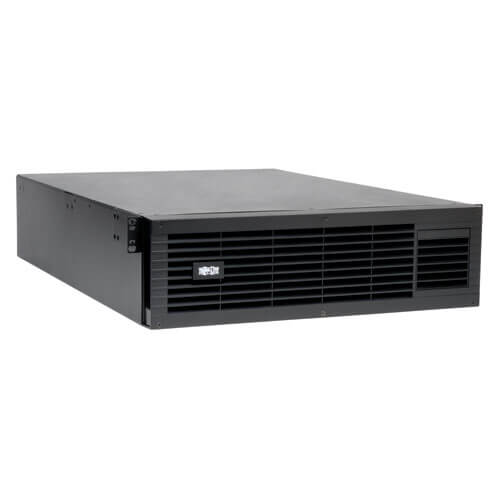

Tripp-Lite BP36V42-3U | External 36V 3U Rack/Tower Battery Pack for select Tripp Lite UPS Systems (BP36V42-3U)
Tripp-Lite BP36V42-3U | External 36V 3U Rack/Tower Battery Pack for select Tripp Lite UPS Systems (BP36V42-3U)

Tripp-Lite BP36V42-3U | External 36V 3U Rack/Tower Battery Pack for select Tripp Lite UPS Systems (BP36V42-3U)

Tripp-Lite External 36V Battery Pack
Part Number: 381521
0 Review(s)
Write a Review
Availability:
$2,820.81
Retail Price:$2,923.64
Your Savings:$102.83(4%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

BP36V42-3U rack/tower external battery pack offers extended battery runtime when used in conjunction with expandable 36V Tripp Lite rackmount and tower UPS systems. Includes heavy gauge cabling with high current DC connector for safe, simple installation. Included daisychain connector enables the connection of additional compatible 36V external battery packs to the host UPS. Included mounting accessories support 3U rackmount installation in 4 post racks. Options for 2 post center-mounting and upright tower installation available.

Compatible with these UPS Systems - SMART1000RMXL2U, SMART1200XLHG, SMART1500RMXL2UA, SMART1500RMXLN, SMART1500XL, SMX1200XLHG, SMX1500XLRT2U and other Tripp Lite UPS systems that specify the use of this battery pack.


https://www.alldataresource.com/assets/images_commscope/features.jpg

Features

  • Offers extended-run UPS operation when used in conjunction with compatible 36V DC Tripp Lite UPS systems
  • Includes heavy gauge cabling with high current DC connectors for simple installation
  • Daisychain connector enables the connection of additional compatible 36V external battery packs to the host UPS
  • Included mounting brackets support rackmount installation in 4 post racks using only 3 rack spaces (3U)
  • 2POSTRMKITHD option supports balanced 2 point center-mounting in 2 post equipment racks
  • 2-9USTAND option enables upright tower placement



https://www.alldataresource.com/assets/images_tripplite/overview.jpg

Overview

UPC Code37332123312



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Input

Input PhaseSingle-Phase



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Battery

Expandable Battery RuntimeIncludes a second input/output connector to daisy-chain multiple battery packs
Expandable RuntimeYes



https://www.alldataresource.com/assets/images_tripplite/physical_specifications.jpg

Physical

External Battery Pack Form FactorRack/Tower
Included Mounting Accessory DescriptionIncluded 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
Installation Form Factors Supported with Included Accessories4 post 19 inch rackmount
Installation Form Factors Supported with Optional Accessories2 post rackmount ( 2POSTRMKITWM ); Wallmount ( 2POSTRMKITWM )
Material of ConstructionSteel
Minimum Required Rack Depth (inches)31.5
Optional Mounting Accessory Notes2POSTRMKITWM  enables wall-mount and 2-post rackmount installation
Rack Height3U
Shipping Dimensions (hwd / in.)12.00 x 23.00 x 33.00
Shipping Weight (lbs.)185
Unit Dimensions (hwd / in.)5.25 x 17.5 x 25
Unit Weight (lbs.)174.1



https://www.alldataresource.com/assets/images_tripplite/warranty.jpg

Warranty

Product Warranty Period (U.S. & Canada)2-year limited warranty



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Installation Guide for Select Rackmount UPSClick to View
Owner's Manual for BP Series External Battery Packs (Multi-language)Click to View
UPS 230V Brochure (English)Click to View
Integrated Solutions Brochure (English)Click to View
UPS Systems 230V Brochure (Chinese)Click to View
EC Declaration 1. BP24V70-3U 2. BP72V28RT-3U, BP36V42-3UClick to View
Andover Public Schools Case Study - VoIP Network Protection (English)Click to View
