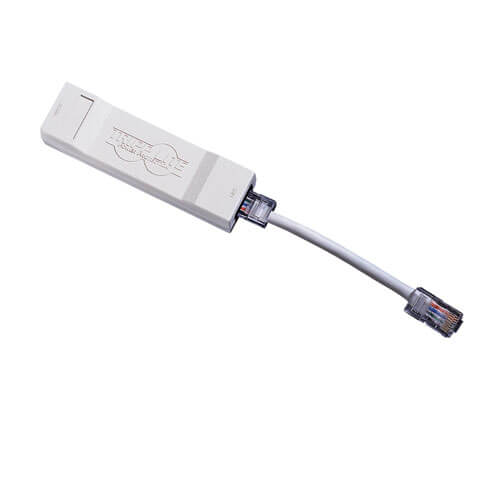

Tripp-Lite DNET1 | DataShield In-Line Surge Protector for Network and Phone Lines, 1-Line RJ45
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
Tripp Lite's DNET1 provides network Ethernet line surge suppression for 100Base-T, 10Base-T, Token Ring, AS400/Sys3x and RS422 applications. Surge suppression is handled with balanced arrays of high-speed avalanche diodes that divert excess energies created by electrostatic discharges away from network interface connections. Tripp Lite network surge suppressors reduce blown NIC cards, garbled network transmissions, system lock-ups and hard equipment failure by safely shunting dataline surges to ground. Convenient RJ45 input and output connections with an included 5-inch Ethernet patch cable enables ideal protection for network workstations, printers and other internetworking devices with a network connection.
Features
- DNET1 protects network workstations, printers and internetworking devices from surges present on 10/100Base-T, token ring, AS400/Sys3x or RS422 network lines
- Convenient RJ45 input and output connections make for simple installation (RJ45 input/output connections, pins 1-8, 7.5V clamping)
- 5 inch Ethernet patch cable enables ideal protection placed as close as possible to the point of use
- Surge suppression utilizing high speed avalanche diodes divert excess energies on the network to ground
- RoHS Compliance
- Lifetime Warranty
Special Features
| Rotatable Outlets | No |
|---|
Specifications
Specifications
Overview
| UPC Code | 37332011435 |
|---|
Input
| Nominal Input Voltage(s) Supported | 120V AC; 230V AC |
|---|---|
| Recommended Electrical Service | 120V, 230V |
| Input Plug Type | RJ45 |
| Input Cord Length (ft.) | 0 |
| Right-Angle Plug | No |
| Integrated Cord Clip | No |
Output
| Output Receptacles | (1) Network |
|---|---|
| Circuit Breaker (amps) | 750 |
User Interface, Alerts & Controls
| Diagnostic LED(s) | No |
|---|
Surge / Noise Suppression
| AC Suppression Joule Rating | 0 |
|---|---|
| Clamping Voltage (RMS) | 7.5 |
| Automatic Shut-Off | No |
Physical
| Color | Light Gray |
|---|---|
| Antimicrobial Coating | No |
| Integrated Keyhole Mounting Slots | No |
| Shipping Dimensions (hwd / in.) | 6.00 x 3.00 x 2.00 |
| Shipping Weight (lbs.) | 0.23 |
Communications
| Network Speed | 10/100 Mbps |
|---|
Warranty
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
|---|
Documents and Downloads
Documents and Downloads
- Owner's Manual for DataShield Surge Suppressors (Multi-language)
- Surge Protector & Power Strip Specification Brochure (English)
- Surge Protectors and Power Strips Brochure
- Tripp Lite Protects the Cisco TelePresence Experience Case Study - Cisco TelePresence Protection (English)
- Surge Protector Buying Guide
