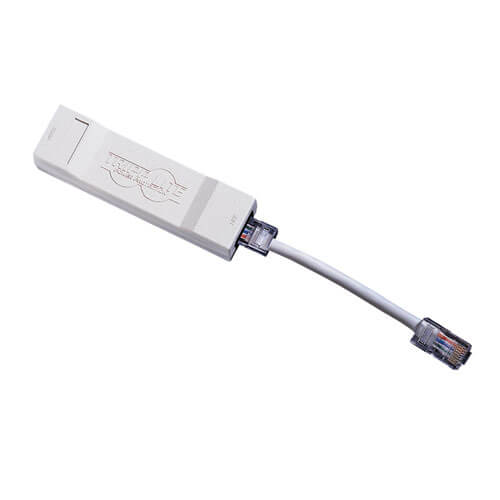

Tripp-Lite DSUT1CSU | DataShield In-Line Surge Protector for Networ...
Description
Description
Tripp Lite's DSUT1CSU offers complete surge suppression for equipment on digital and leased lines, T1 and ISDN interfaces. Ideal for the protection of sensitive "U" and "S/T" interfaces on modems, NT1 devices, CSU/DSUs, terminal adapters and other pieces of high-speed equipment. Convenient 8 position input/output RJ style jacks are RJ11/45/48 compatible, includes 5 inch ethernet patch cable for convenient placement at the protected device network connection. Surge suppression is handled with balanced arrays of high-speed avalanche diodes that divert excess energies created by electrostatic discharges away from network interface connections. Tripp Lite network surge suppressors reduce blown interface ports, garbled network transmissions, system lock-ups and hard equipment failure by safely shunting dataline surges to ground.
SUPPRESSION: 1 set RJ11/45/48 in/out jacks, protects wires 1-8, 60V clamping
Features
- DSUT1CSU offers full surge suppression for CSU/DSU's and other high speed equipment on digital and leased lines, T1 and ISDN interfaces
- Convenient RJ45 input and output connections make for simple installation (RJ45 input/output connections, pins 1-8, 60V clamping)
- 5 inch ethernet patch cable enables ideal protection placed as close as possible to the point of use
- Surge suppression utilizing high speed avalanche diodes divert excess energies on the network to ground
Special Features
| Rotatable Outlets | No |
|---|
Specifications
Specifications
Overview
| UPC Code | 37332010872 |
|---|
Input
| Nominal Input Voltage(s) Supported | 120V AC; 230V AC |
|---|---|
| Recommended Electrical Service | 120V, 230V |
| Input Plug Type | RJ45 |
| Input Cord Length (ft.) | 0 |
| Right-Angle Plug | No |
| Integrated Cord Clip | No |
Output
| Output Receptacles | (1) Network |
|---|---|
| Circuit Breaker (amps) | 200 |
User Interface, Alerts & Controls
| Diagnostic LED(s) | No |
|---|
Surge / Noise Suppression
| AC Suppression Joule Rating | 0 |
|---|---|
| Clamping Voltage (RMS) | 60 |
| Automatic Shut-Off | No |
Physical
| Color | Light Gray |
|---|---|
| Antimicrobial Coating | No |
| Integrated Keyhole Mounting Slots | No |
| Shipping Dimensions (hwd / in.) | 6.10 x 2.00 x 3.10 |
| Shipping Weight (lbs.) | 0.20 |
Communications
| Network Speed | 10/100 Mbps |
|---|
Warranty
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
|---|
Documents and Downloads
Documents and Downloads
- Owner's Manual for DataShield Surge Suppressors (Multi-language)
- Surge Protector & Power Strip Specification Brochure (English)
- Surge Protectors and Power Strips Brochure
- Tripp Lite Protects the Cisco TelePresence Experience Case Study - Cisco TelePresence Protection (English)
- Surge Protector Buying Guide
