Brand: Tripp-Lite
|
SKU:
9810310

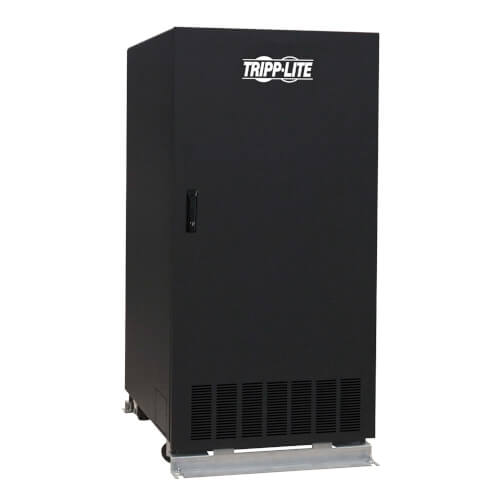

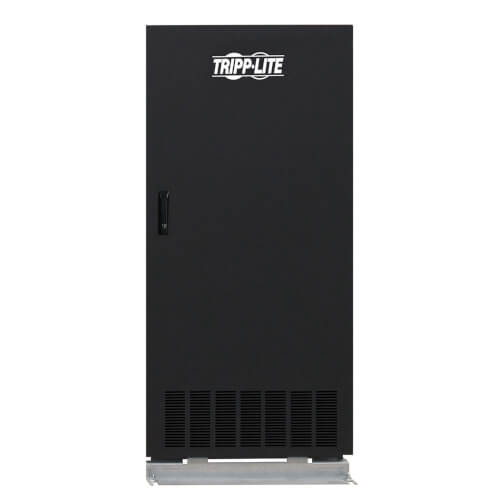

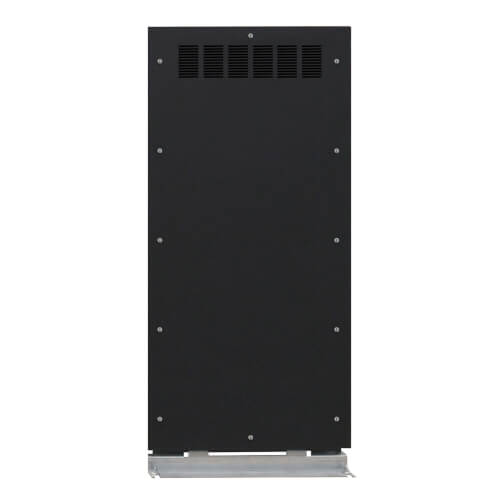

Tripp-Lite EBP240V5001 | UPS Battery Pack for SV-Series 3-Phase UPS, +/-120VDC, 1 Cabinet - Tower, TAA, Batteries Included
Regular price
$28,037.35
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Brand: Tripp-Lite
|
SKU:
9810310
Regular price
$28,037.35
Unit price
Shipping calculated at checkout.
Description
Description
External backup battery pack provides extended runtime for compatible Tripp Lite SV-Series 3-phase UPS systems.
Features
- UPS Battery Pack Extends the Runtime of Your SV-Series 3-Phase UPS System
- This external backup battery pack consists of one battery cabinet containing sealed lead acid batteries designed to give your Tripp Lite SV-Series UPS system more runtime. It uses a +/-120VDC configuration and must be hardwired to a compatible UPS system. Multiple battery packs may be connected in parallel to increase runtime even longer. A UL-listed DC circuit breaker protects against too much current. The EBP240V5001 is compatible with all Tripp Lite UPS models that begin with SV20, SV40, SV60, SV80, SV100, SV120 and SV140.
- Designed and Constructed to Ensure Consistent Power for a Long Time
- This 120V UPS battery pack is made from heavy-gauge welded steel with a baked powder-coated finish that protects the cabinet from chipping and corrosion. The hinged cabinet door locks to prevent tampering and to facilitate easy access to the internal batteries. User-supplied power output cables feed into the cabinet through conduit knockouts built into the cabinet’s exterior. Front and rear vents allow the free flow of warm air out of the cabinet to maintain cool internal temperatures. Sturdy metal casters allow you to smoothly roll the backup battery pack into position.
- TAA-Compliant for GSA Schedule Purchases
- The EBP240V5001 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Specifications
Specifications
Overview
| UPC Code | 37332225306 |
|---|
Input
| Input Phase | 3-Phase |
|---|
Battery
| Expandable Runtime | No |
|---|---|
| DC System Voltage (VDC) | +/- 120VDC |
Physical
| External Battery Pack Form Factor | Tower |
|---|---|
| Material of Construction | Steel |
| Shipping Dimensions (hwd / in.) | 64.50 x 29.00 x 31.50 |
| Shipping Weight (lbs.) | 2469 |
| Unit Dimensions (hwd / in.) | 59 x 29 x 31.5 |
| Unit Weight (lbs.) | 2389 |
Standards & Compliance
| Certifications | Tested to UL 1778 CSA C22.2 NO. 107.1 (USA), CSA (Canada), CE EN 62040-1-2:2003, EN 60950-1 |
|---|
Documents and Downloads
Documents and Downloads
- Owner's Manual for Extended-Run 3-Phase Battery Cabinet (Multi-language)
- UPS Battery Packs Visio Stencil
- UPS Battery Packs Visio Stencil Preview
- SmartOnline 3-Phase UPS System Brochure (English)
- BP192V787C-1PH BP240V787C-1PH BP240Vxxx Family BP240VxxxC Family BP240VxxxS Family BP240VxxxSC Family BP480VxxxKD Family BP480VxxxS Family BP480VxxxNB Family EBP240Vxxxx Family EBP240VxxxxNB Family EC Declaration
