Tripp-Lite ECO900UPSM | 900VA 480W Standby UPS - 12 NEMA 5-15R Outlets, 120V, 50/60 Hz, 5-15P Plug, ENERGY STAR, Desktop/Wall
Regular price
$230.61
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
Compact desktop UPS with silent alarm provides battery backup support for your home/office network system or digital signage components.
Features
- Energy-Saving 900VA/480W/120V Battery Backup for PCs, Home Theater and Digital Signage
- The standby ECO900UPSM UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The 12-outlet 120V battery backup is ideal protection for your home office, media center or professional kiosk, security and small-business phone applications, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems and digital signage equipment.
- Allows Time to Back Up Critical Files During a Blackout
- Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the ECO900UPSM should keep an energy-efficient desktop computer with small LCD monitor powered as long as 40 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will always be available.

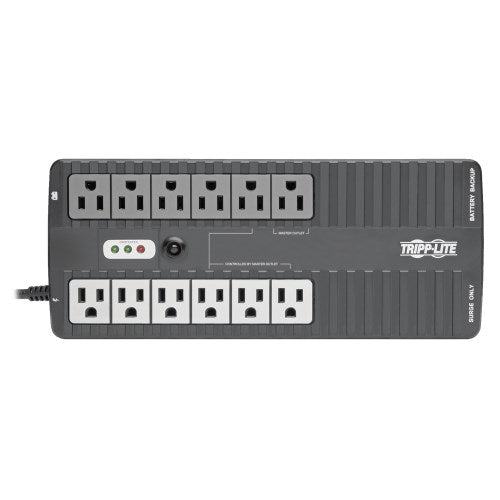

- 12 NEMA 5-15R Outlets Protect Your Connected Components
- Six 5-15R outlets provide battery backup and surge protection for your computer, monitor and other crucial component. The other six 5-15R outlets provide surge suppression only for printers, speakers and other desktop equipment regarded as non-essential during a blackout.
- ENERGY STAR-Certified to Help You Save Money and Protect the Environment
- By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money and energy. An ECO power-saving option features four switched ECO outlets (three surge-only, one surge- and battery-protected) that turn off automatically when the device connected to the Battery Backup Master Outlet is powered down or in sleep mode. These outlets are recommended for printers, desk lamps and other non-essential peripherals that don’t need to be operational all the time.
- 316 Joules Fight Back Against Unexpected Power Surges
- A 316-joule surge suppression rating protects connected components from the harmful effects of power surges. Dual network data line jacks protect a wired peripheral from dangerous surges on a single 10/100Base-T or dial-up network connection.
- HID-Compliant USB Port Allows for Automatic Saves and Shutdowns
- This USB port connects the ECO900UPSM to a computer running Tripp Lite’s free downloadable PowerAlert software to enable safe unattended file saves and system shutdown in case of a prolonged power failure. USB cable is included.
- Combats Electromagnetic Interference That Can Harm Equipment
- Various electromagnetic and radio sources found in virtually every home and business can cause disruptive interference on the AC line. Known as EMI (electromagnetic interference) and RFI (radio frequency interference), this line noise is a common cause of performance problems and can lead to incremental hardware damage, data corruption and audio/video transmission problems. The ECO900UPSM incorporates technology that filters out disruptive line noise so that it won’t affect your equipment.
- Home-Friendly Alarm and Diagnostic LEDs Keep You Informed 24/7
- The UPS remains silent in both line and battery backup modes. The alarm sounds only to warn you of a low battery, overload or fault condition. Front-panel LEDs indicate operating mode, ECO mode, battery condition and fault status.

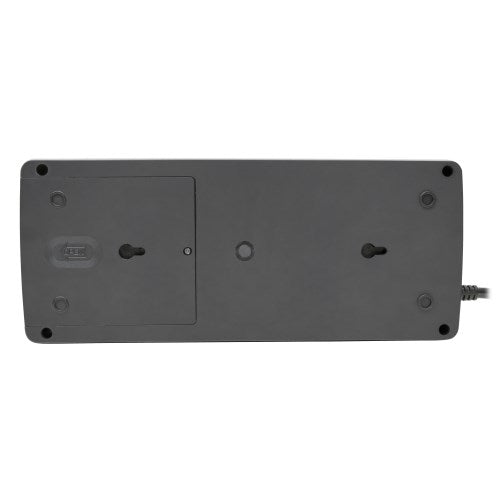

- Compact Housing Compatible with Easy Desktop or Wall-Mount Installation
- The space-saving ABS housing fits on a desktop, shelf or anywhere else convenient to your workstation or home theater. Keyhole mounting tabs on the rear allow easy wall-mount installation. The five-foot power cord with NEMA 5-15P plug connects to any compatible AC outlet.
Special Features
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
|---|---|
| High Availability UPS Features | Surge/noise protection |
| Green Energy-Saving Features | Greater than 95% efficiency - GREEN UPS; Power saving auto-shutoff ECO outlets |
Specifications
Specifications
Overview
| UPC Code | 37332211125 |
|---|---|
| UPS Type | Standby |
Input
| Rated input current (Maximum Load) | 10A |
|---|---|
| Nominal Input Voltage(s) Supported | 120V AC |
| UPS Input Connection Type | 5-15P |
| Input Circuit Breakers | 10A |
| UPS Input Cord Length (ft.) | 6 |
| Recommended Electrical Service | 15A 120V |
| Input Phase | Single-Phase |
Output
| Output Volt Amp Capacity (VA) | 900 |
|---|---|
| Output Watt Capacity (Watts) | 480 |
Battery
| Battery Type | Valve Regulated Lead Acid (VRLA) |
|---|---|
| Full Load Runtime (min.) | 1.7 min. (480w) |
| Half Load Runtime (min.) | 7.8 min. (240w) |
| Expandable Runtime | No |
| DC System Voltage (VDC) | 12 |
| Battery Recharge Rate (Included Batteries) | 8 hours (10% to 90%) |
| Battery Access | Battery access door |
| Internal UPS Replacement Battery Cartridge | RBC51 |
| Battery Replacement Description | Replaceable internal batteries (see manual) |
User Interface, Alerts & Controls
| Switches | UPS remains silent in battery backup mode; Alarm sounds only to report low-battery, fault, overload and replace-battery conditions |
|---|---|
| Audible Alarm | Alarm reports low-battery, fault, overload and replace battery conditions |
| LED Indicators | 3 Status LEDs; GREEN #1 LED reports ECO mode off/on status; GREEN #2 LED reports line/battery mode operation, low-battery condition, overload and replace-battery notifications; RED LED reports battery-low, overload, replace-battery and fault conditions (see manual) |
Physical
| Installation Form Factors Supported with Included Accessories | Tower; Ultra-compact desktop; Wallmount |
|---|---|
| Primary Form Factor | Desktop |
| Primary UPS Depth (mm) | 310 |
| Primary UPS Height (mm) | 85 |
| Primary UPS Width (mm) | 130 |
| Shipping Dimensions (hwd / in.) | 7.83 x 5.98 x 14.92 |
| Shipping Weight (lbs.) | 7.48 |
| UPS Housing Material | Plastic |
| UPS Power Module Dimensions (hwd, in.) | 3.35 x 5.12 x 12.2 |
| UPS Power Module Weight (kg) | 3.09 |
| UPS Power Module Weight (lbs.) | 6.82 |
Environmental
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
|---|---|
| Storage Temperature Range | +5 to +113 degrees Fahrenheit / -15 to +45 degrees Celsius |
| Relative Humidity | 0 to 90%, non-condensing |
Communications
| PowerAlert Software | For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at https://www.tripplite.com/poweralert |
|---|---|
| Communications Cable | USB interface cable included |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| Network UPS Tools Compatibility | Communications Interface |
Line / Battery Transfer
| Transfer Time | 6 milliseconds typical (10 milliseconds max) |
|---|---|
| Low Voltage Transfer to Battery Power (Setpoint) | 95 |
| High Voltage Transfer to Battery Power (Setpoint) | 145 |
Standards & Compliance
| UPS Certifications | ENERGY STAR Qualified; Meets FCC Part 15 Category B (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA) |
|---|---|
| Certification Details | UL1778: 2014 5th EDITION; CAN/CSA-C22.2 NO. 107.3:2014 3rd EDITION; FCC CLASS B; FCC Part 68 Approved (#5WSWP01B005); Industry Canada Approved (#3449A-005, REN0.1B); RETIE (Colombia) |
Warranty
| Product Warranty Period (U.S. & Canada) | 3-year limited warranty |
|---|---|
| Connected Equipment Insurance (U.S., Canada & Puerto Rico) | $100,000 Ultimate Lifetime Insurance |
