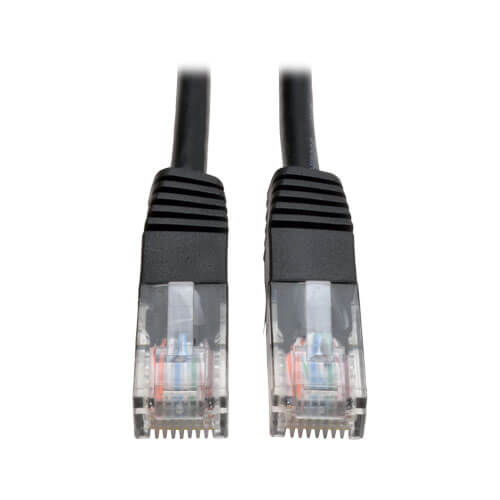

Tripp-Lite N002-007-BK | Cat5e 350 MHz Molded (UTP) Ethernet Cable (RJ45 M/M) - Black, 7 ft. (2.13 m)

Tripp Lite's 7-ft. (2.13 m) black category 5e (Cat5e) patch cable has 2 standard RJ45 molded male connectors featuring integral strain relief. The cable is manufactured from PVC 4-pair stranded UTP and is rated for 350MHz/1Gbps communication. All cables are offered in a variety of lengths and colors for all category 5 (Cat5) and 5e cabling needs. Snagless category 5e patch cables are also available.

Features

• Cabling for category 5 (Cat5) and 5e (Cat5e) applications
• Length: 7-ft. (2.13 m) Color: black Connectors: RJ45 male
• Feature molded connectors with integral strain relief
• PVC 4-pair stranded UTP
• Rated for 350MHz/ 1Gbps communication
• Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 5e draft 11)
• Available in other colors and lengths
• Also available in a snagless design (N001 series) to protect the locking tabs on the RJ45 connectors from being damaged or snapped off during installation.
• Also available - Cat6 cables (N201 series)

Overview

UPC Code	37332012746
Technology	Cat5/5e

Physical

Color	Black
Cable Shielding	UTP
Cable Jacket Material	PVC
Cable Jacket Rating	CM
Cable Outer Diameter (OD)	5.0mm
Number of Conductors	4 Pair
Conductor Material	Stranded Copper
Conductor Gauge	26 AWG
Cable Length (ft.)	7
Cable Length (in.)	84
Shipping Dimensions (hwd / in.)	7.00 x 9.00 x 0.50
Shipping Weight (lbs.)	0.17

Communications

Bandwidth per TIA Standard	100 MHz
Maximum Bandwidth as Tested	350 MHz

Connections

Side A - Connector 1	RJ45 (MALE)
Side B - Connector 1	RJ45 (MALE)
Crossover Wiring	No
Contact Plating	Gold
Connector Type	Molded
Wiring Configuration	EIA/TIA 568B

Special Features

IP68 Rated	No
Antibacterial	No

Warranty

Product Warranty Period (Worldwide)

Lifetime limited warranty
