Tripp-Lite PDU1215 | 1.8kW Single-Phase 120V Basic PDU, 13 NEMA 5-15R Outlets, NEMA 5-15P Input, 15 ft. (4.57 m) Cord, 1U Rack-Mount
Tripp-Lite PDU1215 | 1.8kW Single-Phase 120V Basic PDU, 13 NEMA 5-15R Outlets, NEMA 5-15P Input, 15 ft. (4.57 m) Cord, 1U Rack-Mount

Need more information about this product?

Tripp-Lite PDU1215 | 1.8kW Single-Phase 120V Basic PDU, 13 NEMA 5-15R Outlets, NEMA 5-15P Input, 15 ft. (4.57 m) Cord, 1U Rack-Mount

Tripp-Lite Power Distribution Unit
Part Number: TRL-PDU1215
0 Review(s)
Write a Review
Availability:
$100.80
Retail Price:$110.88
Your Savings:$10.08(9%)
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

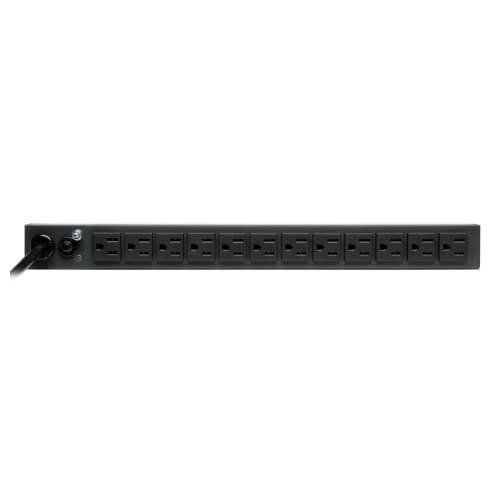

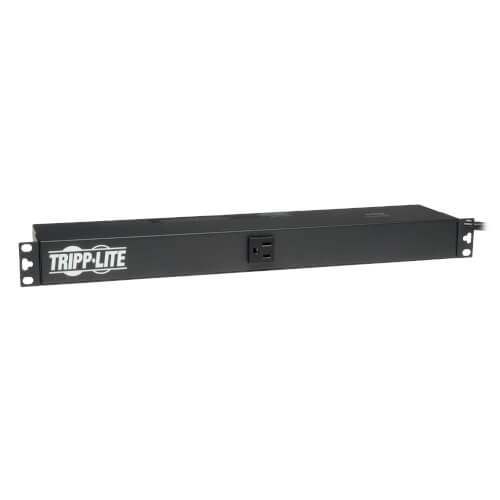

The PDU1215 1.8kW Single-Phase 120V Basic PDU is the perfect no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Perfectly suited for high-density IT environments, the PDU1215 features a single breakered load bank with 13 NEMA 5-15R outlets—12 in the rear and one in front. The NEMA 5-15P input plug with long 15-ft. (4.57 m) cord connects to your facility's compatible AC power source, generator or protected UPS to distribute power to connected equipment.

The switchless design prevents an accidental shutdown, which could lead to costly downtime. A 15A circuit breaker protects connected equipment from dangerous overloads. The reversible all-metal housing mounts in 1U of space in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter. With a compatible rack and Tripp Lite's PDUSIDEBRKT accessory (sold separately), you can adapt the PDU1215 for vertical 0U rack-mounting.


https://www.alldataresource.com/assets/images_commscope/features.jpg

Features

  • Reliable Single-Phase Power Distribution
  • Ideal no-frills PDU for networking, telecom, security, audio/video and sound reinforcement applications
  • 13 NEMA 5-15R outlets in one breakered load bank
  • 15A circuit breaker protects outlets against overloads

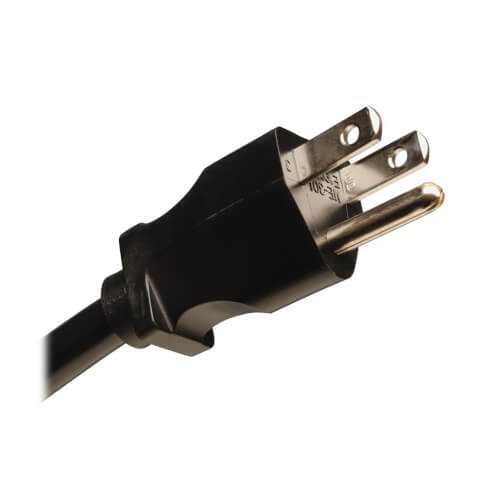

  • NEMA 5-15P input plug with 15-ft. (4.57 m) cord
  • Rear-panel grounding lug
  • Switchless Design
  • Prevents accidental shutdowns and costly downtime
  • Versatile Installation Options
  • Mounts horizontally in 1U of EIA-standard 19 in. 2- and 4-post racks
  • Reversible all-metal housing faces front or rear in rack
  • Ready for toolless 0U vertical installation with optional PDUSIDEBRKT (sold separately)
  • Also mounts on wall, workbench or under a counter



https://www.alldataresource.com/assets/images_tripplite/overview.jpg

Overview

UPC Code37332116727
PDU TypeBasic



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Input

PDU Input Voltage120V
Recommended Electrical ServiceSingle-phase 15A 120V service
Maximum Input Amps15
PDU Plug TypeNEMA 5-15P
Input PhaseSingle-Phase
Input Cord Length (ft.)15



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Output

Output Capacity Details1.8kW (120V) / 15A total capacity; 12A max per 5-15R outlet
Frequency Compatibility50 / 60 Hz



https://www.alldataresource.com/assets/images_commscope/specs.jpg

User Interface, Alerts & Controls

SwitchesNo power switch



https://www.alldataresource.com/assets/images_tripplite/physical_specifications.jpg

Physical

Form Factors Supported1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported
Material of ConstructionMetal
Minimum Required Rack Depth (inches)7.5



https://www.alldataresource.com/assets/images_commscope/features.jpg

Special Features

TVSS GroundingBack panel grounding lug



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Standards & Compliance

CertificationsTested to UL1363 5TH Edition, CAN/CSA-22.2 No. 308-14



https://www.alldataresource.com/assets/images_tripplite/warranty.jpg

Warranty

Product Warranty Period (Worldwide)5-year limited warranty



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Owner's Manual for PDU Power StripsClick to View
Single Phase Power Distribution Units (PDUs) Visio StencilClick to View
Single-Phase Power Distribution Units (PDUs) Stencil PreviewClick to View
PDU1215 & PDU121506 Submittal DrawingClick to View
PDU1215 BIM Object DownloadClick to View
230V Power Distribution Unit (PDU) Brochure (English)Click to View
Integrated Solutions Brochure (English)Click to View
120V Power Distribution Unit (PDU) Models and Specifications List (English)Click to View
120V Power Distribution Unit (PDU) Brochure (English)Click to View
Storm Season is Here Again Flyer (English)Click to View
PDU Buying GuideClick to View
PDU Installation OptionsClick to View
Custom Products from Tripp Lite Are One Call AwayClick to View
Outlet Plug TypesClick to View
7 Steps to Choosing the Right Single-Phase or 3-Phase PDUClick to View
PDU TypesClick to View
