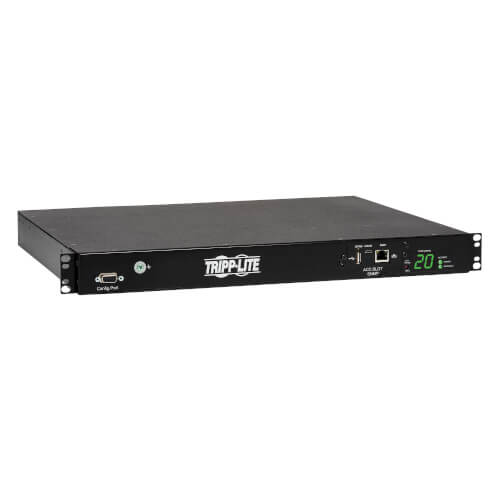

Tripp-Lite PDUMH20HVATNET | 3.8kW Single-Phase Switched Automatic Transfer Switch PDU, Two 200-240V C20 Inlets, 8 C13 & 2 C19 Outputs, 1U, TAA

Features

• 200-240V 20A Automatic Transfer Switch (ATS) / Switched PDU (Agency de-rated to 16A continuous)
• Enables redundant A/B power option for single-corded network devices
• 2 digit display reports power consumption in amps
• 1U horizontal rackmount form factor
• 10 outlets (8 C13 switched / 2 C19 unswitched)
• Set of Plug-lock output power cable retention sleeves prevent accidental disconnection of connected devices
• Two C20 inlets for separate Primary and Secondary inputs; two 12 ft / 3.7m C20 input cables included
• ATS circuits normally maintain output sourced from the primary input cable; As primary input power fails, the ATS will switch to maintain output sourced from the secondary input cable until power on the primary input is restored and stable
• ATS configurations enable hot-swappable UPS protection when used with a single UPS and redundant UPS protection when each cord is connected to a separate UPS system (in a two-UPS environment, the primary input cable must be supported by an online UPS with zero transfer time)
• Advanced ATS configurations utilizing separate mains circuits, backup generators and separate out of phase utility power grid feeds are supported
• On-board ATS processor constantly evaluates power quality on both inputs to prevent transfer to the secondary source when unavailable or of lower quality than the primary source
• 2-7 millisecond transfer time
• Switched outlets and ethernet interface supports individual outlet control on a real-time or programmable basis and user-specified alarm notification thresholds for all reported site power conditions
• LX Platform interface allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
• Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
• Outlets are factory programmed for sequential turn-on at 250 millisecond intervals when the PDU is first energized
• LEDs confirm power availability on both input lines and for each output receptacle
• Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
