Brand: Tripp-Lite
|
SKU:
454425

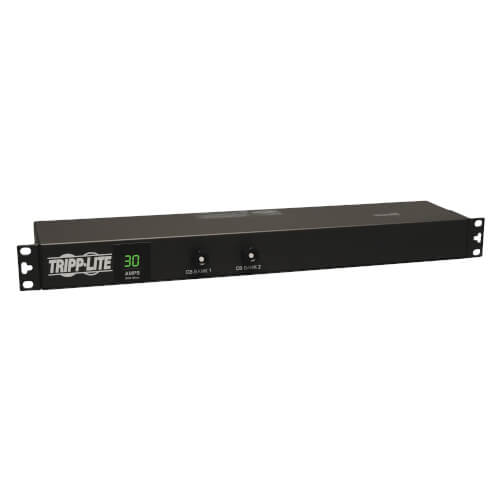

Tripp-Lite PDUMH30 | 2.9kW Single-Phase Metered PDU, 120V Outlets (12 5-15/20R), L5-30P, 15 ft. (4.57 m) Cord, 1U Rack-Mount
Regular price
$578.52
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite PDUMH30 | 2.9kW Single-Phase Metered PDU, 120V Outlets (...
Regular price
$578.52
Unit price
Brand: Tripp-Lite
|
SKU:
454425
Regular price
$578.52
Unit price
Description
Description
Tripp-Lite PDUMH30 | 2.9kW Single-Phase Metered PDU, 120V Outlets (12 5-15/20R), L5-30P, 15 ft. (4.57 m) Cord, 1U Rack-Mount
Features
- 30A single phase 120V Metered Power Distribution Unit / PDU (Agency derated to 24A continuous)
- Two-digit lighted meter reports total PDU input current in amps
- Attached L5-30P 30A 120V input plug with 15-ft. (4.57 m) line cord
- 1U horizontal rackmount format installs in one rack space
- 12 NEMA 5-15/20R outlets
- Outlets are arranged in two loading banks, each with separate 20A breaker protection
- Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
- Mounting ears are reversible for front or rear facing rackmount installation
- Back panel grounding lug
Special Features
| TVSS Grounding | Rear grounding lug |
|---|
Specifications
Specifications
Highlights
- Metered single phase 24A 120V 1U horizontal rackmount PDU
- Two-digit current meter reports total PDU input current in amps
- Attached 15-ft. (4.57 m) cord with NEMA L5-30P input plug
- 12 NEMA 5-15/20R outlets
- Reversible housing, 6.5 in. / 16.5cm depth
Package Includes
- PDUMH30 Metered rackmount PDU
- Owner's manual with warranty information
Overview
| UPC Code | 37332157676.0 |
|---|---|
| PDU Type | Metered |
Input
| PDU Input Voltage | 120V |
|---|---|
| Recommended Electrical Service | Single-phase 30A 120V service |
| Maximum Input Amps | 24 |
| Maximum Input Amps Details | Agency de-rated to 24A continuous |
| PDU Plug Type | NEMA L5-30P |
| Input Phase | Single-Phase |
Output
| Output Capacity Details | 2.88kW (120V) / 24A total capacity; 20A max per breakered load bank; 16A max per outlet |
|---|---|
| Frequency Compatibility | 50 / 60 Hz |
| Output Receptacles | (12) 5-15/20R |
| Output Nominal Voltage | 120V |
| Overload Protection | Two 20A breakers protect 6 outlets each |
User Interface, Alerts & Controls
| Front Panel LCD Display | Two digit current meter reports PDU input current in amps |
|---|---|
| Switches | - |
Physical
| Form Factors Supported | 1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation |
|---|---|
| Material of Construction | Metal |
Environmental
| Operating Temperature Range | 0C ~ 40C (32F ~ 104F) |
|---|---|
| Storage Temperature Range | -30°C to +50°C (-22°F to +122°F) |
| Relative Humidity | 5 to 95% non-condensing |
Standards & Compliance
| Certifications | Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada); RoHS Compliant |
|---|
Warranty
| Product Warranty Period (Worldwide) | 2-year limited warranty |
|---|
